Read this manual. Understand all safety and operating instructions. Failure to comply
with the warnings and instructions may result in serious injury, illness or death.
MARK 7® RELOADING PRIMER XPRESS USER MANUAL VERSION 1.0, COPYRIGHT
ALL RIGHTS RESERVED
Mark 7® Primer Xpress
User Manual
v 1.0
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Primer Xpress and is the answer not in the manual?

Questions and answers

Summary of Contents for Mark 7 Primer Xpress

  • Page 1 1.0 Read this manual. Understand all safety and operating instructions. Failure to comply with the warnings and instructions may result in serious injury, illness or death. MARK 7® RELOADING PRIMER XPRESS USER MANUAL VERSION 1.0, COPYRIGHT ALL RIGHTS RESERVED...

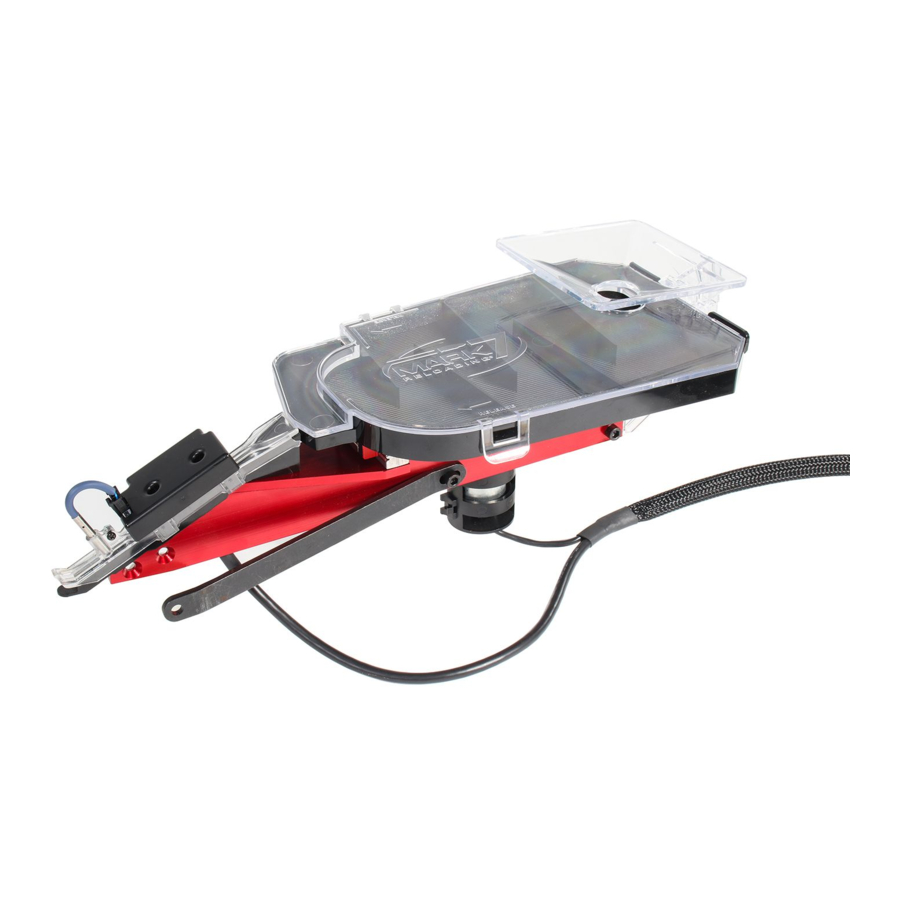

  • Page 2 Mark 7’s Automated Primer Xpress is a totally new, patent pending technology which provides nearly 100% successful primer orientation for your loading machine. This completely unique design features an oscillating primer reservoir which effortlessly orients primers and allows continuous primer feeding. No more stopping your machine to reload primers using clumsy tubes! Simply add more primers into the built-in funnel without interruption to your loading operation.
  • Page 3 Two versions of the Primer Xpress are offered. One for the APEX-10 and one for Evolution presses. • Primer Xpress for APEX-10 includes fully assembled Primer Xpress unit with wiring harness, control box, power adapter, steel safety shield and mounting hardware.
  • Page 4 Assembly APEX-10 Press 1) Following the APEX-10 press instructions, remove the tool head and shell plate from your press. Figure 1. Priming Tube Assembly removal Mark 7® Reloading Primer Xpress User Manual version 1.0, Copyright All rights reserved...
  • Page 5 Figure 2. Primer Tube Assembly component removal 3) Remove the plastic insert (201-1428) from the slot in the shuttle housing and remove the plastic primer disc cover (201-1403). MARK 7® RELOADING PRIMER XPRESS USER MANUAL VERSION 1.0, COPYRIGHT ALL RIGHTS RESERVED...
  • Page 6 Figure 3. Primer Xpress exploded view 4) Place the Primer Xpress primer chute in the slot in the shuttle primer housing where the insert (201-1428) was removed. Make sure it is fully seated in the slot. Attach the chassis (101-1183) to the shuttle housing using the supplied mounting screws (301- 1273).
  • Page 7 7) Attach the plugs from the wiring harness into the receptacles in the back of the control box marked Motor and Sensors. 8) Plug the power adapter into the receptacle in the back of the control box marked DC12V. MARK 7® RELOADING PRIMER XPRESS USER MANUAL VERSION 1.0, COPYRIGHT ALL RIGHTS RESERVED...
  • Page 8 Note: the shuttle disk priming assembly has the small primer disk installed when received. If you want to use large primers, first change the primer punch, primer punch bushing and the shuttle disk following the instructions titled “Primer Size Change”. Mark 7® Reloading Primer Xpress User Manual version 1.0, Copyright All rights reserved...
  • Page 9 5) Remove the plastic insert from the slot in the shuttle housing. 6) Place the Primer Xpress primer chute in the slot in the shuttle primer housing where the insert was removed. Make sure it is fully seated in the slot. Attach the chassis to the shuttle housing using the supplied mounting screws.
  • Page 10 Figure 6. Primer Xpress exploded view on Evolution Mark 7® Reloading Primer Xpress User Manual version 1.0, Copyright All rights reserved...
  • Page 11 4) Remove the 2 screws holding the body of the priming mechanism to the press frame and the 1 screw connecting the link arm from the press to the primer mechanism. Be careful not to lose the bushing in the link arm. MARK 7® RELOADING PRIMER XPRESS USER MANUAL VERSION 1.0, COPYRIGHT ALL RIGHTS RESERVED...
  • Page 12 Be sure to also install the correct size primer punch bushing and primer disk. 7) Change the primer tube installed inside the blast shield. Mark 7® Reloading Primer Xpress User Manual version 1.0, Copyright All rights reserved...
  • Page 13 Off position. The auto light will be on when the unit is running and the start and stop sensors are working. MARK 7® RELOADING PRIMER XPRESS USER MANUAL VERSION 1.0, COPYRIGHT ALL RIGHTS RESERVED...
  • Page 14 Note: large and small primers will need different settings for the sensor height. Sometimes even different brand primers of the same size may require sensor adjustment. Adjust height Loosen Figure 10. Primer Orientation Sensor Mark 7® Reloading Primer Xpress User Manual version 1.0, Copyright All rights reserved...
  • Page 15: Troubleshooting

    Troubleshooting • The Primer Xpress should be level side to side. If not level, adjust the press feet to correct this. • If primers settle on one side of the hopper and do not move down the guides, the press feet may need to be lowered slightly on the opposite side of where the primers settle.
