Case Feeder Adapter and Drop Tube Assy installation
Install the Case Feed Adapter with shoulder screw and socket cap screw provided to the Case Feed
Upper Housing. The Case Feed Adapter is designed to rotate out 90 degrees for quick removal of cases
in the Drop Tube assy.
12
Mark 7® Reloading EVOLUTION User Manual version 2.0, Copyright 2020
All rights reserved

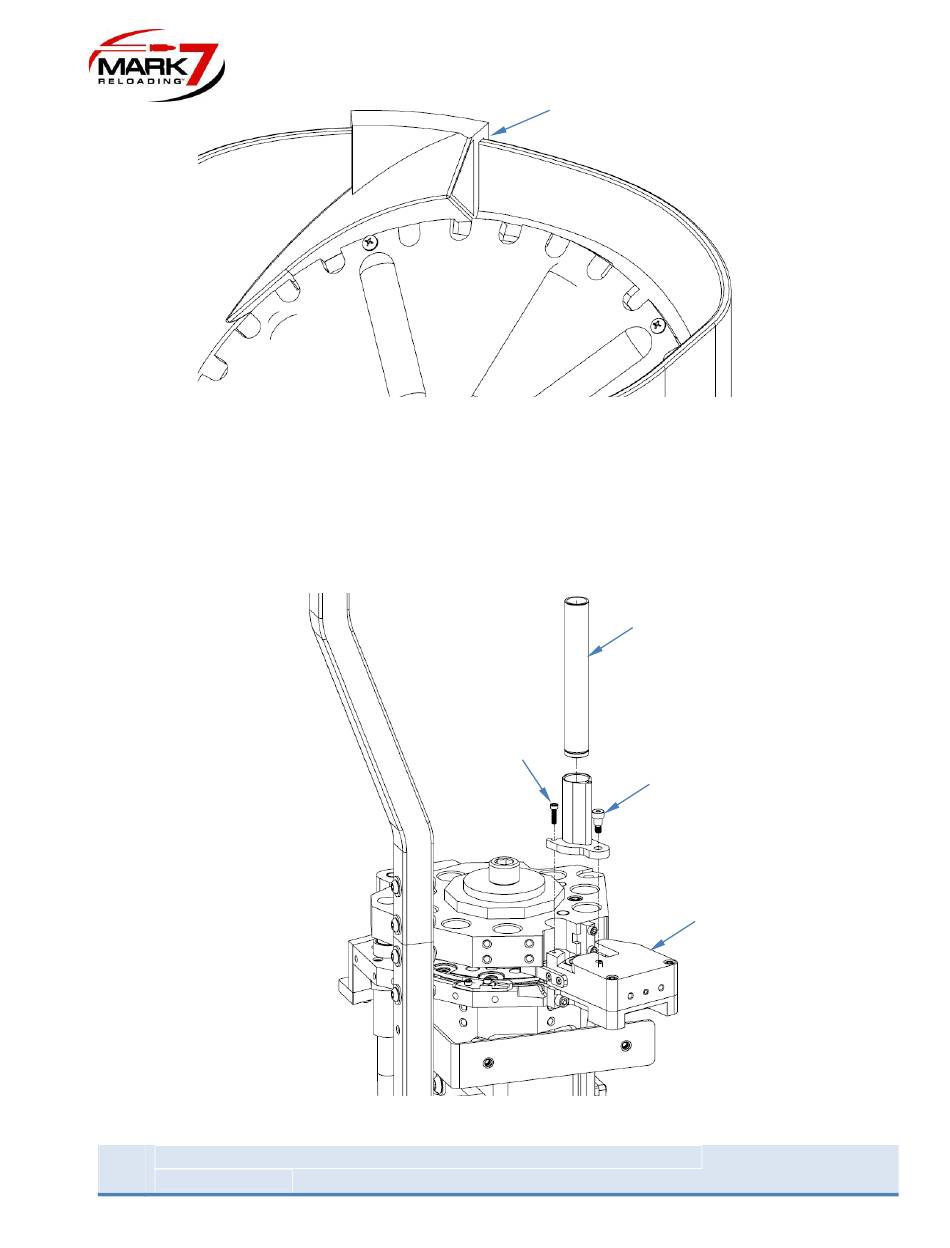

Figure 8: Case Feeder with Case Feeder Ramp installed
Socket Cap Screw
Figure 9: Case Feed Adapter installation.
Case Feeder Ramp
Drop Tube (O-Ring End goes into Adapter)
Shoulder Screw
Case Feed Adapter
