Handle Installation and Workbench Mounting

Next determine the location to mount the Main Unit. We recommend you install the Handle first and
lower the Tool Head to the down position to make sure the Handle clears the leading edge of the bench.
The Handle can be installed on either the right side or left side of the press. Insert Main Shaft Crank Key
into Main Shaft key slot as shown in Figure 3. Slide Shaft Handle Adapter over Crank Key and Main
Shaft. Lock in place with the Set Screws (2X.) Insert the Handle Assy into Handle Adapter and secure in
position with the Set Screw.
Main Shaft Crank Key
Position the press so the handle, while tool head is in the bottom position, does not contact the leading
edge of the workbench. Using the machine as a template mark the 4-hole locations. For reference the
MARK 7® RELOADING EVOLUTION USER MANUAL VERSION 2.0, COPYRIGHT 2020
ALL RIGHTS RESERVED
Set Screw (2X)
Main Shaft
(2x)

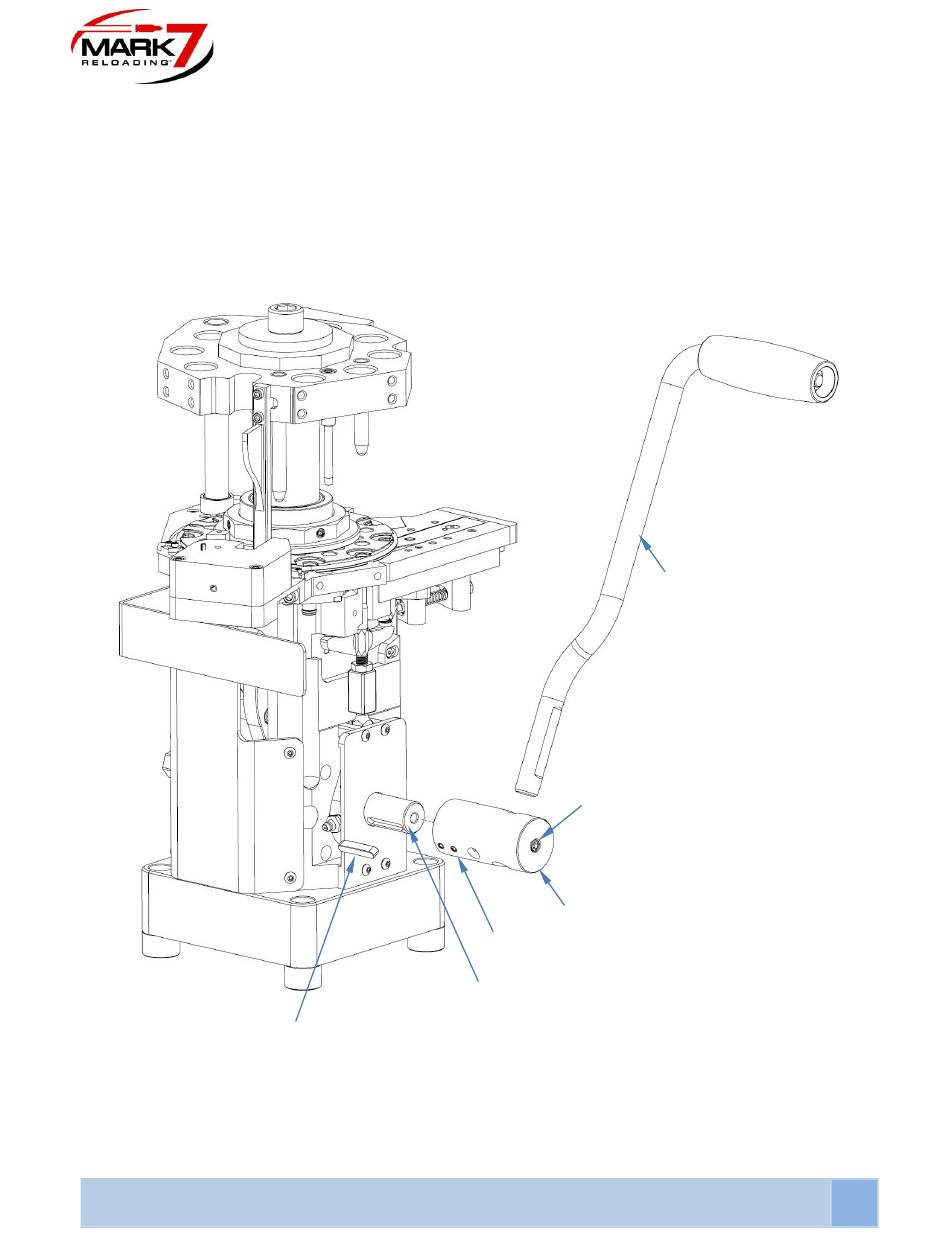

Figure 3: Installing Handle Assy
Handle
Set Screw
Handle Adapter
