Place the Case Feeder with Caliber Plate onto Case Feed Pole Upper and slide it down until it is fully
seated. Insert the Caliber Plate into the bowl as shown below. There are 4 Caliber Plates SM P (Small
Pistol), LG P (Large Pistol), SM R (Small Rifle), LG R (Large Rifle.) Confirm the correct plate is included with
the machine caliber.
10 Mark 7® Reloading EVOLUTION User Manual version 2.0, Copyright 2020
All rights reserved

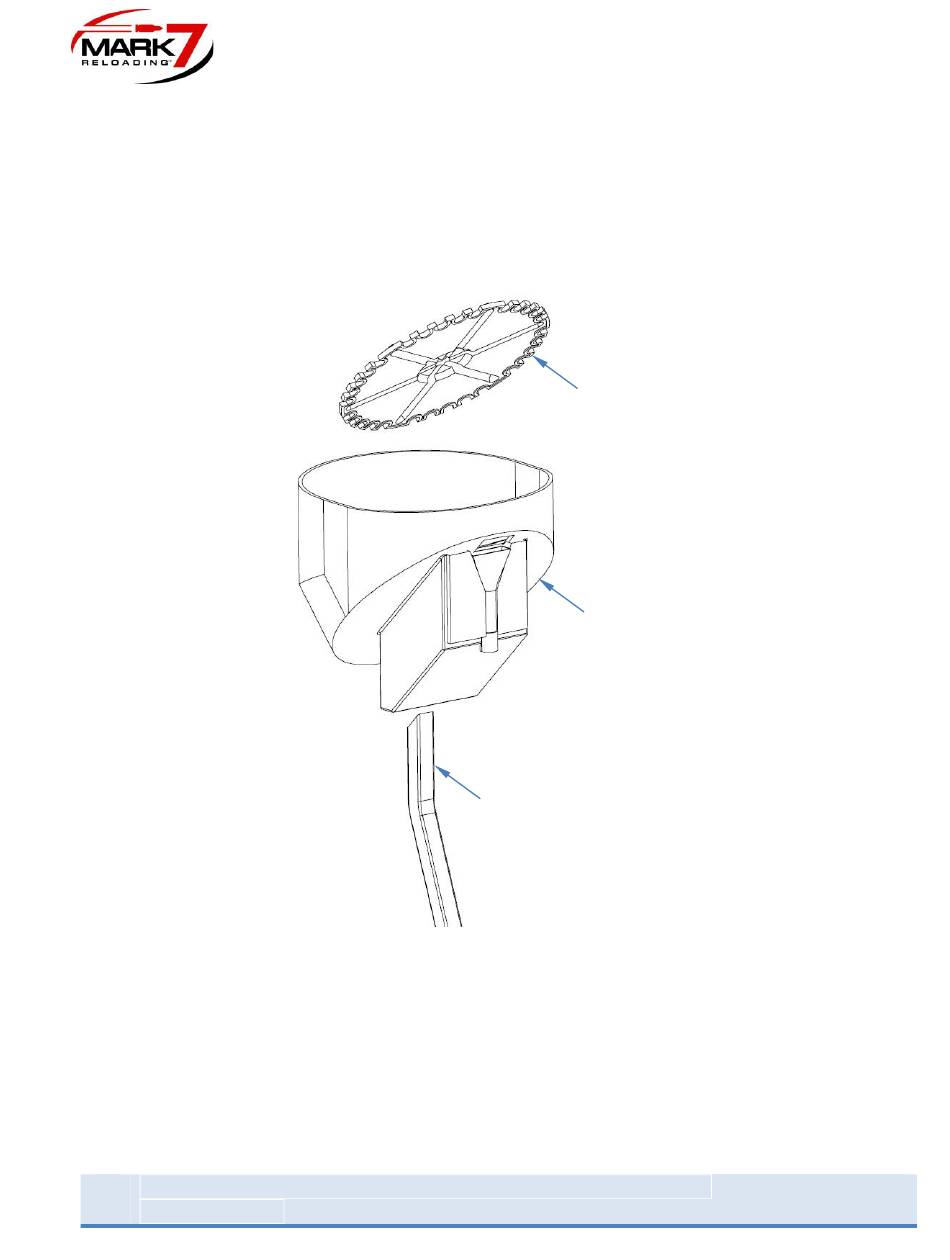

Figure 6: Installing the Case Feeder with Caliber Plate
Caliber Plate
)
Case Feeder
)
Case Pole Upper
)
