Unpacking instructions

TM
Remove the Evolution
WARNING - The Evolution is shipped with the Tool Head in the down position secured with a
zip tie. The Tool Head is spring loaded with a heavy-duty spring. Before cutting the zip-tie
place an 11/16" wrench on the Main Shaft to secure the Main Unit and gently raise the Tool Head after
the zip tie has been cut.
Wrench Interface
Main Shaft
Once the main unit is unpacked and placed on a workbench the Evolution
fitted with the accessories. We recommend the following setup order:
1. Installing Base Plate Feet ........................................................................................................ page 6
2. Handle Installation and Workbench Mounting ...................................................................... page 7
3. Case Feeder Installation ......................................................................................................... page 9
4. Installing Case Feeder Spring Flipper Assy ........................................................................... page 11
5. Case Feeder Adapter and Drop Tube Assy ........................................................................... page 12
6. Installing Primer Tube Stack Assy and Low Primer Alarm ................................................... page 14
7. Powder Measure Installation ................................................................................................ page 16
MARK 7® RELOADING EVOLUTION USER MANUAL VERSION 2.0, COPYRIGHT 2020
ALL RIGHTS RESERVED
Main Unit and place on a clean work surface.

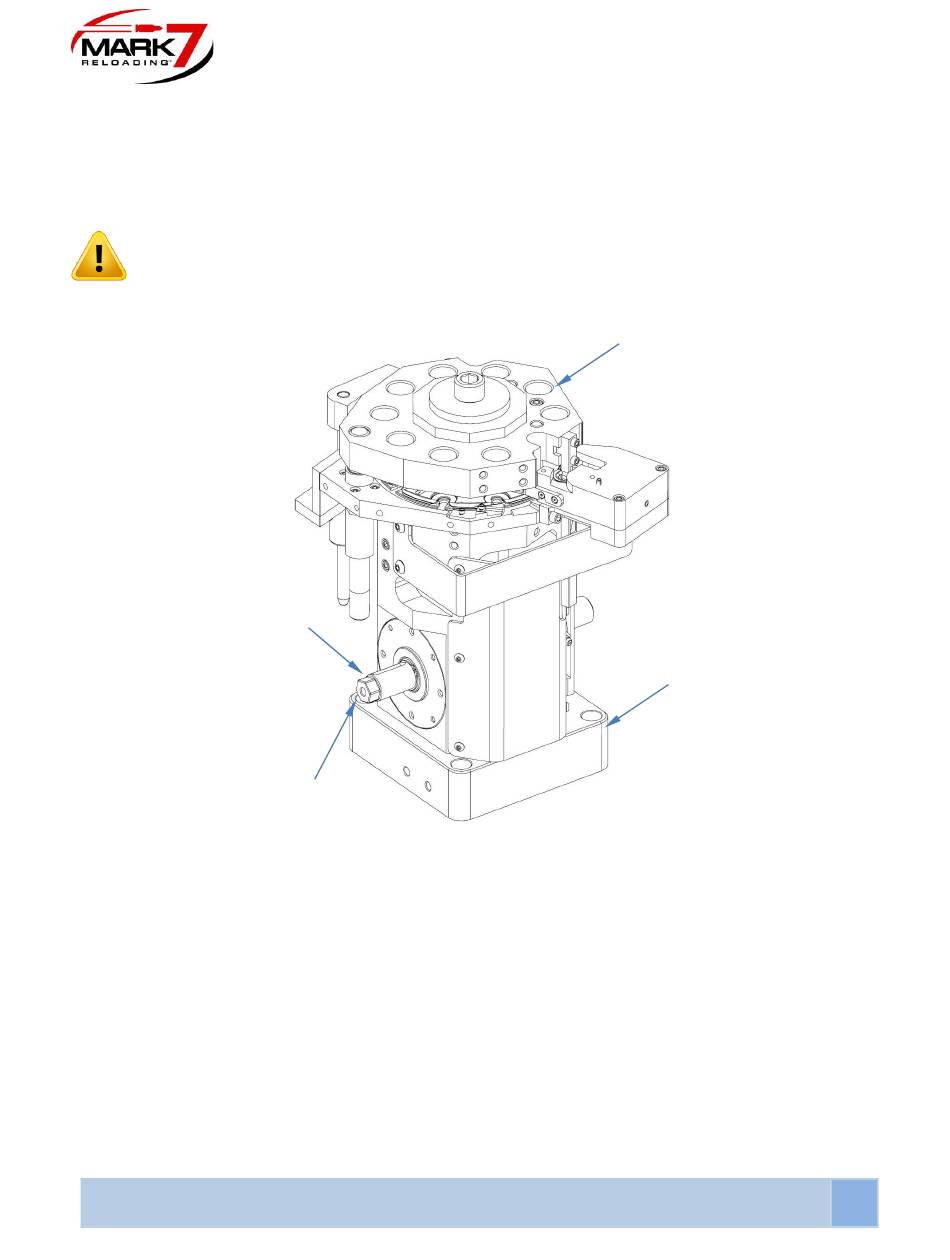

Cutting Zip tie securing Tool Head
Figure 1:
Tool Head
Main Unit
TM
press can be setup and
5
