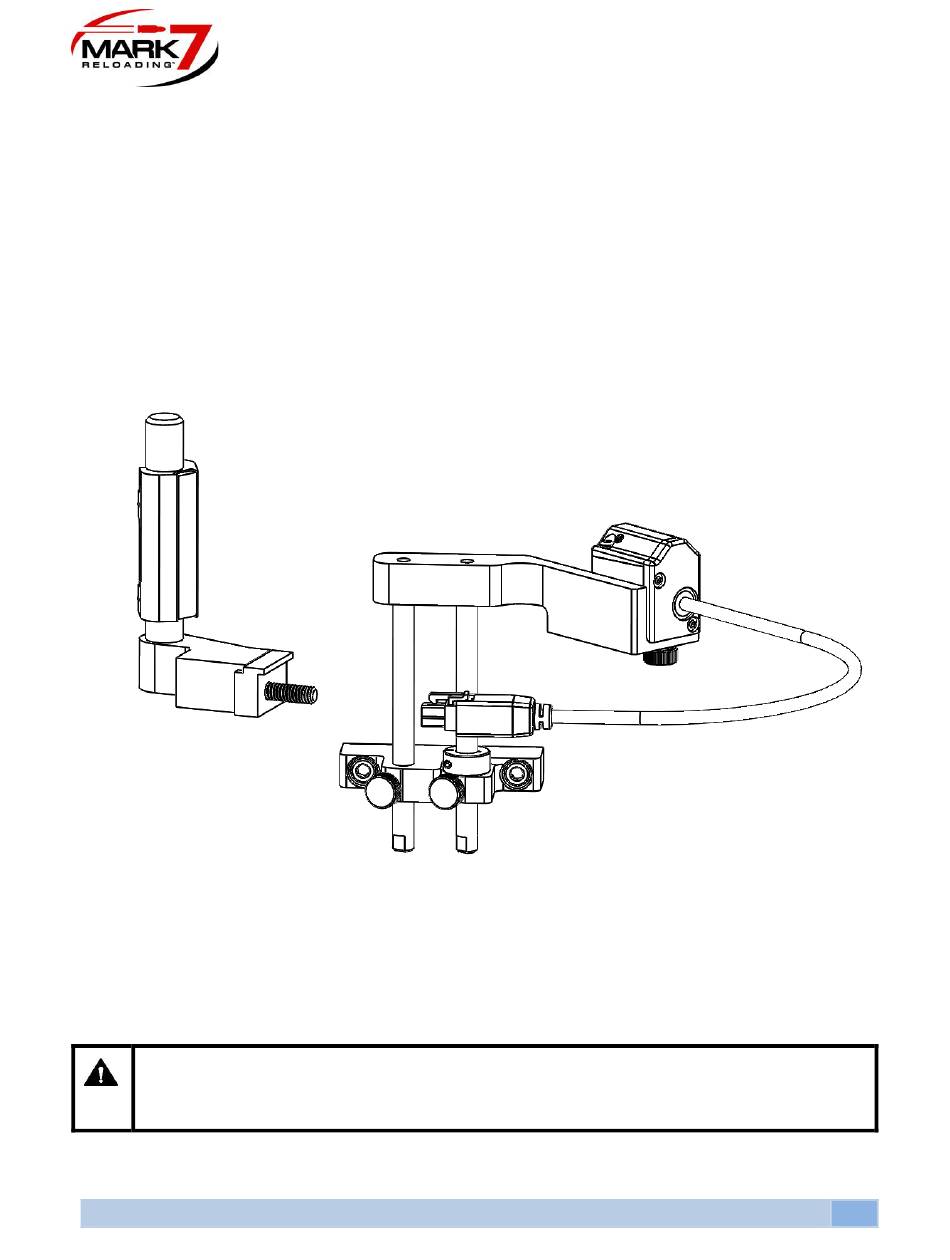

101-1083: Mark 7® BulletSense 650
Instruction Manual V 1.1
Read this manual completely. Understand all safety and operating instructions. Failure to
comply with the warnings and instructions may result in serious injury, illness or death.
BULLETSENSE 650 INSTRUCTION MANUAL VERSION 1.1
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BulletSense 650 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Mark 7 BulletSense 650

  • Page 1 101-1083: Mark 7® BulletSense 650 Instruction Manual V 1.1 Read this manual completely. Understand all safety and operating instructions. Failure to comply with the warnings and instructions may result in serious injury, illness or death. BULLETSENSE 650 INSTRUCTION MANUAL VERSION 1.1...
  • Page 2: Package Contents

    8-32 Thread Size, 3/8" Long Socket Cap Screw Socket Head Screw, 1/4"-20 Thread Size x 3/4" Long Socket Head Screw, 1/4"-20 Thread Size x 1-3/4" Long Socket Head Screw, 1/4"-20 Thread Size x 1-1/2" Long BulletSense Mirror Bracket Shim BulletSense 650 Instruction Manual Version 1.1...
  • Page 3: Setup Procedures

    Carefully remove the case feeder pole bolts with a 3/16” Allen wrench and with a 7/16” socket affixed on the opposite side of the press (see Figures 3 and 4). BULLETSENSE 650 INSTRUCTION MANUAL VERSION 1.1...
  • Page 4 Figure 3: Case Feeder Mounting Bolt Locations 4. Install the 650 BulletSense Bracket Assembly as shown in figure 4. Use the longer ¼-20” bolts provided. BulletSense 650 Instruction Manual Version 1.1...
  • Page 5 Figure 1: Installing BulletSense on XL 650. 5. Attach the Mirror Bracket to the top bracket mount with the 2X flat head 8-32 X 1.25” cap screws. The mirror then can be adjusted using a 3/8” open ended wrench. BULLETSENSE 650 INSTRUCTION MANUAL VERSION 1.1...
  • Page 6 Note for rifle calibers: The standard bracket can still be used for rifle (it just covers the bottom of the mirror). This isn't an issue though because the laser head is mounted higher due to the taller cases and longer projectiles. BulletSense 650 Instruction Manual Version 1.1...
  • Page 7 8. Once you decide which station, align the 650 BulletSense assembly with the mirror holder by loosening the sensor head mount (middle arm) brass thumb screw and rotating the sensor head to meet the mirror (see Figure 6). Figure 6: Lining Up Laser with Mirror (Crude Adjustment) BULLETSENSE 650 INSTRUCTION MANUAL VERSION 1.1...
  • Page 8 Figure 8. BulletSense 650 Instruction Manual Version 1.1...
  • Page 9 (Figures 9 and 10). Once the height has been set, remove the bullet, and make sure the laser is still aimed at the sensor hole. BULLETSENSE 650 INSTRUCTION MANUAL VERSION 1.1...
  • Page 10 Figure 9: Setting Vertical height of laser Figure 10: Beam Over Bullet (Left) the Reflected Beam Will Hit the Back of the Bullet (Right) BulletSense 650 Instruction Manual Version 1.1...
  • Page 11 Use the plastic knob on top of the rod to lift and rotate the sensor away from the machine. Figure 11: Bullet Properly Oriented - Beam Interrupted (Left) vs. Bullets Improperly Oriented – Beam not interrupted (Center and Right) BULLETSENSE 650 INSTRUCTION MANUAL VERSION 1.1...
  • Page 12 5. Press RUN or Single Cycle. With a clear shell plate the following notification should appear “Bullet Not Properly Positioned.” (see Figure 13). Figure 12: Enabling BulletSense® on Sensor tab Figure 13: Bullet Not Properly Positioned Notification BulletSense 650 Instruction Manual Version 1.1...
  • Page 13: Troubleshooting

    Troubleshooting Refer to the knowledge base section on our website under SUPPORT for troubleshooting articles relating to setup and operation. http://www.markvii-loading.com/knowledgebase Please contact us for technical support Phone: 1-888-462-7577 Hours: 9:00am-4:30pm, ET, M–F BULLETSENSE 650 INSTRUCTION MANUAL VERSION 1.1...
