Air handling with the focus on LCC
RU
Заслонка EСЕT-UM
См. Рис. A.
Подключите кабель автоматики к
соответствующему выходу блока
управления заслонки.
Калорифер, вода
ECET-VV
См. Рис. B.
1. Подключите кабель автоматики
к соответствующему выходу
блока управления калорифера.
2. Подключите кабель датчика
противозамерзания.
3. Подключите циркуляционный
насос. Max вых. ток 2,0 A.
Калорифер, эл.
ECET-EV
См. Рис. C.
Электрокалорифер требует
отдельное питание.
1. Подключите кабель 0-10 V к
соответствующему выходу
блока управления.
2. Подключите кабель 230 V к
блоку управления.
3. Подключите кабель питания.
Envistar Compact
MEC120228.05.RU.EN

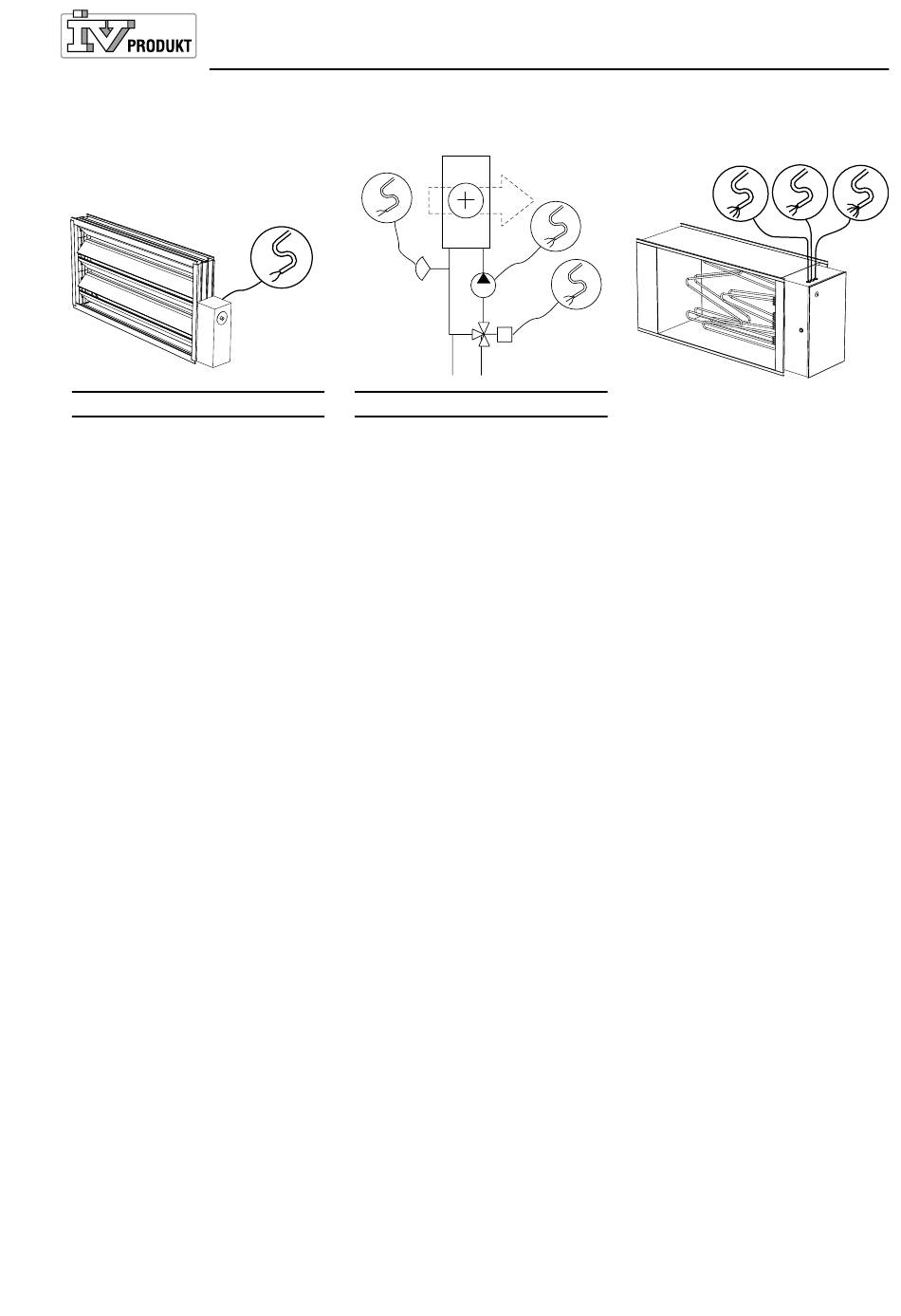

A
Damper EСЕT-UM
See Fig. A.
Wire the control cable to termi-
nals on the microprocessor unit.
Air heater water ECET-VV
See Fig. B.
1. Wire the control cable to ter-
minals on the microprocessor
unit.
2. Wire the cable of the anti-
freezing sensor to the micro-
processor unit.
3. Connect the circulation pump.
Max current per socket 2.0 A.
Air heater El ECET-EV
See Fig. C.
The air heater requires a sepa-
rate power supply.
1. Connect control cable 0-10 V
to automated unit.
For outputs 30-100 kW, con-
nect also 24 V (G).
2. Wire the operating circuit cable
for 230 V to the microproces-
sor unit.
3. Wire the power supply cable.
B
EN
17
C
