Savant Pro Host Quick Reference Manual

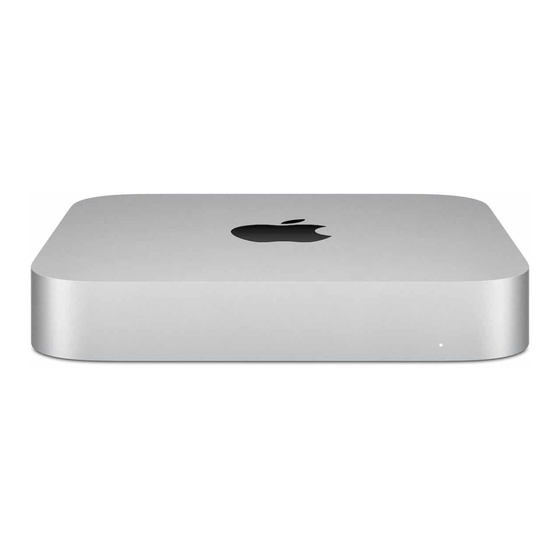

Savant® Pro Host (SVR-5100S)
Quick Reference Guide
Box Contents
(1) Pro Host (SVR-5100S-01)
(1) Power Cord
(1) Quick Reference Guide (this document)
Specifications
Environmental
Operating: 50° to 95° F (10° to 35° C)
Temperature
Storage: -40° to 116° F (-40° to 47° C)
Humidity 5% to 90% Relative Humidity (non-condensing)
Cooling 15 cubic feet per minute (CFM) recommended
Noise 5 dBA at idle
Dimensions
Height 1.4 in (3.6 cm)
Width 7.7 in (19.7 cm)
Depth 7.7 in (19.7 cm)
Weight 2.9 lb (1.3 kg)
Rack Space 1U
Power
Input Power 100/240V AC (50/60 Hz)
Maximum Power 150W
Memory and Storage
Memory 8 GB
Storage 128 GB
Regulatory
Safety and FCC Part 15
Emissions
RoHS Compliant
Minimum Support Requirements
Savant OS da Vinci 8.9.2
OSX 10.14.3
SVR-5100S-01 | 009-1768-01 | 190325
Copyright 2019 Savant Systems, LLC
CE Mark C-Tick

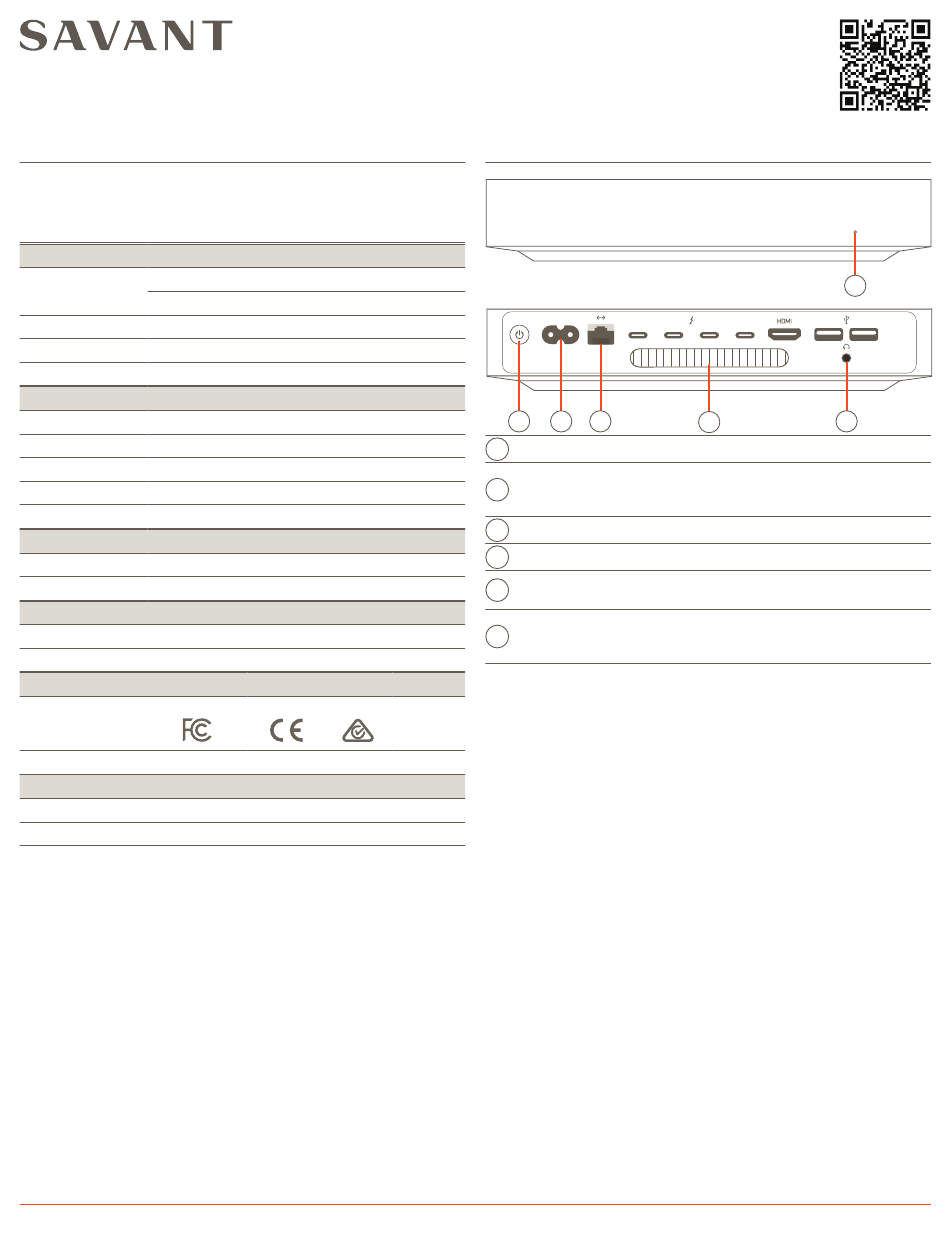

Hardware
Front Panel
Rear Panel
B C D
A
Power LED Illuminates White when host is powered On.
Power On: Press while powered Off.
Power
B
Button Power Off: Press and hold while powered On
until power LED goes out.
C
Power Input 100-240V AC 50/60Hz.
D
Ethernet 10/100/1000 Base-T auto-negotiating port.
Cooling Vent Output for cooling the internal processor. DO
E
NOT BLOCK.
Audio Out 3.5 mm (1/8 in) Stereo jack.
F
Connect to analog audio input on Savant
controller.
NOTES:
– See connected equipment Deployment Guide for connection usage
details.
–
Connections not identified in the diagram above are not functional
within a Savant Configuration/Installation.
