Savant ITP-E8000 Series Quick Reference Manual

Savant® Touch 8 inch Control Screen - White or Black (ITP-E8000x)
Quick Reference Guide
Box Contents
(1) Savant 8.0 inch In-Wall Touch Screen
(1) Installation Kit
(1) Installation Template
(1) Mounting Bracket (For standard 2-gang electrical box)
(4) Mounting Bracket Screws (6-32 x 1 in.)
(1) Quick Reference Guide (this document)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40°C)
Humidity 10% to 90% RH (non-condensing)
Dimensions and Weight (Product)
Viewing Image
8.0 in (203.0 mm)
(IPS)
Resolution 1280 x 800 | 16.7M colors
Height 5.84 in (148.4 mm)
Width 8.80 in (223.5 mm)
Depth (overall) 1.43 in (36.3 mm)
Depth
0.62 in (15.8 mm)
(mounting)
Weight 0.95 lb (0.44 kg)
Standards
Ethernet 10/100/1000 Gigabit Ethernet Adapter
Power
PoE 802.3at compliant
Power
Average 5.14W
Consumption
Regulatory
FCC Part 15
Class B
Safety and
Emissions
RoHs Compliant
Minimum Supported Release
Savant OS da Vinci 8.5
Network Requirements
Savant requires the use of business class/commercial grade network
equipment throughout the network to ensure the reliability of
communication between devices. These higher quality components
also allow for more accurate troubleshooting when needed.
Connect all Savant devices to the same local area network (LAN) or
subnet as the Host. Savant recommends not implementing any type
of traffic or packet shaping in your network topology for the Savant
devices as this may interfere with performance.
Network Changes
If the IP Address range in your network has changed, Savant
recommends the following steps to refresh any IP connection and
ensure that the display is communicating with the network correctly.
Reboot the device for the Settings Menu.
Navigate from the Home Screen Rooms >
ITP-E8000x | 009-1522-02 | 170816
Copyright © 2017 Savant Systems, LLC
Maximum 6.76W
CE WEEE
> Reboot
1

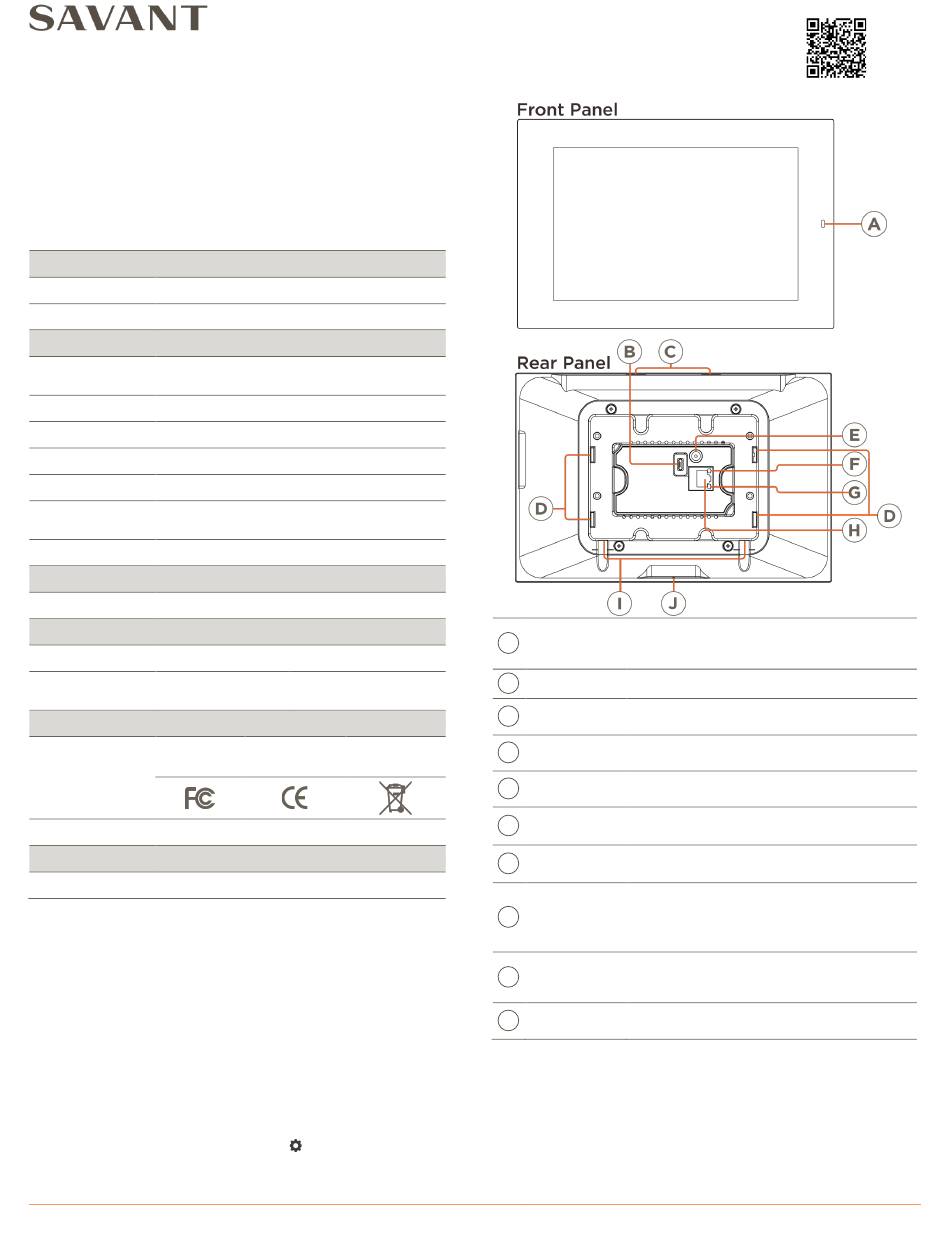

Sensor (proximity) mounted in front panel
Proximity
A
will wake up the display when movement is
Sensor
detected in front of display.
B
Micro USB Not Used
Embedded
C
For future use
Speaker
Mounting Align the mounting frame hooks and press
D
Slots down to seat.
Alternate
E
Not Used
Power Input
Solid Orange - Link is established.
F
Link LED
Off – No link established
Green Blinking - Indicates data activity.
Link Activity
G
LED
Off – No Activity
8-pin RJ-45 port:
-
H
Ethernet
-
Once mounting frame hooks are seated,
Captive
I
secure the touch panel to the bracket using
Screws
the two captive screws.
Embedded
J
For future use
Microphone
Network Configuration
To ensure that the IP Address will not change due to a power outage,
a static IP Address or DHCP reservation should be configured. Savant
recommends using DHCP reservation within the router. By using this
method, IP Addresses for all devices can be managed from a single
UI avoiding the need to access devices individually.
Setting DHCP reservation varies from router to router. Refer to the
documentation for the router to configure DHCP reservation.
of 2
For Product Info
10/100/1000 Base-T auto-negotiating
port with link and activity LEDs
PoE – 802.3at compliant
45 Perseverance Way, Hyannis, MA
Savant.com | 508.683.2500
02601
