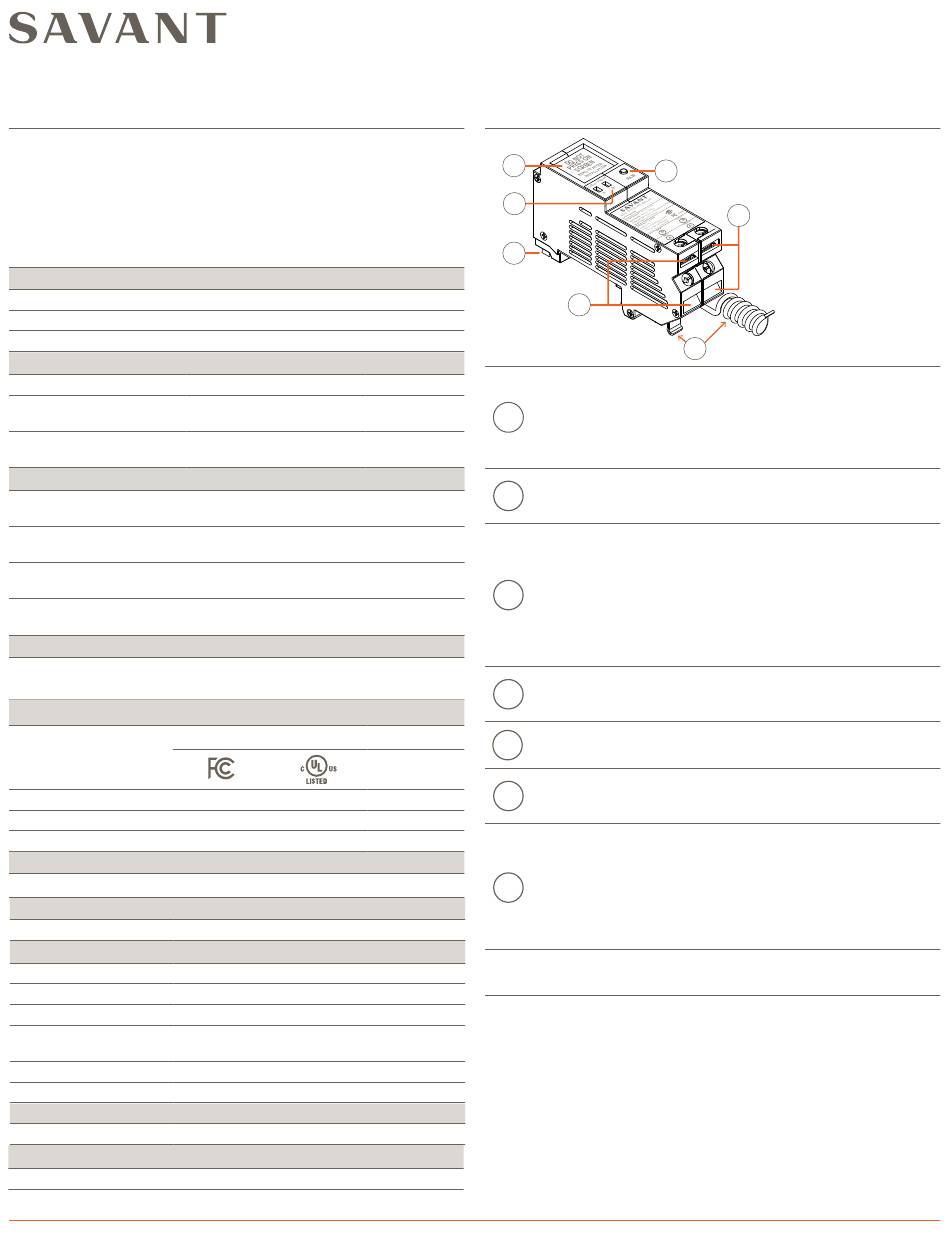

Savant GPM-CP2R20120-21 Quick Reference And Installation Manual

Dual 20 Amp Relay Companion Module (120V AC)
Quick Reference and Installation Guide

Box Contents

(1) Dual 20 Amp Relay Companion Module (Eaton CH)
– GPM-CP2R20120-21 w/Plug-on Neutral -or-
–
GPM-C2R20120-21 w/Pigtail
(1) Product Information and Regulatory Insert (009-1950)
(1) Quick Reference and Installation Guide (this document)

Specifications

Environmental

Temperature 32° to 104° F (0° to 40° C)
Humidity 5% to 85% Relative Humidity (non-condensing)
Location Indoor Use Only

Dimensions and Weights

Length
4.96 inch
Module
(12.6 cm)
7.48 inch
Shipping
(19.0 cm)

Power

Input Power
120V AC (+/- 10%) @ 60 Hz, 0.1A (max)
(powers the module)
Input Power
120V AC @ max power load
(from feeder breaker)
2400VA max per channel
Load Power
(20A resistive load / 1 HP max per channel)
Features of Automatic
Type 1.B action
Action

Standards

Bluetooth 5 Low Energy (BLE)
Wireless
–

Regulatory

FCC Part 15
Safety and Emissions
Contains FCC ID: PUU-QP2R20120
Contains IC: 10798A-QP2R20120
RoHS Compliant

Recommended Load Center Types

All Eaton CH style modules fit into a

Supported Load Types

Standard Configuration Relay On/Off type loads

Electrical and Safety Characteristics

Screw Tighten Torque 3.0 Nm
Wire Type Copper (Cu) only
Pollution Degree 2
Operating Control, Smart Relay Control
Purpose of Control
Module or equivalent
Software Class A
Impulse Voltage 2500V
Construction of Control
Open Type Independently mounted for flush mounting
Minimum Supported Release
Savant OS da Vinci 10.1
Dual 20 Amp Relay Companion Module - QRG | 009-2129-00
Copyright ©2022 Savant Systems, Inc | 220408
Width Height Weight
1.46 inch 3.39 inch .54 lbs
(3.7 cm) (8.61 cm) (.24 kg)
4.17 inch 1.69 inch 1.0 lbs.
(10.60 cm) (4.29 cm) (.45 kg)
2.4 GHz radio frequency
UL
¾
inch Eaton CH load center.
(home automation)
(Supports Eaton CH Load Centers)
Descriptions
A
B
F

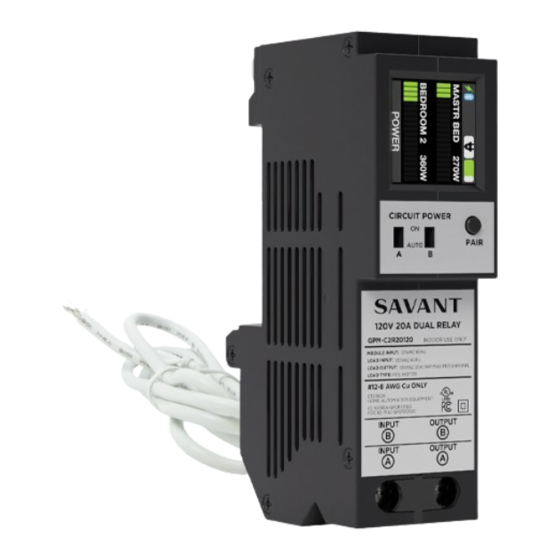

Multi-Page LCD screen that can display the following:
– Power draw and energy usage at each output.
A
– Firmware, Mac Address, and Regulatory Info.
– UID of the Host that the module is communicating with.
– Real-time Bluetooth status connectivity icon.
Manual Load Switches - Toggle to the ON position to switch
B
the load on. Toggle to AUTO for normal operation. Switch A
controls output A, Switch B controls output B.
PAIR Button - The PAIR button is a multi-use button. The
duration that the button is pressed and held determines the
function that gets initiated:
Press and Release - Cycles through the screens available on
C
the LCD (POWER > ENERGY > INFO 1 > INFO 2).
Press and hold - Press and hold for 2 second to put the
module into pairing mode. Press and hold for 5 seconds to
reset.
Input Power Connections - Connect the outputs from two
D
feeder breakers to inputs A and B on the module. See the
Wiring
Output Power Connections - Connect output A and output B
ICES 003
E
to separate loads. See the
120V AC Connection - Plugs into the 120V AC bus bar in the
F
breaker panel. The voltage on this connection powers the
module.
Neutral - The model number of the Companion Module
determines the type of neutral connection available:
– Plug-On Neutral - Positioned on the bottom of the module
G
is a neutral clip that plugs directly onto the neutral bar.
– Pigtail Neutral - A neutral wire protrudes from the
module's rear and gets wired to the neutral bar in the
breaker panel.

Features

– Control capability for loads up to 2400VA per channel.
– All Eaton CH style relay modules are compatible with Eaton CH
inch load centers.
– Dynamic management of loads.
– Built-in energy monitoring; +/- .5% revenue grade accuracy / 1 sec
sample time.
– Communicates over the air using Bluetooth Low Energy (BLE)
technology.
–
Manual load switches, available on the front panel, can toggle
power to the outputs On and Off.
– Color LCD display for easy identification and load status.
1 of 4
C
E
D
G
section below.
Wiring
