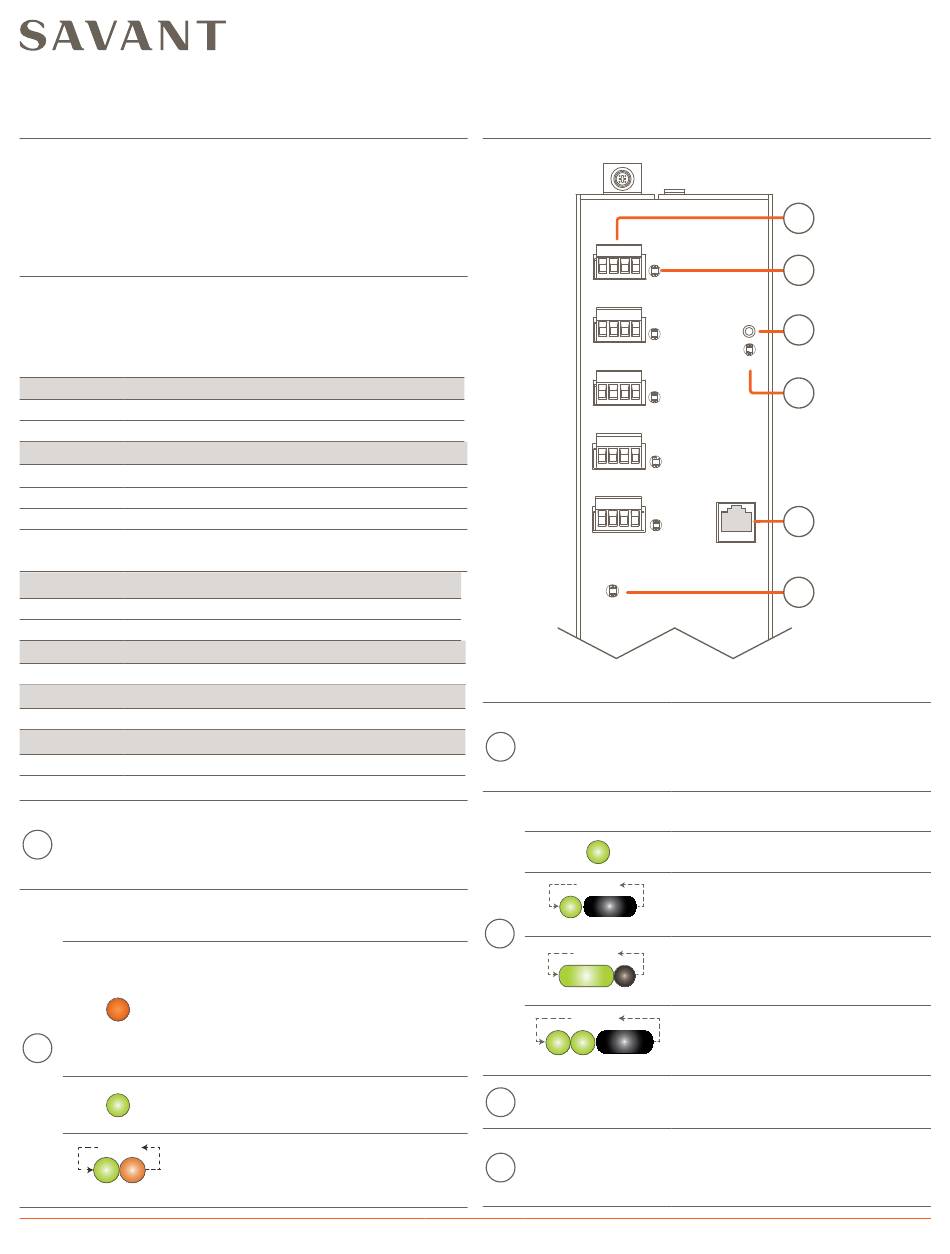

Savant® 40 Keypad Power and Control Module [SKL-3040-00]
Quick Reference Guide

Box Contents

(1)
40 Keypad Power and Control Module (SKL-3040-XX)
(5) 4-pin Screw Down Plug-in Connectors (028-0834-xx)
(1)
Power Supply to 120V AC Cable (064-0420-xx)
½
(1)
inch nylon bushing for
(1)
Product Regulatory Statement

Additional Required Items

– SHA-PENC3 Power Module Enclosure (legacy model number)
– PWM-PENC3 Power Module Enclosure
®
– Up to 40 Savant
ECHO™ Low-Voltage Keypads per Module.

Specifications

Environmental
Temperature
32° to 104° F (0° to 40° C)
Humidity
10% to 80% Relative Humidity (non-condensing)

Dimensions and Weights

Height
12.35 inch (31.37 cm)
Width
3.43 inch (8.71 cm)
Depth
2.25 in (5.72 cm)
Net: 2.30 lbs (1.04 kg)
Weight
Shipping: 3.30 lbs (1.50 kg)

Power

Input
120 - 240V AC, 50/60 Hz (7.2A)
Output
24V DC - (2A) per keypad bus
Maximum Wiring Distance (per keypad bus)
#14 AWG
Max = 1000 feet (304.8 m)
Regulatory
RoHS
Compliant

Minimum Supported Release

Savant OS
da Vinci 9.0
Keypad Bus - Each Keypad Bus connection (1-5) supports
daisy-chaining up to 10 keypads with a maximum of 40 per
A
SKL-3040 power module. Wiring information is available in
the Low Voltage Keypad Deployment Guide located on the
Savant Community.
Keypad Status LED - The state of the keypads bus is
displayed on the LED associated with each connection.
Indicates one of two states:
During the keypad discovery process, no
keypads were detected on the keypad bus.
-- OR --
The SKL-3040 is in bootloader mode which
B
takes place just after power is applied, or
when a module is reset.
During the keypad discovery process, at
least one keypad was detected on the

keypad bus.

REPEAT
After resetting the SKL-3040 module, the
LED repeatedly blinks green then orange
until it detects a keypad on the bus.
.5s
.5s
SKL-3040-00 Quick Reference Guide | 009-1796-01
Copyright © 2020 Savant Systems, LLC | 200331
½
inch knockouts (015-0216-xx)

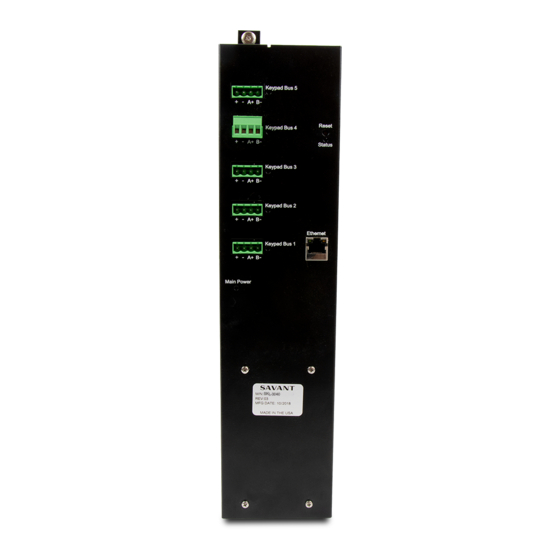

Front View
Main Power
Reset Button - Press and release the reset button to start
the keypad discovery process. Each time a keypad is either
C
added to a keypad bus or an existing keypad is replaced,
the reset button must be pressed to restart the discovery
process.
Module Status LED - Indicator LED for the various states
the SKL-3040 can get into. The states are shown below
REPEAT
.5s
2s
D
REPEAT
2s
.5s
REPEAT
.5s .5s
2s
E
Ethernet - Connect to a network via Cat 5/5e/6.
Main Power LED - Indicates whether power is applied to the
module.
F
Green = Power Applied.
Off = No Power.
1 of 2
A
Keypad Bus 5
B
Reset
C
Keypad Bus 4
Status
Keypad Bus 3
D
Keypad Bus 2

Ethernet

Keypad Bus 1
E
F
Module is connected to a network and
communicating with a Savant Host.
Module is not connected to a
network.
Firmware update is in process.
Module is connected to a network but
not communicating with the Savant
Host.
45 Perseverance Way, Hyannis MA 02601
Savant.com
| 508.683.2500
