Savant Pro Host Quick Reference Manual

Savant® Pro Host
Quick Reference Guide
Box Contents
(1) Savant Pro Host (SVR-5000S-00)
(1) Power cord
(1) Quick Reference Guide (this document)
NOTE:
If the SVR is either a master or redundant host, both a Runtime
Operating System license and an Internet connection are required
for installation. Refer to the latest Savant Runtime OS Licensing
Application Note.
Specifications
Environmental Environmental
Operating: 50° to 95° F (10° to 35° C)
Temperature Temperature
Storage: -40° to 116° F (-40° to 47° C)
Humidity 5% to 95% RH (non condensing)
Cooling 15 cubic feet per minute (CFM) recommended
Noise 12dBA at idle
Dimensions and Weight Dimensions and Weight
Height 1.4 in (3.6 cm)
Width 7.7 in (19.7 cm)
Depth 7.7 in (19.7 cm)
Weight 2.6 lb (1.20 kg)
Rack Space 1U
Power Power
Input Power 100-240V AC 50/60Hz
Maximum Power 85W
Memory and Storage Memory and Storage
Memory 8 GB
Compliance Compliance
Safety and
FCC Part 15 | CE Mark | C-Tick
Emissions
RoHS Compliant
Minimum Supported Release Minimum Supported Release
Savant OS da Vinci 7.0.2
SVR-5000S-00 | 009-1300-00 | 141229 SVR-5000S-00 | 009-1300-00 | 141229
Copyright © 2014 Savant Systems, LLC

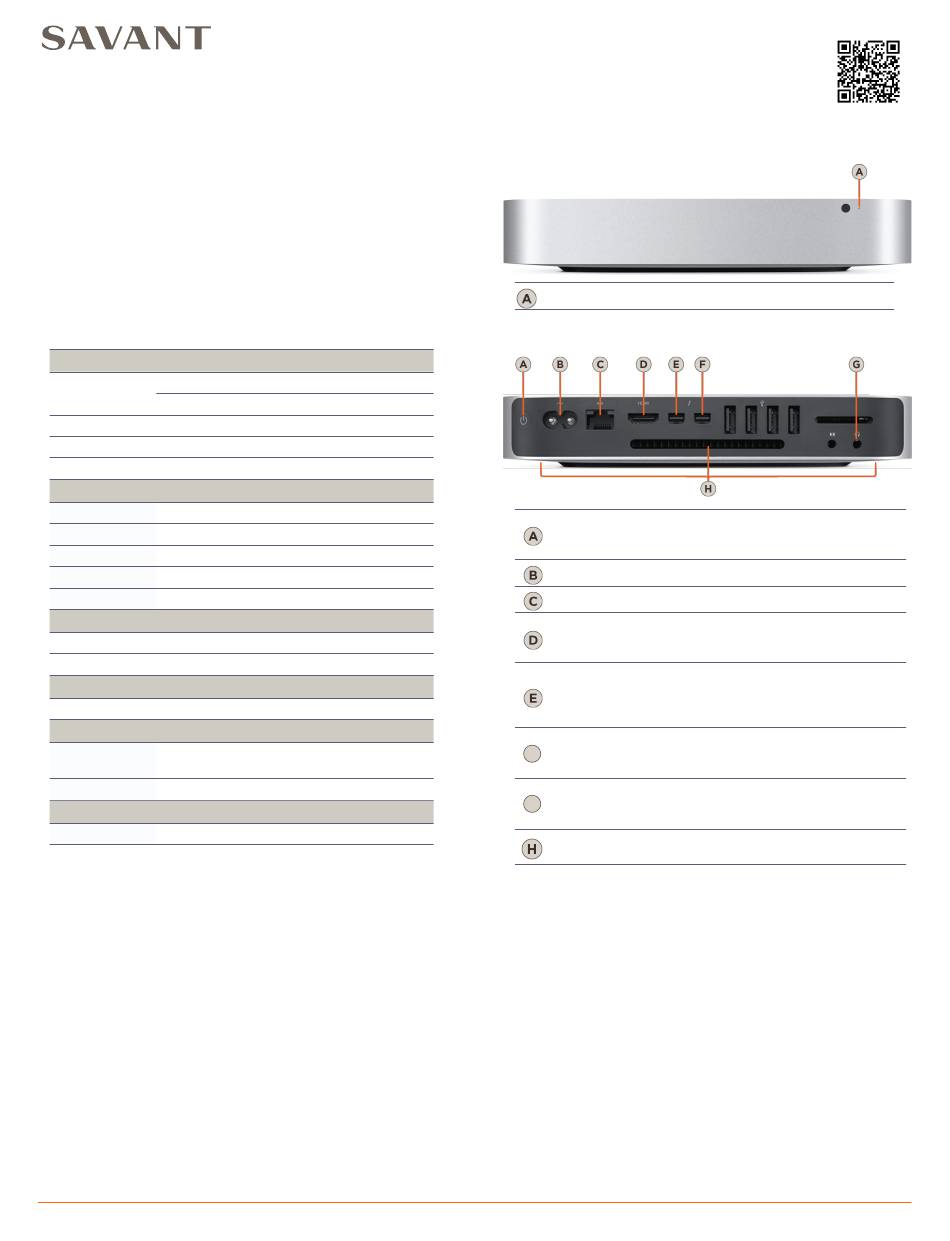

Front Panel
Power LED
Rear Panel
Power Button
Power Input
Ethernet
HDMI
Thunderbolt
(Left)
Thunderbolt
F
(Right)
G
Audio Out
Cooling Vents
Note:
See connected equipment Deployment Guide for connection
•
usage details.
Connections not identified in the diagram above are not
•
functional within a Savant Configuration/Installation.
1 of 2
Illuminates White when host is powered On.
Power On: Press while powered Off.
Power Off: Press and hold while powered On
until power LED goes out.
100-240V AC 50/60Hz
10/100/1000 Base-T auto-negotiating port.
19-pin type A HDMI female.
Connect to OSD card or Host input on Savant
controller.
This connection has no function within a
Savant system and connection may interfere
with other display outputs. Do not use this
connection.
Apple Thunderbolt.
Connect to OSD card or Host input (using an
HDMI adapter) on Savant controller.
3.5 mm (1/8 in) Stereo jack.
Connect to analog audio input on Savant
controller.
Output for cooling the internal processor. DO
NOT BLOCK.
