Savant IP Audio 125 with Music 2.0 Quick Reference Manual

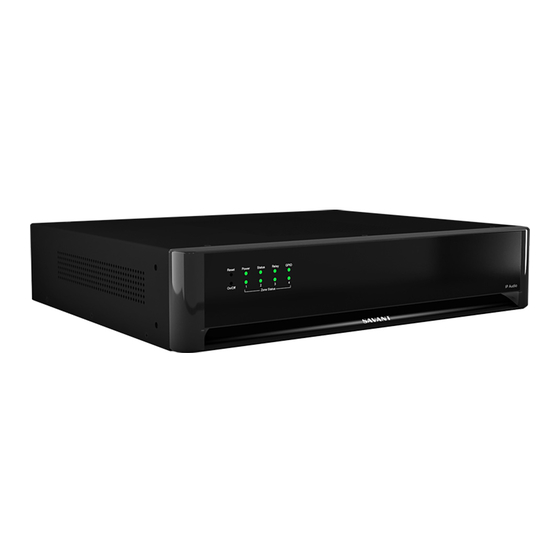

Savant® IP Audio 125 with Savant Music 2.0 [PAV-SIPA125SM-05]
Quick Reference Guide
Box Contents
(1) IP Audio 125 (PAV-SIPA125SM-05)
(1) Install Kit (075-0202-xx)
(1) Power Cord (064-0431-xx)
(2) 2U Chassis mounting ears (071-0113-xx)
(4) M5X12mm Screws (039-0034-xx)
(4) 4-pin Speaker connector (028-0702-xx)
(2) 6-pin Control connector (008-0664-xx)
(2) 3-pin Control connector (028-0665-xx)
(1) Product Information and Regulatory Statement (009-1950-xx)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Maximum BTU 1750 BTU/HR
Dimensions
Height 3.46 in (87.9 mm)
Width 17.30 in (439.4 mm)
Depth 14.24 in (361.8 mm)
Weight 14.3 lb (6.5 kg)
Rack Space 2U
Power
Input Power 100/240V AC (50/60 Hz) 5.7A
Maximum Power 515W
Operating Parameters
Rated Power
(Speaker 125 WPC at 8 ohms (THD+N < 0.1%)
Output)
Frequency
20 Hz - 20 kHz +/- 0.5 dB, speaker output
Response
Signal-to-Noise
>100 dB, speaker output
Ratio (SNR)
Supported
44.1 kHz / 48 kHz / 96 kHz at 16-bit / 20-bit /
Digital Input
24-bit resolution
Formats
Networking
Supported IEEE 802.1 AVB/TSN switches
Standard IEEE 802.3 Ethernet
Regulatory
FCC Part 15B
Safety and
Emissions
RoHS Compliant
Minimum Support Requirements
Software
da Vinci 9.0.2
Release
Music Streaming
The Savant IP Audio has a built-in single stream of Savant Music.
(Streaming service fees may apply.)
PAV-SIPA125SM-05 | 009-1657-03 | 200709
© 2020 Savant Systems, Inc.
CE Mark C-Tick UL
Front Panel
A C D E
Reset Power Status Relay GPIO
On/Off 1 2 3 4
Zone Status
B G
Hold Reset Button for 5 seconds while powered
A
Reset On to clear network settings. Status LED will
rapidly blink red when reset is complete.
On: Fully enables all internal power rails and
processor.
Off: Disables internal power rails and processor,
but not internal AC/DC power supply. To fully
power off unit, press the I/O power switch on the
B
On/Off rear panel to Off [O].
Standby Mode: Hold On/Off button for about 5
seconds. Hold On/Off button for about 1 second
to take system out of standby mode. The I/O
power switch on the back of unit must be On (I)
to enable this function.
Green: System has power and is operating
normally.
C
Power LED Red: System is in standby mode and most of the
controller circuitry is powered down.
Off: System is not receiving power.
Green Blinking: Embedded system is ready, but
no communication has been established with the
host.
Green: Host has established communications with
the embedded system.
Red Blinking: Embedded firmware is running, but
has not received a DHCP IP Address.
Red: Host has determined the firmware needs to
be updated, but a problem occurred during the
process that will initiate a reset.
D
Status LED
Amber Blinking: Embedded system has a valid
link local IP Address and is connecting to the
host.
Amber: Host is updating the embedded
firmware.
Off: Embedded processor is resetting, or is
powered up, and is booting the embedded
firmware.
Hardware Failure: If hardware failure occurs,
the status LED will be interrupted every three
seconds with a solid red indication.
Green: Relay port activity.
E
Relay LED
Off: No Relay port activity.
Green: GPIO port activity.
F
GPIO LED
Off: No GPIO port activity.
Green: Zone in use.
Red: Protection mode has been enabled to
protect a zone/channel; typically indicates
G
Zone Status
thermal protection, clipping or over current.
Off: Zone is off and protection mode has not
been enabled.
1 of 3
F
