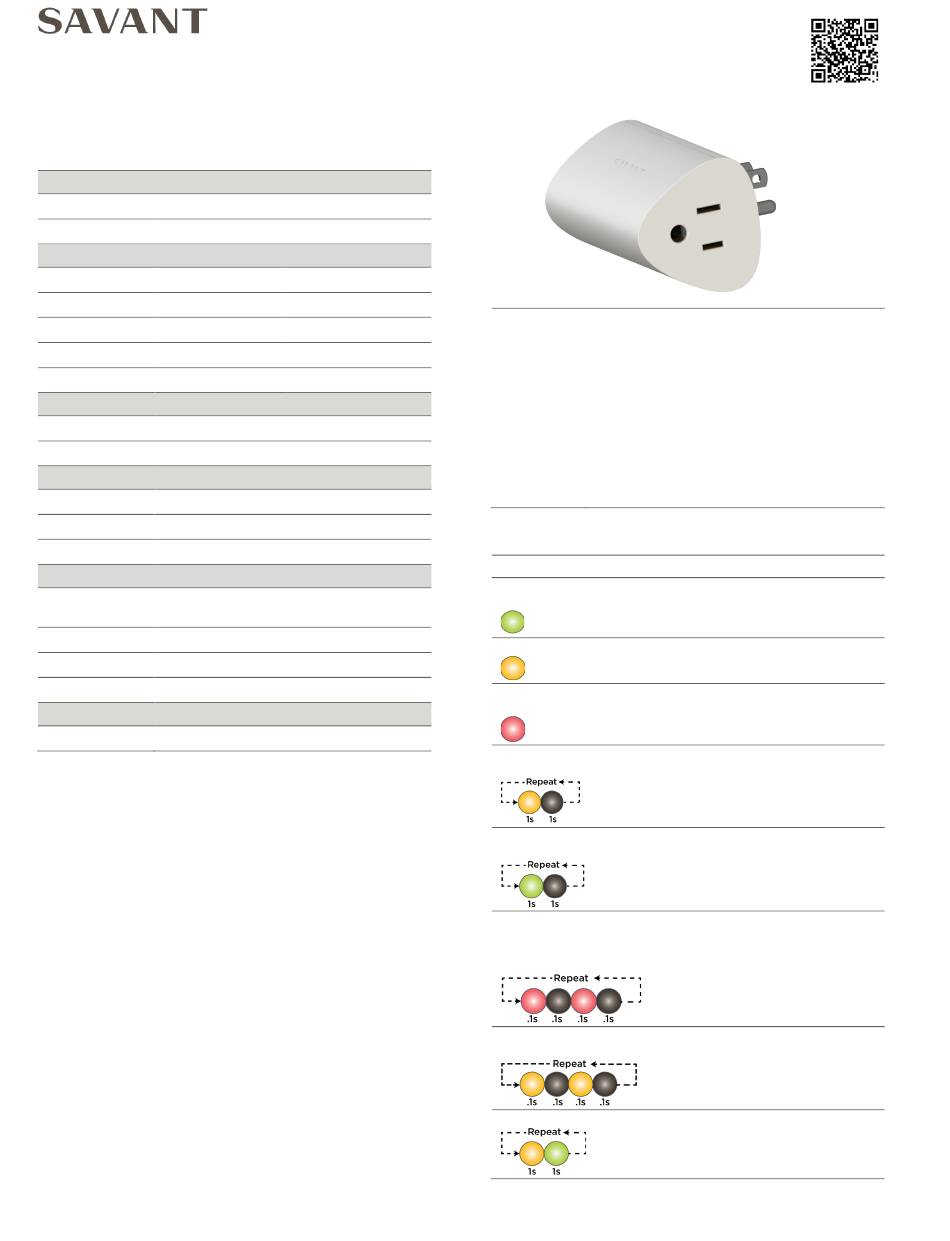

Savant SAV-LMP-0300 Quick Reference Manual

Savant® SAV-LMP-0300 Pro System Lamp Control
Quick Reference Guide
Box Contents

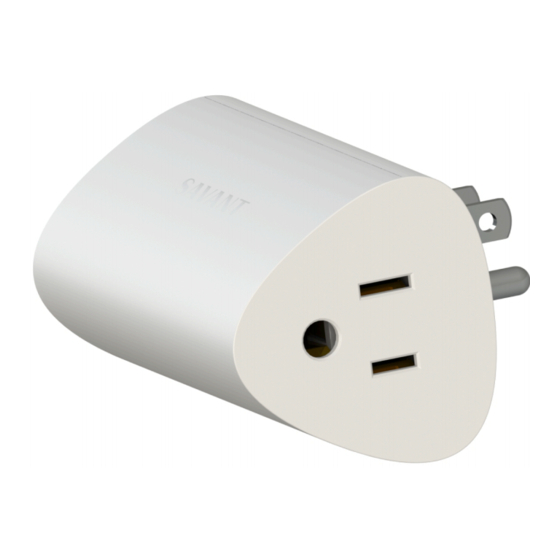

(1) Savant Pro System Lamp Control (SAV-LMP-0300)
(1) Quick Start Guide
Specifications
Environments
Temperature 32° to 104° F (0° to 40°C)
Humidity 10% to 90% (non-condensing)
Dimensions
Lamp Control
Height 1.8 in (4.6 cm)
Width 3.2 in (8.1 cm)
Depth 1.8 in (4.6 cm)
Weight 0.20 lb (0.09 kg)
Power
Power Supply 120V AC, 60Hz
Maximum Load 2.1A, 250 W
Standards
Wireless Wi-Fi® (802.11 b/g/n 2.4 GHz)
Bluetooth Bluetooth v4.0
Security WPA1™, WPA2™, WPA1™ + WPA2™, WEP
Regulatory
Safety and
FCC Part 15 | UL
Emissions
Contains FCC ID: TLZ-CU277
Contains IC: 6100A-CU277
RoHS Compliant
Minimum Supported Release
Savant OS da Vinci 8.0
Network Requirements
Savant requires the use of a wireless network that is configured to
make use of at least one of the supported wireless Standards listed
in the Specifications Table.
Connect all Savant devices to the same local area network (LAN) or
subnet as the host. Savant recommends not implementing any type
of traffic or packet shaping in your network topology for the Savant
devices as this may interfere with performance.
Refer to the Lamp Control, refer to the Savant Pro Lamp Control
Deployment Guide (009-1398-xx) located on the Savant Customer
Community for information on provisioning the Pro Lamp Control.
Network Configuration
To ensure that the IP Address will not change due to a power
outage, a static IP Address or DHCP reservation should be
configured. Savant recommends using DHCP reservation within the
router. By using this method, static IP Addresses for all devices can
be managed from a single UI, avoiding the need to access devices
individually.
Setting DHCP reservation varies from router to router. Refer to the
documentation for the router to configure DHCP reservation.
Refer to the SAV-LMP-0300 Pro Lamp Control Deployment Guide
(009-1388-xx) located on the Savant Customer Community for
information on connecting the Pro Lamp Control to the local
network.
SAV-LMP-0300 | 009-1406-00 | 160519
Copyright © 2016 Savant Systems, LLC
Shipping Package
4.1 in (10.41 cm)
2.1 in (5.33 cm)
4.1 in (10.41 cm)
1.0 lb (0.45 kg)
Lamp Control
Located on bottom of Lamp Control. Used to
either reboot or put Lamp Control into Access
Point Provisioning Mode.
Press and Release:
Will turn the Lamp plugged into the Lamp
Reset Control on and off.
Button
Press and Hold:
While powered On, press and hold the button
for 5 seconds until the Status LED begins a
rapid blink (red). After reboot, the Lamp
Control will be in Access Point Provisioning
Mode. (See Rapid Blink below.)
Lamp Control LED States
Off - No Power
On Solid (Green) – Connected to the local network and
communicating with the Savant Host.
On Solid (Yellow) - Lamp is booting.
On Solid (Red): Alert message of a possible overcurrent
condition.
Blinks Once (Yellow) – In Access Point Provisioning Mode
and ready to be provisioned onto the local network.
Blinks Once (Green) – Connected to the local network. Has
been provisioned.
Rapid Blink (Red) - The reset button on bottom of Lamp
Control was held down for at least five seconds. When button
is released, the rapid blink will stop and the Lamp Control will
reboot.
Rapid Blink (Yellow) - The locate feature was activated using
SmartConnect.
Blinking Yellow/Green - Firmware is updating.
45 Perseverance Way, Hyannis, MA 02601
For Product Info
Savant.com | 508.683.2500
