Savant Pro Host SVR-5200S-00 Quick Reference Manual

Savant® Pro Host Quick Reference Guide
Box Contents
(1) Pro Host (SVR-5200S)
(1) Power Cord
(1) Quick Reference Guide (009-2007-xx, this document)
Specifications
Environmental
Operating: 50° to 95° F (10° to 35° C)
Temperature
Storage: -40° to 116° F (-40° to 47° C)
Humidity 5% to 90% Relative Humidity (non-condensing)
Cooling 15 cubic feet per minute (CFM) recommended
Noise 5 dBA at idle
Dimensions and Weights
Height
1.4 in
Device
(3.6 cm)
5.0 in
Shipping
(12.7 cm)
Rack Space 1U
Power
Input Power 100/240V AC (50/60 Hz)
Maximum Power 150W
Memory and Storage
Memory 8 GB
Regulatory
FCC Part 15
Safety and
Emissions
RoHS Compliant
Supported Releases
SVR-5200S-00 da Vinci 9.3.5
SVR-5200S-01 da Vinci 10.0.1
SVR-5200S Quick Reference Guide | 009-2007-02
Copyright © 2022 Savant Systems, Inc. | 220221
Width Depth Weight
7.7 in 7.7 in 2.6 lbs
(19.7 cm) (19.7 cm) (1.2 kg)
11.0 in 11.0 in 4.0 lbs
(27.94 cm) (27.94 cm) (1.81 kg)
CE Mark C-Tick
Mac OS 11.2
Mac OS 12.0.1
Hardware

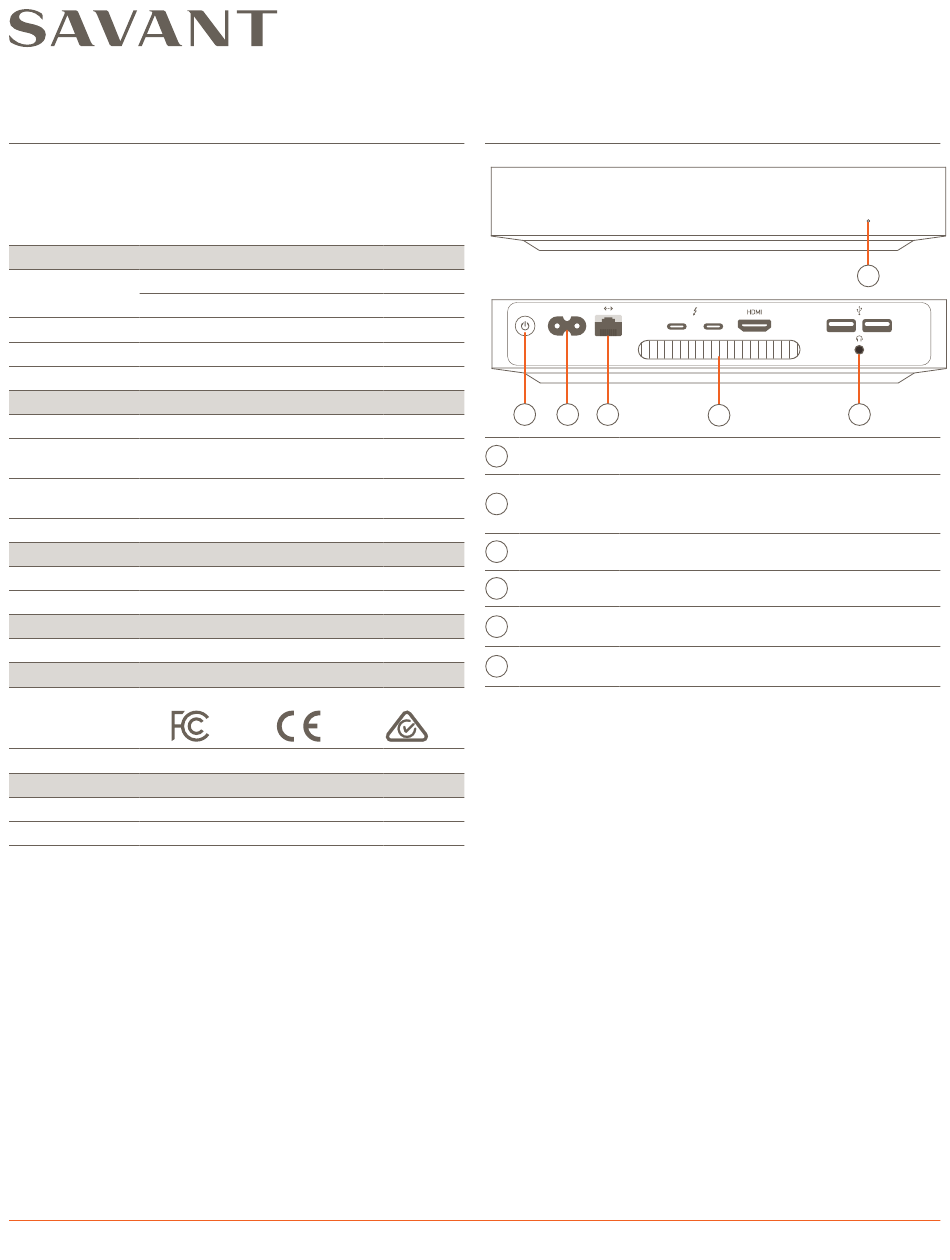

Front Panel
Rear Panel
B C D
A
Power LED Illuminates White when host is powered On.
Power On: Press while powered Off.
B
Power Button
Power Off: Press and hold while powered On
until power LED goes out.
C
Power Input 100-240V AC 50/60Hz.
D
Ethernet 10/100/1000 Base-T auto-negotiating port.
Output for cooling the internal processor. DO
E
Cooling Vent
NOT BLOCK.
3.5 mm Analog audio output.
F
Audio Out
2-channel analog audio output.
NOTES:
– See connected equipment Deployment Guide for connection usage
details.
–
Connections not identified in the diagram above are not functional
within a Savant Configuration/Installation.
1 of 2
A
F
E
