Savant® Smart Host Rack Mountable
Quick Reference Guide
Box Contents
(1) Savant® Smart Host Rack Mountable - (SHR-2000-00)
(1) Install Kit (075-0223-xx)
(1) 5V DC 3A Power Supply
with Quick Change AC Adapters ( 025-0216-xx)
(2) 6-pin Screw Down Plug-in Connector Black (028-9352-xx)
(2) 3-pin Screw Down Plug-in Connector Black (028-9351-xx)
(1) Product and Regulatory Insert (009-1781-xx)
Specifications
Environmental
Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Cooling 10 CFM
Maximum BTU 34.1 BTU/hr
Dimensions and Weights
Height 1.6 in (4.15 cm)
Width 8.5 in (21.50 cm)
Depth 3.7 in (9.33 cm)
Net: 1.4 lb (0.64 kg)
Weight
Shipping 2.3 lb (1.05 kg)
Rack Space 1U
Power
Input Power 5V DC 3A
Maximum Power 15 watts
Power over
IEEE 802.3af
Ethernet (PoE)
Regulatory
FCC Part 15
Safety and
Emissions
RoHS Compliant
Minimum Supported Release
Savant Software da Vinci 9.2
Network Configuration
To ensure the IP Address will not change due to a power outage, a
static IP Address or DHCP reservation should be configured. Savant
recommends using DHCP reservation within the router. By using this
method, static IP Addresses for all devices can be managed from a
single UI, avoiding the need to access devices individually.
Setting DHCP reservation varies from router to router. Refer to the
documentation for the router to configure DHCP reservation.
SHR-2000-00 | 009-1909-01 | 200123
Copyright 2020 Savant Systems, LLC
CE C-Tick

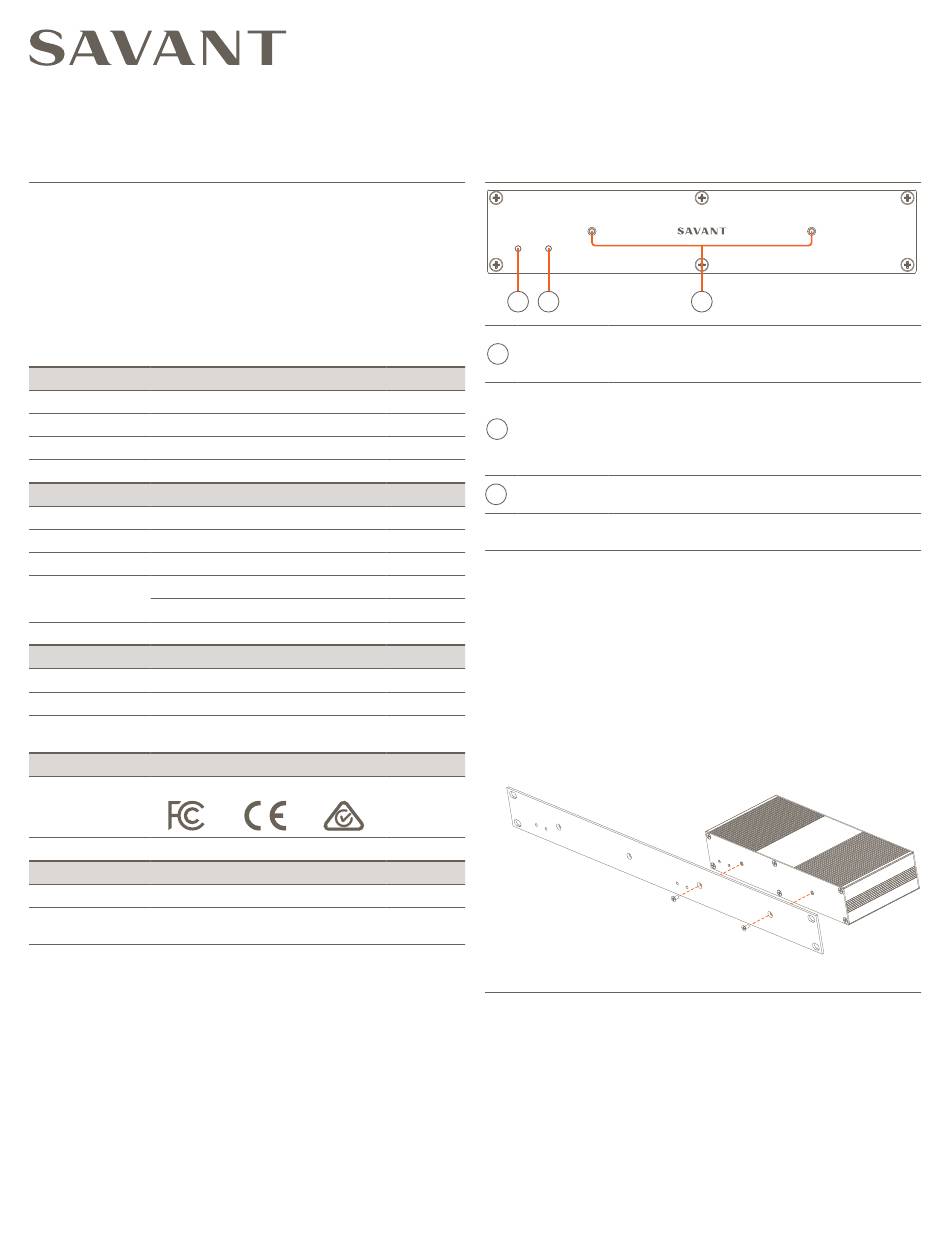

Front Panel
Power Status
A B
Green: System has power and is operating
A normally.
Power LED
Off: System is not receiving power.
Off: Disconnected from power supply.
Amber: Host is booting/rebooting and is
B
Status LED disconnected from the network.
Green: Connected to the local network and is
assigned an IP Address.
Mounting Threaded insert for use with optional rack
C
Points mounts
Chassis Installation
The Smart Host can be installed on a solid, flat, level surface such as a
table, cabinet, or shelf. The location should be dry, well ventilated, and
out of direct sunlight.
Rack
The optional RMB-PAVAM2F-xx or RMB-PAVAM2-xx allows two
devices to be mounted side by side. For example a Smart Host can
be mounted next to a PAV-AIM7C. This rack is compatible with all
standard 19-inch National Electrical Manufacturers Association (NEMA)
rack mounts.
The instructions below show the RMB-PAVAM2F-xx, both brackets
install the same way they just face different directions.
1. Align the bracket with the Smart Host mounting points.
2. Attach using the screws provided with the bracket.
Refreshing the IP Connection
After connecting to a new network, changing routers, or if the IP
Address range in the router was changed, the IP connection should be
refreshed. To refresh the IP connection, do one of the following:
– Hot Plug the Ethernet (LAN) Connection
– Cycle power
1 of 2
C
