Technical description

IKx dimensions and identification

6 | © Danfoss | May 2021

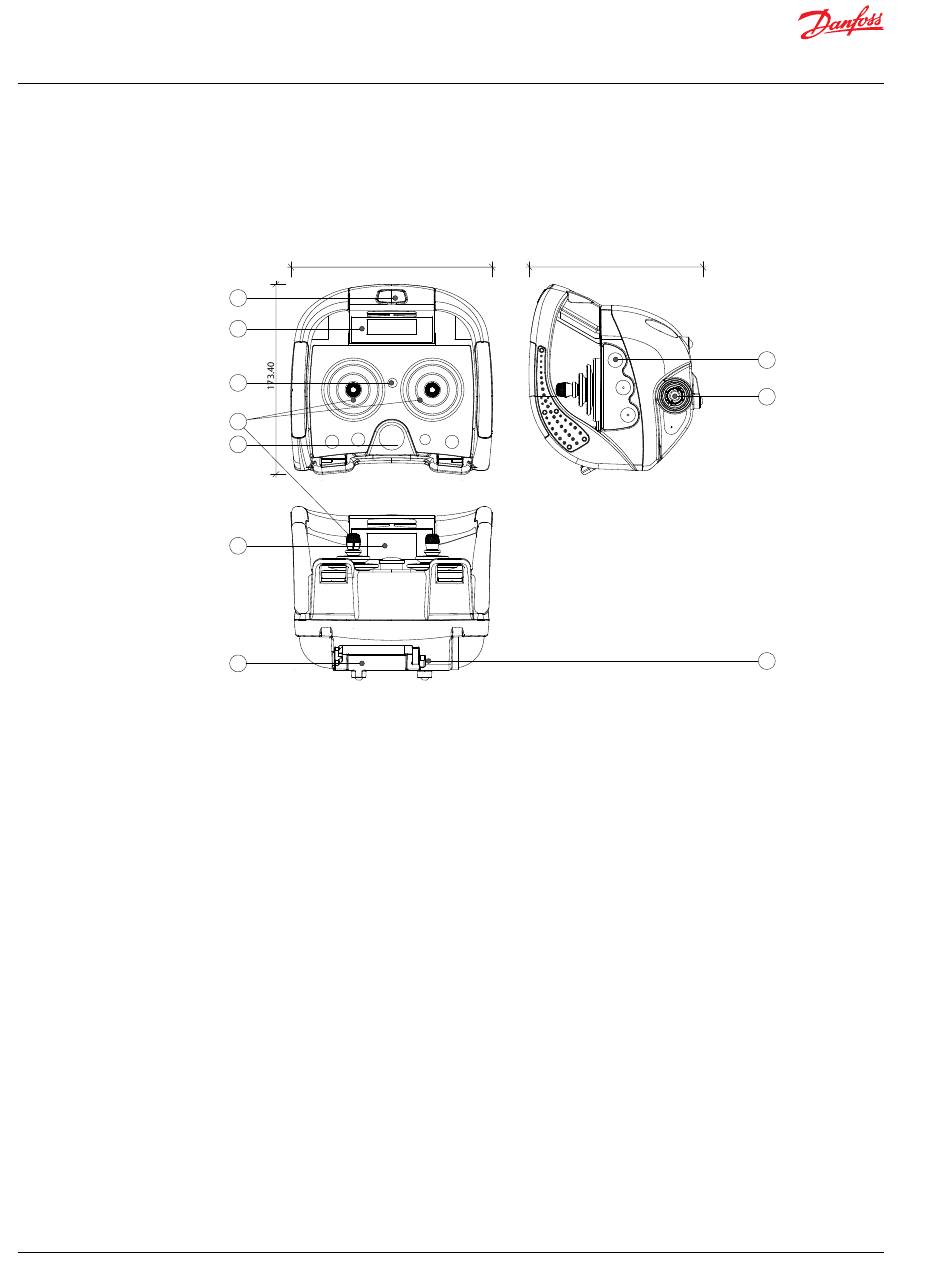

The illustration below details dimensions and highlights product components.
Dimensions in mm
184
6
1
2
3
5
9
8
1. Label for crane identification
2.
LED
3. Maneuver elements
4.
Multi-key or Key + START Button
5.
STOP button
6. Optional: range limiter
7.
External and extractable EEPROM module
8. Battery
9.
Monochrome display
10. Lateral push buttons
158.70
10
4
7
