MP08A Receiver

Technical description

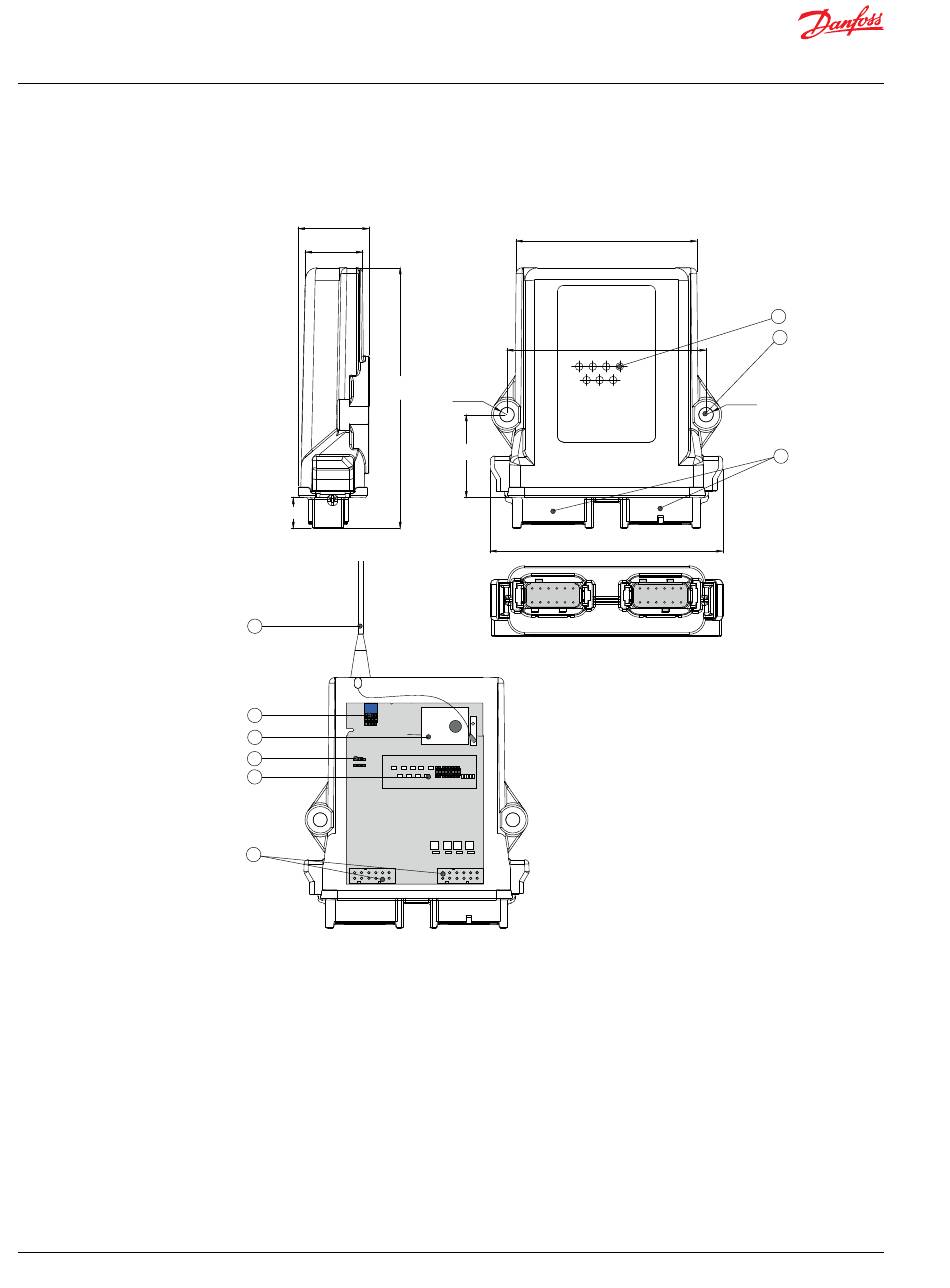

MP08 dimensions and identification
6 | © Danfoss | March 2022
Dimensions in mm
35.99
29.20
133.03
15.75
3
4
5
8
6
7
1. Fixing slots (fixed assembly or anti-vibration)
2. DEUTSCH connector
3. External antenna
4. Removable internal EEPROM
5. RF Module
6. External signaling LEDs
7. DEUTSCH connector pinout
8. Analog input configuration jumpers
92.25
101.60
3.70Ø
42.27
118.73
A
6
1
3.70Ø
2
B
BC292475492602en-000201
