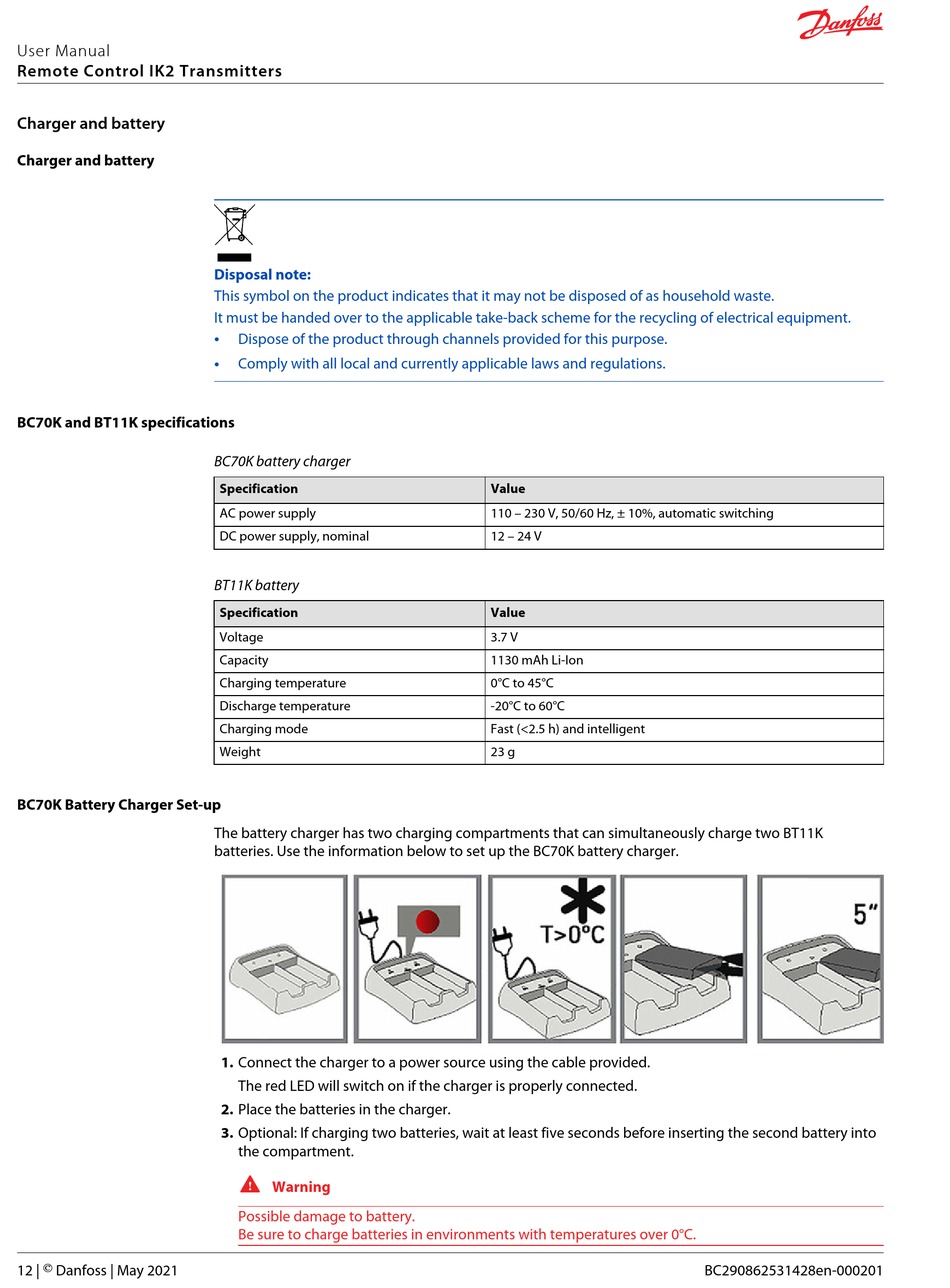

User Manual
Remote Control IK2 Transmitters
Charger and battery
Charger and battery
BC70K and BT11K specifications
BC70K Battery Charger Set-up
12 |
©
Danfoss | May 2021
Disposal note:
This symbol on the product indicates that it may not be disposed of as household waste.
It must be handed over to the applicable take-back scheme for the recycling of electrical equipment.
•
Dispose of the product through channels provided for this purpose.
•
Comply with all local and currently applicable laws and regulations.
BC70K battery charger
Specification
AC power supply
DC power supply, nominal
BT11K battery
Specification
Voltage
Capacity
Charging temperature
Discharge temperature
Charging mode
Weight
The battery charger has two charging compartments that can simultaneously charge two BT11K
batteries. Use the information below to set up the BC70K battery charger.
1. Connect the charger to a power source using the cable provided.
The red LED will switch on if the charger is properly connected.
2. Place the batteries in the charger.
3. Optional: If charging two batteries, wait at least five seconds before inserting the second battery into
the compartment.
W
Warning
Possible damage to battery.
Be sure to charge batteries in environments with temperatures over 0°C.
Value
110 – 230 V, 50/60 Hz, ± 10%, automatic switching
12 – 24 V
Value
3.7 V
1130 mAh Li-Ion
0°C to 45°C
-20°C to 60°C
Fast (<2.5 h) and intelligent
23 g
BC290862531428en-000201
