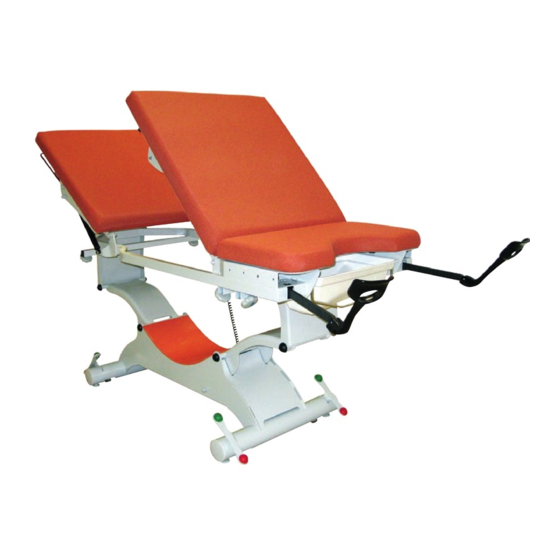

- Page 1 VARIABLE HEIGHT COMBINED EXAMINATION TABLE 2060-10/2060-30 2064-10/2064-30 2065-10/2065-30 Model Shown : 2065-30...
- Page 2 Dealer’s Phone Number : Promotal Authorized Service Company : Serial number The descriptions and features in this user’s guide are deemed correct at the time of printing. Promotal reserves the right to change or to delete these models and procedures without prior notice.
-
Page 3: Table Of Contents
Table of Contents Important Information Safety symbols Power supply Electromagnetic interferences Installation Instructions Material delivered in cardboard packaging Fixed articles, furniture, wall furniture Dismounted material Products delivered on wooden palettes Storage condition Unpacking Authorized CE representative Instructions for Use Warning General maintenance Maintenance Instructions Painted surfaces... - Page 4 the levellers Adjusting the levellers Using the Block’n Roll ® Plastic pan (6 liters) Paper roll Installing the paper roll Removing the upholstery Accessories Rails 25x10 with clamps Installing the rail Installing the Clamps Clamps (reference 25351) Installing the Clamps Clamps (reference 166) Using the Clamps...
- Page 5 Options Using the castors Face slit in head cushion Options Lifespan Exchangeable components Obligatory/specific maintenance Maintenance Notebook Notes Warranty Information warranty Obligations Exclusions Exclusive remedy No authorization Declaration of Conformity...
-
Page 6: Important Information
Electromagnetic interferences This Promotal examination equipment was designed and built in order to minimize electroma- gnetic interferences with other devices. If interferences are noted, it is necessary to withdraw the parts causing the interference and/or to connect the equipment on isolated circuits. -
Page 7: Installation Instructions
Installation Instructions Material delivered in cardboard packaging Small, lightweight, easy to Heavy or cumbersome material � � handle materiel requiring the use of lifting gear In this case, the products can be easily handled In this case, it is possible to use a fork lift truck, without any lifting gear, taking care to position provided it is used correctly. -
Page 8: Storage Condition
Note : Authorized CE representative Countries in the EEC should direct all questions, incidents, and complaints to Promotal’s Authorized CE representative listed below : Promotal 22, Rue De St. Denis 53500 Ernee, FRANCE Phone: + 33 243 05 6895 Fax: + 33 243 05 7200 User’s Guide... -
Page 9: Instructions For Use
The instrument systems, control unit, adaptor etc.) be opened. must be used only for the specifi c purpose for PROMOTAL cannot be held responsible for which it is designed, and which is described in any damage resulting from the instructions not our literature. -
Page 10: Stainless Steel Products
Stainless steel products Cleaning and Maintenance : For maintenan- useful in getting rid of grease marks. ce of stainless steel products, periodic clea- The usual solvants (benzene, methyle- ning of the surface is suffi cient. This operation ne chloride, white spirits etc.) as well as is necessary to keep the products clean, but is domestic or specially prepared indus- facilitated by the quality of stainless steel sur-... -
Page 11: Dimensions
Dimensions User’s Guide... -
Page 12: User's Guide - Examination Couch
User’s Guide – Examination Couch Features 200kg Patient weight capacity (tested at a dynamic weight of 250kg and a static weight of 800kg) Electric variable height from 4cm to 5cm Steel frame with light grey epoxy finish Trendelenburg / Reverse Trendelenburg Gas-spring assisted external backrest Electric central backrest 3cm upholstery width with reinforecd sides Removable seamless seat upholstery Upholstery with class M1 flame retardant covering Hand control Adjustable levellers under base Removable sliding plastic pan (6 litre capacity) 2 paper roll holders (max length 60cm - ø... -
Page 13: Using The Couch
Using the Couch Safety : For safety reasons, and in order to avoid malfunctioning, no objects should be placed under the seat cushion or between the moving parts of the couch. Connecting the hand control Possible to connect 3 controls. Using the hand control To achieve the desired position, simply apply and maintain pressure on the hand control. -
Page 14: Adjusting The Height
Adjusting the height Down Press on the hand control for the desired position. Adjusting the trendelenburg position Press on the hand control for the desired position. Down User’s Guide... -
Page 15: Adjusting The Backrest Tilt
Adjusting the backrest tilt Press on the hand control for the desired position. Down Adjusting the backrest tilt With one hand, move the lever (L1) either up or down, with the other hand lower or raise the backrest to the desired position. Caution The patient must not lean with his / her full weight on the backrest during this procedure. -
Page 16: Integrated Stirrups
Integrated stirrups (Only for models 2065-10 and 2065-30) Installing the integrated stirrups 1. Pull the stirrup out, then unfold 2. Lift the stirrup slightly, then move it left or right as desired. 3. Release stirrup to lock in position. Be sure the stirrups are locked in place before using. -
Page 17: The Levellers
the levellers Adjusting the levellers Screw or unscrew the leveller (P) to the desi- red height. Block’n Roll ® Using the (for models 2065-30, 2060-30 and 2064-30) Caution : Must not be use with the patient, only to be used to move the This system is table for cleaning purposes. -
Page 18: Paper Roll
Paper roll Installing the paper roll The paper roll is positioned on an axis with spring clips at each end. Press these springs to remove the paper roll. Cover the upholstery with paper before use. Removing the upholstery Raise the base by doing the 2 studs (P). (Operation to be carried out for regular cleaning) Accessories Rails 25x10 with clamps... -
Page 19: Clamps (Reference 25351)
Clamps (Standard for models 2060-10, 2064-10, 2060-30 and 2064-30) (only accessoires for models 2065-10 and 2065-30) (reference 25351) Installing the Clamps On each side : 1x D117300 Clamp 2x VXM02 Screw TH x20 2x ECX4008 Safety nut D.8 2x RDN0008 Grey nut cover D.8 Tighten the screws before use. Using the Clamps Loosen the nuts (V) and Installing the accessories. -
Page 20: The Pair Of Stirrups
The pair of stirrups (Ø 18) (reference 12850 only for models 2065-10 and 2065-30) (reference 2061-50 for models 2060-10 and 2060-30) Installing the stirrups Unscrew the screws (1) (on both sides of the table) and insert the pair of stirrups. The height can be adjusted and the stirrups can pivot on the vertical axis (2). -
Page 21: Arm Rest
Arm rest (Ø 16) (reference 2536) Adjusting the arm rest The standard arm rests can be adjusted in height (H) and can be positioned in all directions due to the ball and socket joint underneath the armrest. To adjust the armrests, loosen the screws (VS) and position as desired. -
Page 22: The Pair Of Barriers
The pair of barriers (reference 85114-01) Installing the pair of barriers 1. Unscrew the screw. 2. Insert the pair of barriers. Approach the barriers to obtain a spacing of 25 mm beteween the barriers and the upholstery. 3. Tighten the screw. Caution 25 mm (acceptable spacing indicated by ISO 13852 : 1996 norm). -
Page 23: Led Lamps
LED lamps (Ø 16) (reference 999-81 and 999-85) Adjusting the LED lamps LED lamps can be adjusted in height and in all directions due to its flexible arm. Power Color Ø 16 fixation Black -1 LED lamp White -5 Caution Clamps are necessary to install these accessories. (ref. -
Page 24: Plastic Bowl With Drainage Tube
Plastic bowl with drainage tube. (reference 2061-20) The plastic pan is removable to ensure easy Sliding plastic removable bowl ( liters) with cleaning, it can be moved towards the front and drainage tube (150 cm). also be placed under the seat. Pull the handle underneath the seat, to ... -
Page 25: Accessories
Accessories 2061- Pair of 25x10 rails with clamps 2065- 25351 Pair of clamps (only for models 2065-10 and 2065-30) Pair of clamps Pair of legrests Paire of s/s stirrups Pair of hand grips Pair of covers for legrest (for 840) 1250 Pair of stirrups with coating 2061-50... -
Page 26: Face Slit In Head Cushion
Face slit in head cushion (reference 2230) Options 2230 Face slit in head cushion 1036 Set of 4 double castors with brakes ø 50 User’s Guide... -
Page 27: Lifespan
This material was designed for a lifespan of 10 years (except for wearing parts) in normal working conditions. This duration may change depending on frequency of use. THE CONDITION Of THE EXAMINATION COUCH SHOULD BE CHECkED AT LEAST ONCE A yEAR. Exchangeable components For all interventions, please contact your Promotal distributor, indicating the serial number on the sticker at the back of your examination couch. Obligatory/specific maintenance Once per year : • Check the screws and the rods. - Page 28 User’s Guide...
-
Page 29: Notes
Notes User’s Guide... -
Page 30: Warranty Information
No Authorization No person or fi rm is authorized to create for Promotal any other obligation or liability in connection with the products. -
Page 31: Declaration Of Conformity
22, rue de Saint Denis de Gastines, 53500 Ernée - FRANCE Tél. : +33 (0)2 43 05 68 95, Fax : + 33 (0)2 43 05 72 00, www.promotal.com S.A.S. au capital de 4 290 660 € - R.C.S. LAVAL Siret 421 156 720 00011 - TVA FR 67 421 156 720 - APE 331B... - Page 32 For more than 40 years, PROMOTAL has built its reputation on the quality of its products. PROMOTAL offers a complete range of medical equipment from stretchers, dialysis and blood-drawing chairs to examination and gynecology tables. PROMOTAL - FRANCE www.promotal.com DIC2065-10_4907EN...
