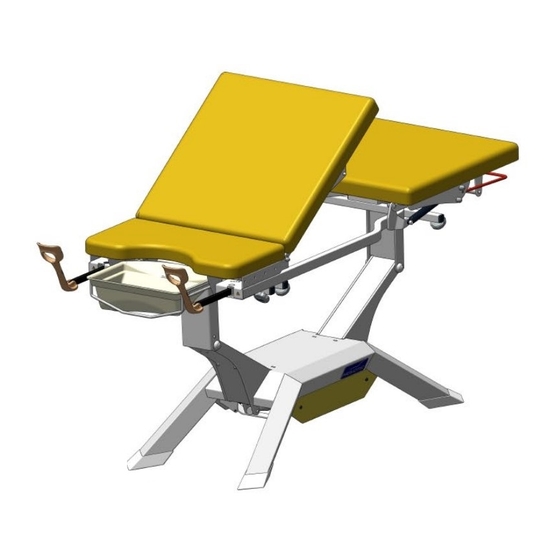

- Page 1 User’s Guide Model Shown : 3065-40 Electric Examination Couch 3060-40 / 3065-40 / 3060-50 / 3065-50...
- Page 2 Operating Manual are deemed correct at the time of 22, rue de Saint-Denis de Gastines printing. B.P. 26 - 53500 ERNÉE Cedex Promotal , however, reserves the right to modify its models FRANCE and its procedures or render them obsolete without notice. Tél. :...
-
Page 3: Table Of Contents
Summary Important information Safety symbols Applied parts Electromagnetic interference Unpacking precautions Medical device delivered on a wooden pallet Storage conditions Conditions of use Unpacking and Installation Step by step Check Remark: Authorised EC Representative Cleaning protocol Warning Cleaning/Disinfecting User manual – iDuolys Intended purpose Patient weight capacity Protection against penetration of liquids... - Page 4 Summary Pair of Clamps (reference 166) Arm rest (reference 2536) Pair of stirrups (reference 850) Installing the stirrups Pair of legrests (reference 840) Installing the legrests Pair of covers for legrests 2 hook IV pole (reference 985-01) Installing the IV pole Auto-blocking I.V.
- Page 5 (reference 3092-01) Charging the accumulator Accumulator safety symbols Technical characteristics of the accumulator Circuit breaker (reference 3058-01) Using the circuit breaker Reel for electric cable (reference 3032-01) Supplemental power socket (reference 30400-01) Using the supplemental power socket Equipotential terminal (reference 2059-01) Replacing used batteries in the foot pedal (battery reference (x2): LR03 - AAA Alkaline 1.5V) Wireless foot pedal 3051-20...
-
Page 6: Important Information
Important information Safety symbols Warning sign Information marked with this symbol must be read and strictly complied with! Remark Draws your attention to a procedure, practice or situation. Maximum number of Correct orientation for Humidity limitation stacked pallets transportation Atmospheric pressure Temperature Fragile limitation... -
Page 7: Applied Parts
Electromagnetic interference This Promotal medical device was designed and built to minimize electromagnetic interference with other equipment. If interference is, however, observed, you must remove the apparatus causing the interference from the room and/or plug it into an isolated circuit. -
Page 8: Unpacking Precautions
Unpacking precautions Medical device delivered on a wooden pallet The medical device positioned on a wooden pallet ensure that the forklift truck is correctly positioned may be easily moved using a forklift truck, as long in relation to the pallet, and that the unit is stable. as this is used correctly. -
Page 9: Check
2) Check the external components for any Remark: Authorised EC Representative Within the European Union, all problems, complaints or questions should be addressed to the Authorised EC Representative of Promotal indicated below: Promotal 22, rue de Saint-Denis de Gastines 53500 Ernée,... -
Page 10: Cleaning Protocol
• The use of abrasive powders or any other abrasive product should be avoided. • High-pressure cleaning is forbidden. Under no circumstances shall Promotal be held liable under warranty for any damage caused by non-compliance with the use instructions for a detergent- disinfectant. -
Page 11: User Manual - Iduolys
User manual – iDuolys Intended purpose This medical device is designed for use in professional premises only: • Medical office • Health establishment This medical device must not be installed in domestic premises. This medical device is intended for general or specialist medical examinations and acts. Only health professionals (doctors, caregivers) and/or qualified members of the technical staff can handle or use the device. -
Page 12: Electrical Connection
User manual – iDuolys Electrical connection This medical device must be connected to the mains supply. • Connection to the mains supply : 120 V or 230 V (depending on the country) • Frequency : 50/60 Hz • Protection classification : Class 1/ type B device •... - Page 13 2005 1174 1567 2005 Mini Mini 1567 User’s Guide...
-
Page 14: Safety
Safety Caution To avoid malfunctions and for safety reasons, no objects must be left under the chair’s seat or between its moving frames. Caution the supply cable for this medical device may represent an obstacle and cause falls. Do not forget its presence when moving around the device once connected to the mains supply. - Page 15 Safety note Before using the medical device lowering control, ensure that no objects or obstacles are between the moving parts and the ground. Safety note When using the position memory function, movements can be interrupted by pushing on one of the command buttons for the couch or, as a last resort, by disconnecting the power supply cord.
-
Page 16: Using The Individual Control
Using the individual control Manual command Presentation Safety note When using the pre-programmed positions, (welcome, QE1, QE2, chair position, couch position), do not leave the patient on the couch without supervision. (save confirmation) Adjusting the height Adjusting the height (up) (down) Adjusting the height by holding Adjusting the height by holding... -
Page 17: Adjusting The Height
Adjusting the height The position below is obtained by pressing on the manual control. Down Adjusting the trendelenburg position The position below is obtained by pressing on the manual control. Down User’s Guide... -
Page 18: Adjusting The Backrest Tilt
Using the individual control Adjusting the backrest tilt The position below is obtained by pressing on the manual control. Down Adjusting the backrest tilt With one hand, move the lever (L1) either up or The patient must not lean with his / down, with the other hand lower or raise the backrest her full weight on the backrest during to the desired position. -
Page 19: Position Qe1 Et Qe2
Position QE1 et QE2 The QE1 and QE2 buttons are factory-set but cannot be modified. To enter a new position for buttons QE1 and QE2, simply adjust the couch to the desired position and then press and hold the QE1 (or QE2) button for 6 seconds. -
Page 20: Placing On Castors
Using the individual control Placing on castors (standard for model 3060-50, 3065-50) Safety note This position can be recalled by pressing and Unplug the power supply cable holding the button before moving the MD. Return to a standard position by pressing once on the button NB: This position cannot be modified. -
Page 21: Procedure For Registering Your Base Position
Procedure for registering your base position If there is a paper roll on the central backrest follow the instructions below. Move the couch into this position Lower the couch by pressing the button The paper roll comes into contact with the base of the couch and the seat rises two centimetres. Hold down the button for 6 seconds and wait until the LED flashes 5 times. -
Page 22: Using The Couch
Using the Couch Paper roll Installing the paper roll The paper roll is positioned on an axis with spring clips at each end. Press these springs to remove the paper roll. Cover the upholstery with paperbefore use. Caution follow the indications provided well obtain a greater longevity of the material. -
Page 23: Accessories
Accessories Only accessories designed and provided by Promotal for this medical device are authorised for use. Pair of Clamps (reference 166) Installing the Clamps Take the stopper (B) out of the square tube if necessary. Loosen the nuts (V), and put the pair of clamps ref.166 (E) into position in the square tubes. -
Page 24: Pair Of Stirrups
Accessories Only accessories designed and provided by Promotal for this medical device are authorised for use. Pair of stirrups (reference 850) Installing the stirrups Ensures good clamping with each Caution Clamps are necessary to install these accessories. (réf. : 166) -
Page 25: Hook Iv Pole
2 hook IV pole Caution (reference 985-01) Clamps are necessary to install these accessories. Installing the IV pole (réf. : 166) Ensures good clamping with each Auto-blocking I.V. pole Installing the IV pole (reference 2985-01) Unscrew the screw handle. Insert the I.V. pole and rescrew. Caution Clamps are necessary to install these accessories. -
Page 26: Headrest
Accessories Only accessories designed and provided by Promotal for this medical device are authorised for use. Headrest (reference 1102-10) Box spanner of 13 Rails 25x10 with clamps (Only accessories for models 23065-40, 3065-50, 3065-60) (reference 2065-78) N°5 Allen key Installing the rail... -
Page 27: Vise
Vise (reference 878-12) Caution Mounting this accessory requires the use of rails (25x10) Compatible with accessories: Ensures good clamping with each ref. 840, 850, 2536, 985-01, 2985-01. User’s Guide... -
Page 28: The Pair Of Barriers
Accessories Only accessories designed and provided by Promotal for this medical device are authorised for use. The pair of barriers (reference 85114-01) Installing the pair of barriers 3. Tighten the screw. 1. Unscrew the screw. 2. Insert the pair of barriers. Approach the barriers to obtain a spacing of 25 mm beteween the barriers and the upholstery. -
Page 29: Plastic Bowl With Drainage Tube
Plastic bowl with drainage tube (reference 2061-20) Sliding plastic removable bowl (6 liters) with drainage tube (150 cm). The plastic pan is removable to ensure easy cleaning, it can be moved towards the front and also be placed under the seat. •... -
Page 30: Foot Pedal 3051-10, 3051-20 (Wireless)
Accessoires Only accessories designed and provided by Promotal for this medical device are authorised for use. Foot pedal 3051-10, 3051-20 (Wireless) Presentation Safety note When using the pre-programmed positions, (welcome and QE1), do not leave the patient on the couch without supervision. -
Page 31: Setting Up The Control Unit 3051-10
Setting up the control unit 3051-10 User’s Guide... -
Page 32: Options
Options Wireless manual control 3041-20 for ref. 3060-40 3065-40 and 3041-25 for ref. 3060-50 and 3065-50 Safety note When using the pre-programmed positions, (welcome, QE1, QE2, chair position, couch position), do not leave the patient on the couch without supervision. (save confirmation) Adjusting the height Adjusting the height... -
Page 33: Accumulator
Accumulator (reference 3092-01) (Built in to the device’s power supply system) (Note: the couch can functions the same in «Battery mode» or in «Mains mode». Charging the accumulator Before using the chair for the 1st time, it is recommended to leave it plugged into the mains for 24 hours to enable the accumulator to charge fully. -
Page 34: Circuit Breaker
Options Circuit breaker (reference 3058-01) Using the circuit breaker Withdraw the key to completely immobilise the Re-insert the key to use the couch again. couch. Reel for electric cable (reference 3032-01) Leaving the cable Arranging the cable User’s Guide... -
Page 35: Supplemental Power Socket
Supplemental power socket (reference 30400-01) Available exclusively and standard EU & UK Safety note When a medical device is connected to the supplemental power socket, the system becomes an medical electrical device in accordance with Standard EN 60601-1. It is the responsibility of the user to ensure compliance of the medical electrical system with standard EN 60601-1 (Article 16) Using the supplemental power socket... -
Page 36: Equipotential Terminal
Options Equipotential terminal (reference 2059-01) Ce dispositif médical est de classe électrique 1. Il doit être raccordé uniquement à un réseau d’alimentation équipé d’une terre de protection. Remark the equipotential terminal allows the connection of an equipotential conductor to bring all the different elements of an electro-medical system to the same potential. -
Page 37: Replacing Used Batteries In The Foot Pedal
Replacing used batteries in the foot pedal (battery reference (x2): LR03 - AAA Alkaline 1.5V) Wireless foot pedal 3051-20 Wireless foot pedal 3041-20 / 3041-25 User’s Guide... -
Page 38: Lifespan Of The Medical Device
Medical device end of service life Your dealer is responsible for the recovery and end of life treatment of this device. If necessary, do not hesitate to contact Promotal. We can propose solutions to treat this equipment in the best conditions. -
Page 39: Maintenance Notebook
Maintenance notebook User’s Guide... -
Page 40: Notes
Notes User’s Guide... - Page 41 User’s Guide...
-
Page 42: Warranty Information
No Authorization No person or fi rm is authorized to create for Promotal any other obligation or liability in connection with the products. THIS WARRANTY IS PROMOTAL’S ONLY WARRANTY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. - Page 43 22, rue de Saint-Denis de Gastines, 53500 Ernée - FRANCE Tél. : +33 (0)2 43 05 17 76, Fax : + 33 (0)2 43 05 72 00, www.promotal.com S.A.S. au capital de 4 290 660 € - R.C.S. LAVAL Siret 421 156 720 00011 - TVA FR 67 421 156 720 - APE 3250A...
- Page 44 PROMOTAL - FRANCE www.promotal.com DIC3060-40_2319EN...
