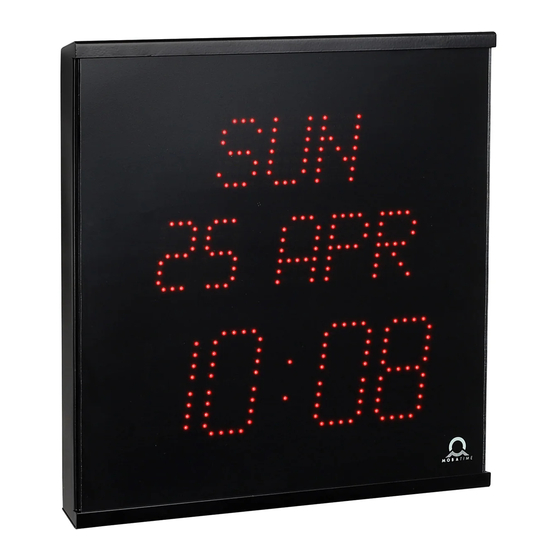

INSTRUCTION MANUAL
State-of-the-art technology digital clock
ECO-M-DK
© MOBATIME
BE-801317.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ECO-M-DK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mobatime ECO-M-DK

Summary of Contents for Mobatime ECO-M-DK

  • Page 1 INSTRUCTION MANUAL State-of-the-art technology digital clock ECO-M-DK © MOBATIME BE-801317.00...
  • Page 2 It is prohibited to reproduce, to store in a computer system or to transfer this publication in a way or another, even part of it. The copyright remains with all the rights with BÜRK MOBATIME GmbH, D-78026 VS-Schwenningen and MOSER-BAER AG – CH 3454 Sumiswald / SWITZERLAND.

  • Page 3: Table Of Contents

    Control of the stopwatch via keyboard ..................... 28 The stopwatch menu ..........................28 Setting of the initial time for counting down ................... 28 Control of the stopwatch using IR remote control ................... 29 The stopwatch menu ..........................29 © MOBATIME 3 / 52 801317.00...
  • Page 4 10.2.1 Synchronization only – P5 mode 2 and 4 ..................36 10.2.2 10.3 Slave clock controlled by MOBATIME code, MOBALine, or ActiveDCF ..........36 10.4 Slave clock controlled by IF482 over RS485 ..................36 10.5 Slave clock controlled by supervised RS485 ..................37 11 NTP and PoE clock operation ........................

  • Page 5: Description

    • display of intermediate time values, "freezing" of display, cumulated intermediate time • counting in steps of 1 minute, 1 second or 1/100 seconds • operation via wired keyboard or remote IR controller © MOBATIME 5 / 52 801317.00...
  • Page 6 DHCP string for automatic configuration of all clock parameters when connected to network • configuration and monitoring using MOBA-NMS software or SNMP • firmware update remotely through the network using the TFTP protocol • IPv6 support © MOBATIME 6 / 52 801317.00...

  • Page 7: Assembly

    Insert the BATT jumper in order to enable the RTC backup (doesn’t apply to clocks with supercapacitor option). • Connect the cable from Slave clock to the Master clock. • Mount the plexiglass and bottom cover. © MOBATIME 7 / 52 801317.00...

  • Page 8: Assembly Diagram

    Assembly diagram Single sided clock Double sided clock © MOBATIME 8 / 52 801317.00...

  • Page 9: Mechanical Drawingm

    Mechanical drawing Single sided clock Double-sided clock © MOBATIME 9 / 52 801317.00...

  • Page 10: Connecting Terminal Block

    Connecting terminal block Notes: 1. For PoE version is Ethernet cable plugged directly into the connector on the control board (this version is without terminal block © MOBATIME 10 / 52 801317.00...

  • Page 11: Control Pcb

    Control PCB © MOBATIME 11 / 52 801317.00...

  • Page 12: Function Of The Plug Connectors

    Indication of receiving the DCF signal  STATE LED state indication  POWER LED power indication Connection of the cable ends TEMP wire connection – 1 or 2 thermometers CTRL wire connection RS-485 wire connection © MOBATIME 12 / 52 801317.00...

  • Page 13: Control Of The Clock Using Keyboard Or Pushbuttons

    Function of the pushbuttons in the “Time and date “setting mode”. PB1S advancement to another item to be set up PB2S increase of the item to be set up by 1 PB2L continuous increase of the current item © MOBATIME 13 / 52 801317.00...

  • Page 14: Menu For The Setting Of The Clock Parameters

    “time + humidity 1” of the first sensor in seconds. Push PB1S.The display shows the following: Enter a time constant to display the “time + pressure 1” of the first sensor in seconds. Push PB1S.The display shows the following: © MOBATIME 14 / 52 801317.00...

  • Page 15: Offset Setting For Time Synchronization

    The display shows the following: Enter the four octets of the IP address step by step. Switch to next digit or octet respectively by pushing the PB1S. Octets are marked by letters A, b, C © MOBATIME 15 / 52 801317.00...

  • Page 16: Manual Setting Of The Subnet Mask

    PB1S button. Octets are marked by the letters A, b, C and d. Pushing the PB1L button, the entered values are stored and the clock returns to the menu item P23. © MOBATIME 16 / 52 801317.00...

  • Page 17: Submenu For The Setting Of The Ntp Unicast Synchronization

    The menu page no. 2 is opened after saving the menu page no. 1 by pushing the PB1L button. After saving the menu page no. 2 by pushing the PB1L button, the clock returns to the normal display mode. © MOBATIME 17 / 52 801317.00...

  • Page 18: Control Of The Clock Using Ir Remote Control

    Note: When the time zone of displayed time and date (menu item P7) is set to the values U1 – U7 or U, the entered time and date is taken as UTC. © MOBATIME 18 / 52 801317.00...

  • Page 19: Menu For The Setting Of The Clock Parameters

    Pushbuttons 0–9 entry of the corresponding numerical value Note: During entering the numbers in the octets of the IP addresses the editing to the next digit moves automatically. © MOBATIME 19 / 52 801317.00...

  • Page 20: Submenu For User-Specific Setting Of Time Constants For Data Switchover

    The setting unit is 1 / 100 second. Setting range -9.99 to +9.99. Push OK to save the setting and return to menu item P4. Push ESC to return to P4 without storage of the data © MOBATIME 20 / 52 801317.00...

  • Page 21: Submenu For Network Services Configuration

    4.2.6 Manual setting of default gateway IP address Choose the item P22 in the main menu and push the SET button to enter the submenu for setting the default gateway IP address, the item to be set is blinking. © MOBATIME 21 / 52 801317.00...

  • Page 22: Submenu For Setting The Multicast Group Address

    Choose the menu item P25 and then enter the submenu by pushing the SET for display IPv6 address. In the submenu, select the desired IP address to display and push the SET button to display the first part of the IPv6 address. © MOBATIME 22 / 52 801317.00...
  • Page 23 001.2. – fourth part of the IPv6 address (011b) – fifth part of the IPv6 address f6.8e (100b) – sixth part of the IPv6 address 38.ff. (101b) – seventh IPv6 address fe.e.8 (110b) 4a.1.3 – eighth part of iPv6 address (111b) © MOBATIME 23 / 52 801317.00...

  • Page 24: The Clock Menu Table

    0 - 64, A (automatically) synchronization source Type of 1 - 10, A (automatically) synchronization auto detection, applicable for: DCF, the Mobatime serial source code, MOBALine, ActiveDCF or NTP autonomous operation without synchronization synchronization by DCF signal the MOBATIME serial code...
  • Page 25 19 200 Baud 38 400 Baud 57 600 Baud P 15 Transmission Number of data bits parameters for RS485 P 16 Number of stop bits P 17 Parity n no parity o odd E even © MOBATIME 25 / 52 801317.00...
  • Page 26 • Items P18 to P25 available in NTP, PoE variants only • Adjusting the brightness in manual mode to the maximum can reduce the life of displays in the long run. We recommend leaving the automatic brightness control set. © MOBATIME 26 / 52 801317.00...

  • Page 27: Menu Page No. 2 - Display Language Parameters

    First address received from DHCPv6 e.g. 2001:0db8:0000:0012:0000:0000:0000:1000 MANU Manually set address e.g. fec0:1234:0000:0000:f68e:38ff:fee8:4a13 PrEF Prefix of manually set address Range 0 – 128, default 64 GATE Default gateway obtained from SLAAC not yet e.g. 2001:0db8:0000:0012:0000:0000:0000:0001 supported © MOBATIME 27 / 52 801317.00...

  • Page 28: Control Of The Stopwatch Via Keyboard

    Data order 1/100 second <Minute>:<Second>.<Hundredths of second> 1 second <Hours>:<Minutes>:<seconds>. 1 minute <Hours>:<Minutes> 1 day <Days> By pushing the PB1L button, the entered values are stored and the clock returns to the “Stopwatch” display mode. © MOBATIME 28 / 52 801317.00...

  • Page 29: Control Of The Stopwatch Using Ir Remote Control

    © MOBATIME 29 / 52 801317.00...

  • Page 30: Setting Of Initial Time For Counting Down

    <Hours>:<Minutes>:<Seconds>. 1 minute <Hours>:<Minutes> 1 day <Days> By pushing the OK button, the entered values are stored and the clock returns to the “Stopwatch” display mode. By pushing ESC, the clock returns without storing. © MOBATIME 30 / 52 801317.00...

  • Page 31: Stopwatch Menu Table

    Counter reset (to zero), or return to a preset (PB1L) time followed with counter stop Triggering the counter (PB3S) HOLD Stopping the counter (PB1S) Resetting the counter or return to a preset (PB1L) time, with counter stop © MOBATIME 31 / 52 801317.00...
  • Page 32 Counting in periods after one day. A subtraction or an addition always takes place around midnight. Capacity of counting up to 9999 days. When counting is stopped, the dot is displayed after the last digit. © MOBATIME 32 / 52 801317.00...

  • Page 33: Local Time Calculation

    Display time and date according to chosen time zone server time zone, incl. daylight saving time This setting is suitable for NTP and PoE digital clocks controlled by MOBATIME NTP servers which support the time zone server functionality. © MOBATIME 33 / 52 801317.00...

  • Page 34: Calculation Using Time Zone Entries Preconfigured By Moba-Nms Software

    See the chapter 14 with actual Time zone definition table. If you want to use the zone outside the internal time zone table, follow the "Custom Time Zone settings" appendix © MOBATIME 34 / 52 801317.00...

  • Page 35: Non-Network Clock Operation

    Choose the item P4 in main MENU (chapter 5) and set the type of synchronization. The auto detection mode (P4:A), when the type of synchronization signal is set automatically, is applicable for DCF signal, Mobatime serial code, MOBALine, Active DCF. The permanently lit colon during the time display signalizes the clock is synchronized by the synchronization source.

  • Page 36: Synchronization Only - P5 Mode 2 And 4

    • The time setting with using the MOBATIME serial coded line or ActiveDCF takes place within at least 3 to 4 minutes, for MOBALine within 6 to 15 seconds. Slave clock controlled by IF482 over RS485 10.4...

  • Page 37: Slave Clock Controlled By Supervised Rs485

    • If the ECO-M-DK clock should be monitored set in menu item P8 unique address in the range 1 to 32. The value "L" means that the clocks are synchronized only (without monitoring).

  • Page 38: Ntp And Poe Clock Operation

    NTP server address 3 0.0.0.0 / 0:0:0:0:0:0:0:0 NTP server address 4 0.0.0.0 / 0:0:0:0:0:0:0:0 NTP request time [s] DNS server 0.0.0.0 / 0:0:0:0:0:0:0:0 SNMP manager 1 0.0.0.0 / 0:0:0:0:0:0:0:0 SNMP manager 2 0.0.0.0 / 0:0:0:0:0:0:0:0 © MOBATIME 38 / 52 801317.00...

  • Page 39: Network Parameters Assignation By Dhcp

    11.1.3 Manual setting through telnet • connect to the clock and make the needed settings by windows command telnet <IP address> example: telnet 192.168.0.190 • request for entering the password appears after connection (default password is 718084) © MOBATIME 39 / 52 801317.00...

  • Page 40: Setting Network Parameters Over Dhcpv6

    IP clock mode must be set to IPv6 mode (P18: 0/2). Menu item P25 must be set to 3 (default setting) or 1. The following SLAAC options can be processed: [3] Prefix info [5] MTU [24] Route info [25] RDNSS © MOBATIME 40 / 52 801317.00...

  • Page 41: Snmp

    The ECO-M-DK clock supports SNMP version 2c notifications and parameter reading and setting by means of SNMP GET and SET commands. This allows integrating the clock to a network management system. The ECO-M-DK clock (SNMP agent) can send alarm and alive notifications to a SNMP manager. The IP address of the SNMP manager can be provided to the clock by DHCP, Telnet, SNMP or the MOBA-NMS.

  • Page 42: Testing Mode, Parameter Reset

    Using the PB2 or + button on IR set the value behind the colon to 04 • Keep pushing simultaneously both buttons or the DISP button on IR, until the display shows FAC1 and clock makes reset © MOBATIME 42 / 52 801317.00...

  • Page 43: Firmware Update

    • In the terminal, open a valid COM port corresponding to the connected USB to TTL UART adapter. • Connect the jumper to the ISPE header (JP9). The terminal will then display the initial information about the firmware update. © MOBATIME 43 / 52 801317.00...
  • Page 44 • After successful file transfer, the terminal displays information about the received firmware. The firmware check is then started automatically, then the firmware is written to the clock processor and started. • Remove the jumper from the ISPE header. © MOBATIME 44 / 52 801317.00...

  • Page 45: Firmware Update Over Ethernet On Ntp And Poe Versions

    After entering the password, check if the firmware version is correct, if it isn’t, it is necessary to repeat the whole procedure. • Close the telnet window and end the program tftpd32 with the command exit. © MOBATIME 45 / 52 801317.00...

  • Page 46: Time Zone Table

    South Australia: Adelaide +9.5 Sun. Oct (02:00) Sun. Apr. (03:00) Northern Territory: Darwin +9.5 Brisbane, Guam, Port Moresby, Vladivostok Sydney, Canberra, Sun. Oct. (02.00) Sun. Apr. (03:00) Melbourne, Tasmania: Hobart UTC (GMT) UTC (GMT) © MOBATIME 46 / 52 801317.00...
  • Page 47 Time change from Standard time (Winter time) to Summer time DST → Standard: Time change from Summer time to Standard time (Winter time) Example: last Sun. Mar. (02:00) Switch over on the penultimate Sunday in March at 02.00 hours local time © MOBATIME 47 / 52 801317.00...

  • Page 48: Engineering Data Upravit

    Engineering data 15.1 Standard design of the clock Technical parameters ECO-M-DK height of the digits 75/50 Display number of digits 4/date ✓ Time display HH : MM day of week 2 or 3 characters month 2 characters Date display English, German, French, Czech, Slovak, Italian, Russian,...

  • Page 49: Accessories And Maintenance

    The following circumstances are excluded from the guarantee: inappropriate handling or interventions chemical influences mechanical defects external environmental influences (natural catastrophes) • Repairs during and after the guarantee period are assured by the manufacture © MOBATIME 49 / 52 801317.00...
  • Page 50 © MOBATIME 50 / 52 801317.00...
  • Page 51 © MOBATIME 51 / 52 801317.00...
  • Page 52 19 ch. du Champ-des-Filles, CH-1228 Plan-les-Ouates Tel. +41 34 432 46 46 / Fax +41 34 432 46 99 Tel. +41 22 884 96 11 / Fax + 41 22 884 96 90 moserbaer@mobatime.com / www.mobatime.com export@mobatime.com / www.mobatime.com SALES SWITZERLAND...
