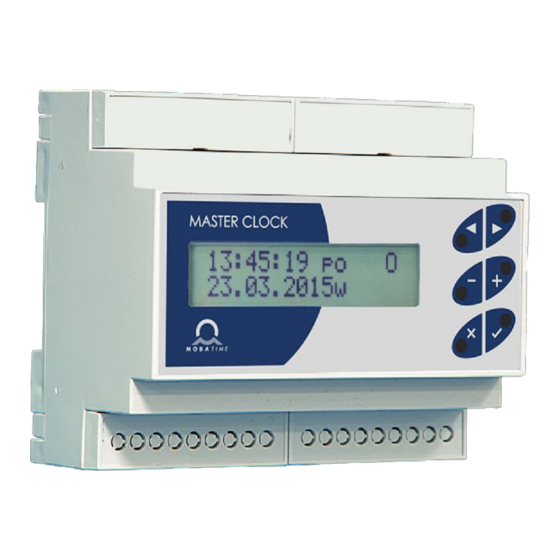

- Page 1 USER MANUAL Mini Master clock HN 60, HN 61 © MOBATIME 1/36 BE-801259.03-HN 60&61master clock...
- Page 2 © MOBATIME 2/36 BE-801259.03-HN 60&61master clock...
-
Page 3: Table Of Contents
7 SLAVE LINE MENU ........................ 22 7.1 First Page Options: ....................... 22 7.2 Setting the Line Status: ....................23 7.3 Setting minute hand movement mode ................23 8 CHANNEL SETTING - CHANNEL PARAMETERS ..............24 © MOBATIME 3/36 BE-801259.03-HN 60&61master clock... - Page 4 9.2 View and edit AUD program audio recordings .............. 28 10 STRIKING ..........................30 11 LOAD CHANNELS ........................31 12 TECHNICAL PARAMETERS ....................32 13 TIME ZONE TABLE ........................ 33 14 WARRANTY and REPAIRS ....................35 © MOBATIME 4/36 BE-801259.03-HN 60&61master clock...
-
Page 5: Description
1.1.4 Slave line freely adjustable for the transmission of: • MOBALine (for HN 60 / 61, HN 60a / 61a, HN 61.R only) • MOBATIME serial code • polarized minute impulses • polarized half-minute impulses •... -
Page 6: Other I / O
• mounting to a wall, IP 40 • 19“ rack mount type - 1U height (for HN 61.R / 61i .R only) for outdoor use • mounting to a wall, IP 65 © MOBATIME 6/36 BE-801259.03-HN 60&61master clock... -
Page 7: Accessories
Pb accumulator 12 V / 0.8 Ah, provides for continuous operation of the MASTER clock, including the connected slave clocks in case of a power outage, for a period of approx. 24 hours. © MOBATIME 7/36 BE-801259.03-HN 60&61master clock... -
Page 8: Installation
DCF output for HN 61/ HN 61i GPS SMA connector for GPS antenna, for HN 61/ HN 61i only USB for connecting flash memory with switching programs LED CH1 channel status indication LED DCF DCF reception indication © MOBATIME 8/36 BE-801259.03-HN 60&61master clock... -
Page 9: Rack Variant
AUDIO line audio output, 3.5 mm jack connector USB for connecting flash memory with switching programs and audio files LEDs POWER power present indication SYNC synchronization status indication ALARM active alarm indication © MOBATIME 9/36 BE-801259.03-HN 60&61master clock... -
Page 10: Slave Line Connection
PCs, TV and radio receivers or in places surrounded with thick walls or into underground or cellar areas. 2.6 GPS Antenna connecting The magnetic GPS antenna can be connected to the HN 61 variant. © MOBATIME 10/36 BE-801259.03-HN 60&61master clock... -
Page 11: Switching Channel
School bells or external equipment can be powered with 24 V DC. Fig .: Connection of school bells Fig .: Connection of external devices with 230 VAC power supply 2.8 Connecting the striking module Note: Only for the rack version © MOBATIME 11/36 BE-801259.03-HN 60&61master clock... -
Page 12: Lcd Display - Information Screens
DCF or GPS synchronisation signal VERSION information about Master clock model and SW version Button function: switching between information screens return to MASTER screen Note: The button function is different in each screen. © MOBATIME 12/36 BE-801259.03-HN 60&61master clock... -
Page 13: The Master Screen
Enter the date in the dd yy form. Confirm the values set up by pushing the button. Day of the week and DST status are set automatically according to the selected time zone. © MOBATIME 13/36 BE-801259.03-HN 60&61master clock... -
Page 14: The Line Screen
LINE screen. (Line type settings are described in Chap.7.1.) Button function: move around items change the blinking item (while holding auto load) save the entered values and return to the LINE screen return without saving © MOBATIME 14/36 BE-801259.03-HN 60&61master clock... - Page 15 Set slave pulse line time in following format: minute impulse line hh : mm half-minute impulse line hh : mm: 00 or hh : mm : 30 seconds impulse line hh : mm : ss © MOBATIME 15/36 BE-801259.03-HN 60&61master clock...
-
Page 16: Channel Screen
3.3.3 MUTE screen - Advance / delay switching after audio output Button function: entry to advance / delay setting after audio output (setting is described in chap. 8.3) long press lock / unlock channel © MOBATIME 16/36 BE-801259.03-HN 60&61master clock... -
Page 17: Striking Screen
Available for rack version only. This is displayed when push 3x the button from MASTER screen Button function: entry to striking set up menu (setting is described in chap. 10) long press block / unblock striking function © MOBATIME 17/36 BE-801259.03-HN 60&61master clock... -
Page 18: Synchronization Quality Screen
3.5.1 DCF 3.5.2 GPS 3.6 VERSION screen This is displayed when push the button 4x (5x) from MASTER screen. Button function: entry into service menu - only for service purposes © MOBATIME 18/36 BE-801259.03-HN 60&61master clock... -
Page 19: Main Menu
Load channels load pre-prepared switching programs into the main clock. Button functions: change item confirm selection and enter settings return to the MASTER screen Main menu structure © MOBATIME 19/36 BE-801259.03-HN 60&61master clock... -
Page 20: Synchronization
HN 60 and GPS for HN61. In the MAIN Menu press the button to select SYNCHRONIZATION. Button functions: change the blinking item save the entered values and return to MAIN menu return to the MAIN menu without saving © MOBATIME 20/36 BE-801259.03-HN 60&61master clock... -
Page 21: Set Time Zones
SET TIME ZONES This function is used to set time zones of slave line, channel, local time, and synchronization source. See the Mobatime Time zone table in chapter 12. In the MAIN Menu press the button to select Time Zones. -
Page 22: Slave Line Menu
1 / 2m for clocks controlled by half minute pulses for clocks controlled by second pulses code for clocks controlled by MOBATIME code for clocks controlled by MOBALine © MOBATIME 22/36 BE-801259.03-HN 60&61master clock... -
Page 23: Setting The Line Status
7.3 Setting minute hand movement mode The following modes can be set for MOBALine: continuous fluent hand movement minute hand moves in steps of one minute ½ minute hand moves in steps of 1/2 minute © MOBATIME 23/36 BE-801259.03-HN 60&61master clock... -
Page 24: Channel Setting - Channel Parameters
00:01-15:59 (mm:ss) on / off press to turn on, press to turn off push button the channel is switched on while the button held (default) © MOBATIME 24/36 BE-801259.03-HN 60&61master clock... -
Page 25: Switching Illumination By Calculated Sunrise And Sunset Time
0 ° 00 'to 179 ° 59' E (W) longitude Selection of the channel: CH1, --- CH1, CH2, --- for Rack version only Note: the channel cannot be selected if it is already set for manual or mute switching. © MOBATIME 25/36 BE-801259.03-HN 60&61master clock... -
Page 26: Switching Mute Signal
0-99 (0,0 - 9,9 s), advance before audio output (100 ms unit) E.g. 10 means that MUTE turns on a second earlier post 0-99 (0.0 - 9.9 s), delay after audio output (100 ms unit) E.g. 05 means that MUTE switches off 500 ms later © MOBATIME 26/36 BE-801259.03-HN 60&61master clock... -
Page 27: Week Program
Record editing button functions: move between items change the blinking item save the edited record return to list of records without saving © MOBATIME 27/36 BE-801259.03-HN 60&61master clock... -
Page 28: View And Edit Aud Program Audio Recordings
Playback of audio file is available in rack variants only. Playback is possible only from connected USB flash disk. Button functions: move between records add new record delete of selected record edit of selected record return to channel selection © MOBATIME 28/36 BE-801259.03-HN 60&61master clock... - Page 29 16bit • sampling rate: 48 000 Hz • name of file: number from 1 to 999 with suffix wav, e.g.: “25.wav” Place this prepared audio file to USB flash drive, to root directory. © MOBATIME 29/36 BE-801259.03-HN 60&61master clock...
-
Page 30: Striking
¼ and the hour striking (01-99) Button functions: move between the items change the blinking item save the entered values and return to MAIN menu return to MAIN menu without saving © MOBATIME 30/36 BE-801259.03-HN 60&61master clock... -
Page 31: Load Channels
If the required file is not available, "0" records will be displayed and after pressing button, "nothing to save" will be displayed. Button function save channel records and reset Master clock return to MAIN menu without saving © MOBATIME 31/36 BE-801259.03-HN 60&61master clock... -
Page 32: Technical Parameters
TECHNICAL PARAMETERS © MOBATIME 32/36 BE-801259.03-HN 60&61master clock... -
Page 33: Time Zone Table
Sun. Mar. (02:00) Sun. Nov. (02:00) La Paz Bogota, Lima, Quito New York, Eastern Time (US & Canada) Sun. Mar. (02:00) Sun. Nov. (02:00) Chicago, Central Time (US & Canada) Sun. Mar. (02:00) Sun. Nov. (02:00) © MOBATIME 33/36 BE-801259.03-HN 60&61master clock... - Page 34 Time change from Standard time (Winter time) to Summer time DST → Standard: Time change from Summer time to Standard time (Winter time) Example: last Sun. Mar. (02:00) Switch over on the penultimate Sunday in March at 02.00 hours local time. © MOBATIME 34/36 BE-801259.03-HN 60&61master clock...
-
Page 35: Warranty And Repairs
- unprofessional handling or interference - chemical effects - mechanical damage - the external impact (such as natural disasters, etc.) • Servicing during the warranty and post-warranty period is carried out by the manufacturer © MOBATIME 35/36 BE-801259.03-HN 60&61master clock... - Page 36 © MOBATIME 36/36 BE-801259.03-HN 60&61master clock...
