Multitek MultiLed M812-LD Series Operating Manual page 8

ACTION :
Press
COMMENTS :

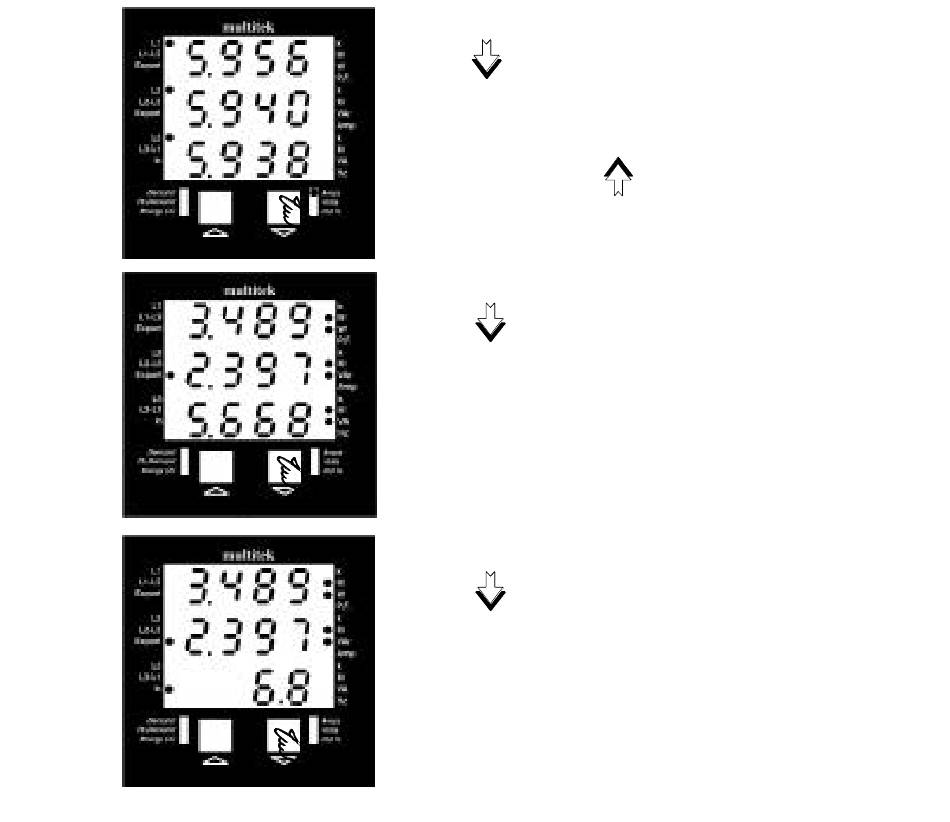

The third screen shows 3 phase current
L1, L2, L3. If the
the MultiLed goes back to the previous
screen.
ACTION :
Press
COMMENTS :
The fourth screen shows total Watt, VAr
and VA of the 3 phase system. Note for
Watt & VAr if either parameter is Export
the corresponding export annunciator
LED is illuminated.
ACTION :
Press
COMMENTS :
The fifth screen is an option and shows
the neutral current. The MultiLed
calculates and displays the current
flowing in the neutral lead.
7
button is pressed
