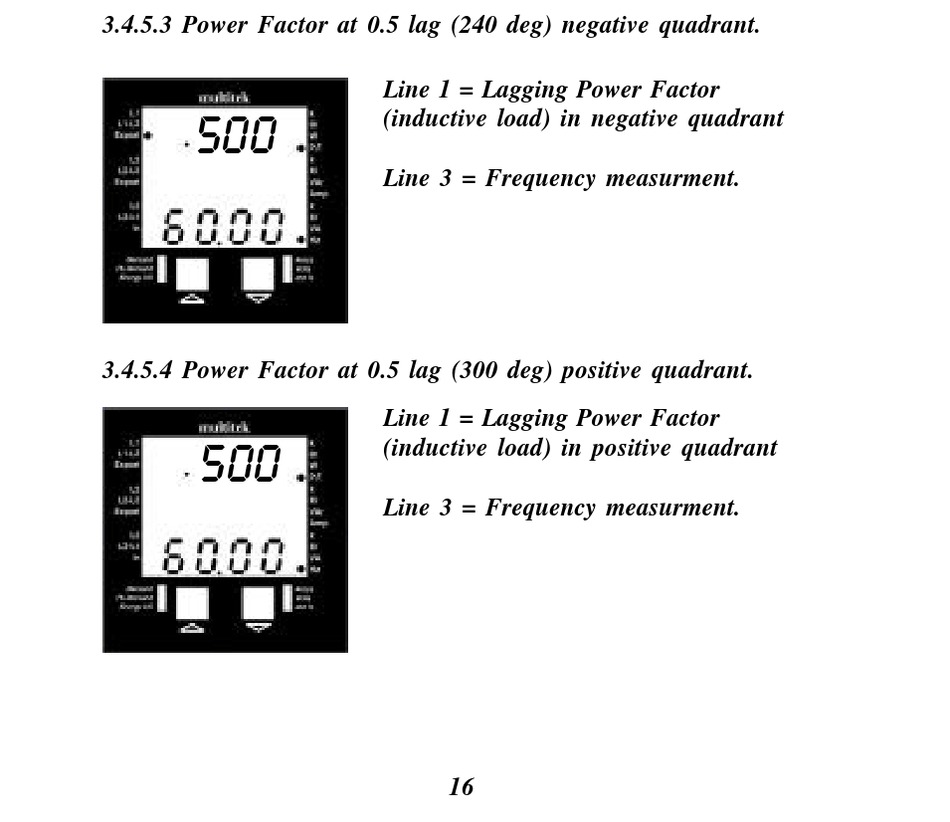

3.4.5.3 Power Factor at 0.5 lag (240 deg) negative quadrant.
500
3.4.5.4 Power Factor at 0.5 lag (300 deg) positive quadrant.
500
Line 1 = Lagging Power Factor
(inductive load) in negative quadrant
Line 3 = Frequency measurment.
Line 1 = Lagging Power Factor
(inductive load) in positive quadrant
Line 3 = Frequency measurment.
16
