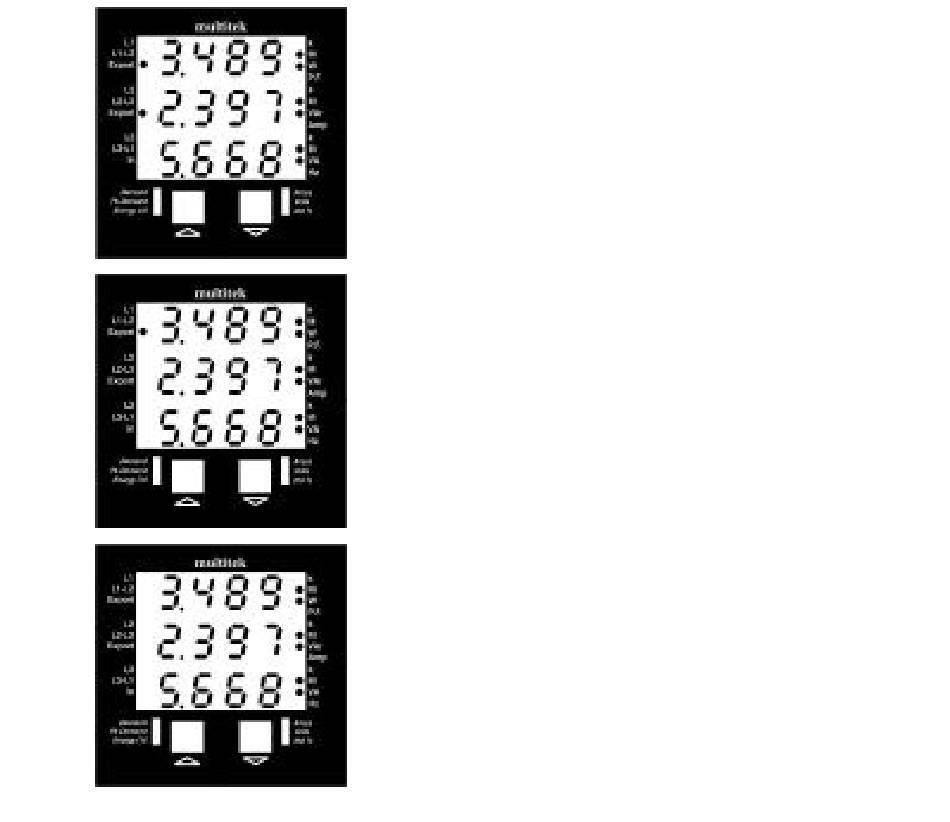

3.4.5.2 Power factor at 0.5 lead (120
deg) negative quadrant.
Line 1 = Exporting kW
Line 2 = Exporting kVAr
Line 3 = VA measurement
3.4.5.3 Power Factor at 0.5 lag (240 deg)
negative quadrant.
Line 1 = Exporting kW
Line 2 = Importing KVAr
Line 3 = VA measurement
3.4.5.4 Power Factor at 0.5 lag (300
deg) positive quadrant.
Line 1 = Importing kW
Line 2 = Importing KVAr
Line 3 = VA measurement
