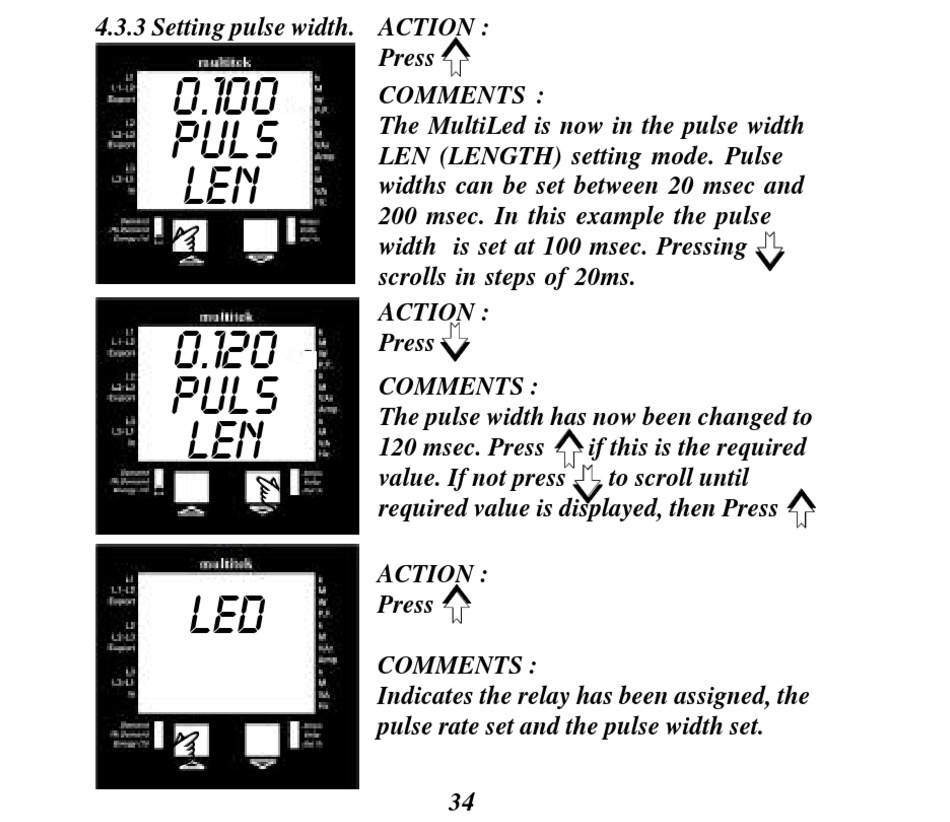

4.3.3 Setting pulse width. ACTION :
0.100
puls
len
RS485
0.120
puls
len
led
Press
COMMENTS :
The MultiLed is now in the pulse width
LEN (LENGTH) setting mode. Pulse
widths can be set between 20 msec and
200 msec. In this example the pulse
width is set at 100 msec. Pressing
scrolls in steps of 20ms.
ACTION :
Press
COMMENTS :
The pulse width has now been changed to
120 msec. Press
value. If not press
required value is displayed, then Press
ACTION :
Press
COMMENTS :
Indicates the relay has been assigned, the
pulse rate set and the pulse width set.
34
if this is the required
to scroll until
