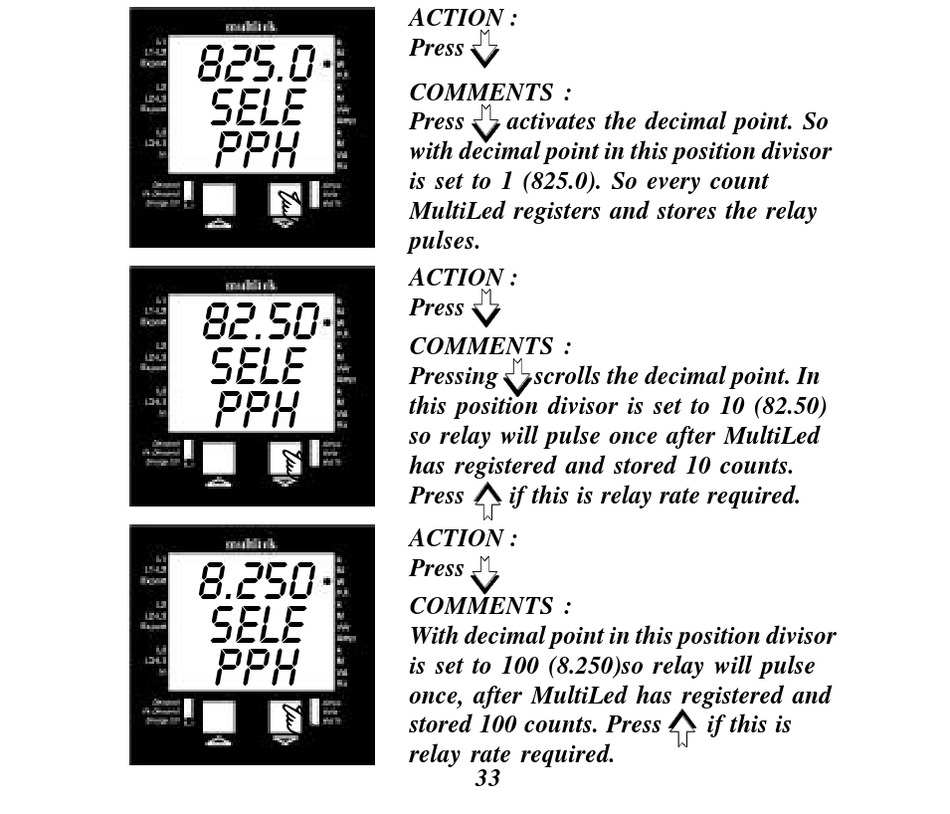

Multitek MultiLed M812-LD Series Operating Manual page 34

825.0
sele
pph
82.50
sele
pph
8.250
sele
pph
ACTION :
Press
COMMENTS :
Press activates the decimal point. So
with decimal point in this position divisor
is set to 1 (825.0). So every count
MultiLed registers and stores the relay
pulses.
ACTION :
Press
COMMENTS :
Pressing scrolls the decimal point. In
this position divisor is set to 10 (82.50)
so relay will pulse once after MultiLed
has registered and stored 10 counts.
Press if this is relay rate required.
ACTION :
Press
COMMENTS :
With decimal point in this position divisor
is set to 100 (8.250)so relay will pulse
once, after MultiLed has registered and
stored 100 counts. Press
relay rate required.
33
if this is
