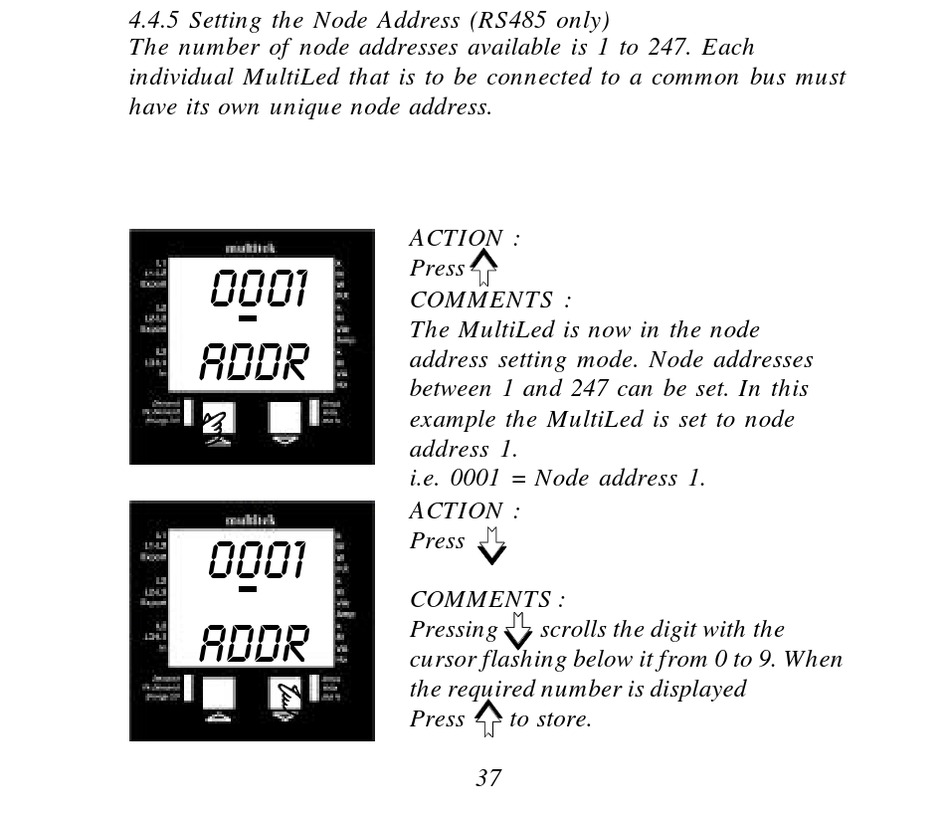

4.4.5 Setting the Node Address (RS485 only)
The number of node addresses available is 1 to 247. Each
individual MultiLed that is to be connected to a common bus must
have its own unique node address.
0001
addr
0001
addr
ACTION :
Press
COMMENTS :
The MultiLed is now in the node
address setting mode. Node addresses
between 1 and 247 can be set. In this
example the MultiLed is set to node
address 1.
i.e. 0001 = Node address 1.
ACTION :
Press
COMMENTS :
Pressing scrolls the digit with the
cursor flashing below it from 0 to 9. When
the required number is displayed
Press to store.
