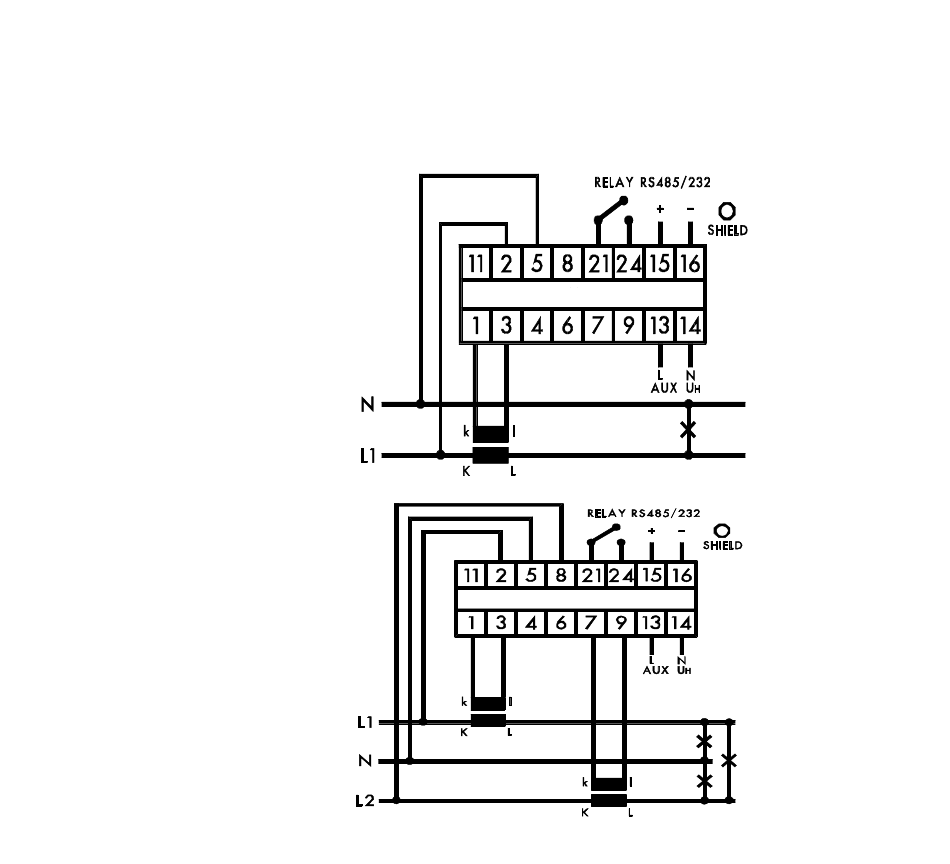

7. CONNECTION DIAGRAMS
7.1 All connections must be made as shown ensuring, all starts and
finishes of current and voltage transformers are connected as
shown.
Wiring Reference Note : k = x1 (white) l = x2 (black) K=H1, L=H2
SINGLE PHASE
SINGLE PHASE
3 WIRE
63
L
O
A
D
L
O
A
D
