3. DISPLAY SCREENS
3.1 . The sequence of the parameters displayed are dependant on
the model and the wiring system that MultiLed is programmed for.
3.1.1 The following screens appear on M812-LD9 3 phase 4 wire
unbalanced load :-
ACTION :
Switch on power
COMMENTS :

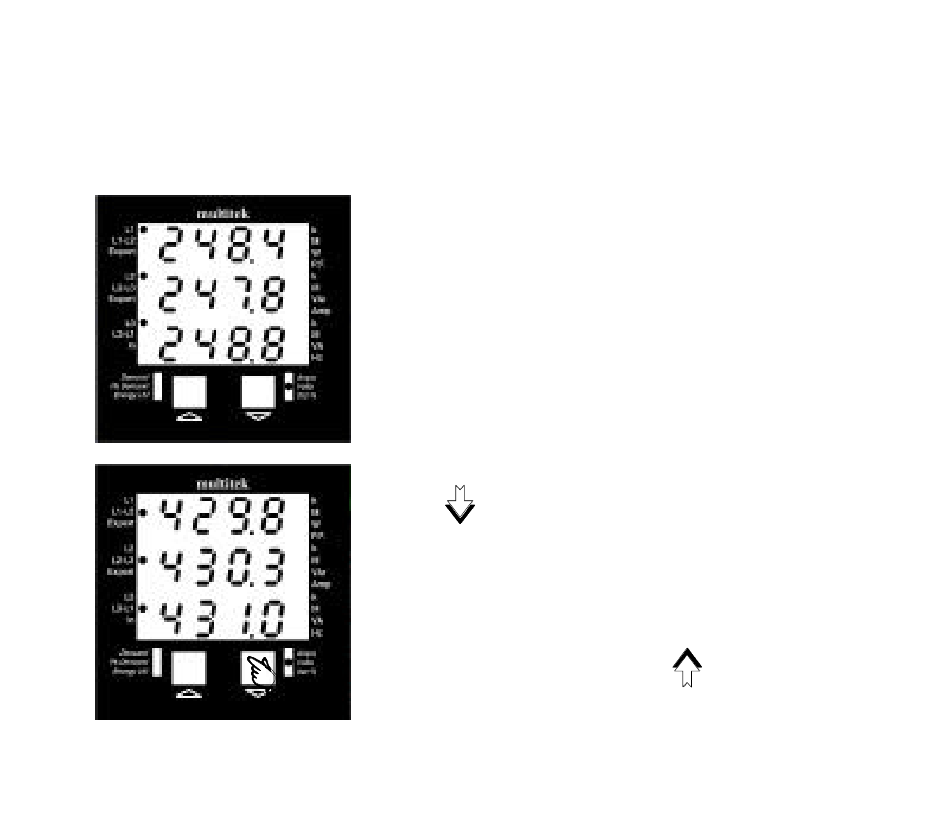

The MultiLed is programmed to 3 phase
4 wire unbalanced load. The first
screen shows 3 phase line to neutral
voltage.
ACTION :
Press
COMMENTS :
The second screen shows 3 phase line to
line voltage
L1/L2, L2/L3, L3/L1. If the
pressed the MultiLed goes back to the
previous screen.
6
button is
