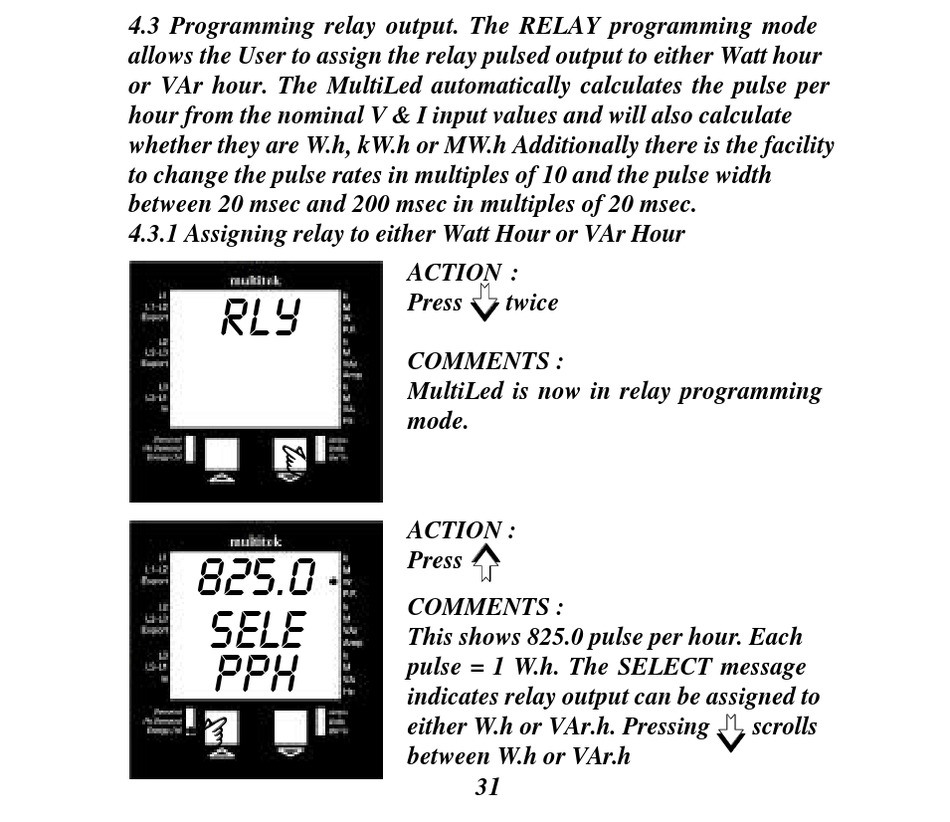

4.3 Programming relay output. The RELAY programming mode
allows the User to assign the relay pulsed output to either Watt hour
or VAr hour. The MultiLed automatically calculates the pulse per
hour from the nominal V & I input values and will also calculate
whether they are W.h, kW.h or MW.h Additionally there is the facility
to change the pulse rates in multiples of 10 and the pulse width
between 20 msec and 200 msec in multiples of 20 msec.
4.3.1 Assigning relay to either Watt Hour or VAr Hour
rly
825.0
sele
pph
ACTION :
Press twice
COMMENTS :
MultiLed is now in relay programming
mode.
ACTION :
Press
COMMENTS :
This shows 825.0 pulse per hour. Each
pulse = 1 W.h. The SELECT message
indicates relay output can be assigned to
either W.h or VAr.h. Pressing
between W.h or VAr.h
31
scrolls
