Multitek MultiLed M812-LD Series Operating Manual page 16

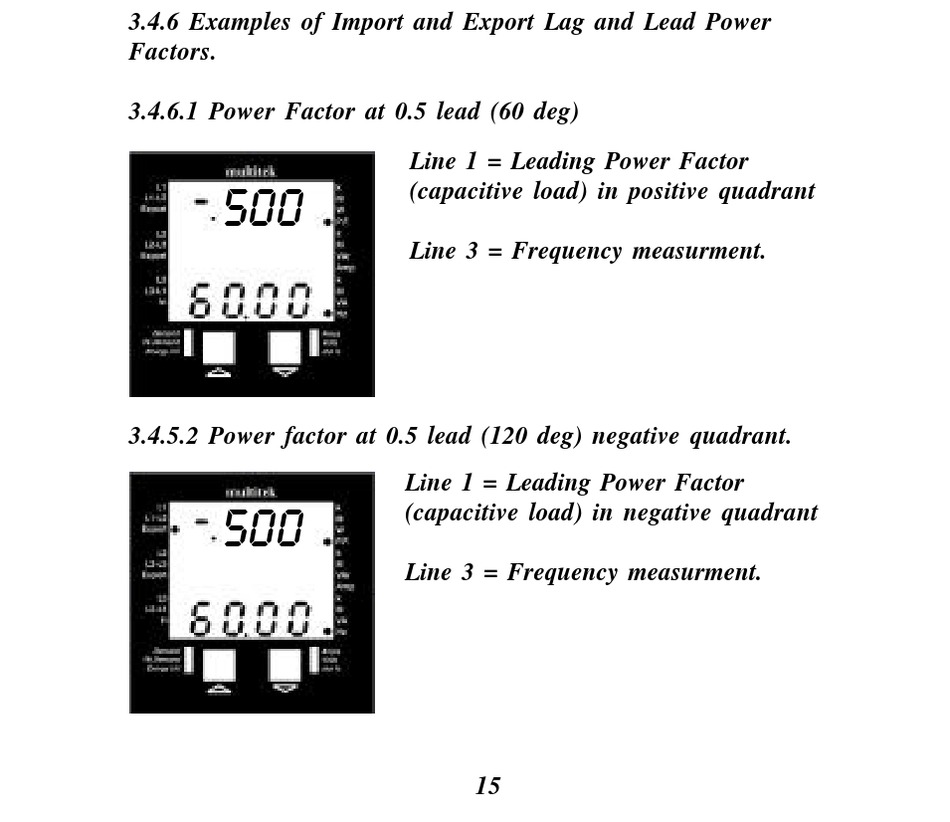

3.4.6 Examples of Import and Export Lag and Lead Power
Factors.
3.4.6.1 Power Factor at 0.5 lead (60 deg)
500
3.4.5.2 Power factor at 0.5 lead (120 deg) negative quadrant.
500
500
Line 1 = Leading Power Factor
(capacitive load) in positive quadrant
Line 3 = Frequency measurment.
Line 1 = Leading Power Factor
(capacitive load) in negative quadrant
Line 3 = Frequency measurment.
