LTECH LT-904
DMX 512 4CH Decoder
Part #: LT-904-DIP-EVO
CHANNELS
ABOUT US
2 kinds of DMX interfaces
Short circuit / Over current /
Overheat protection
www.ltech-led.com
LEARN MORE ABOUT US
888.887.2980
FOLLOW US ON SOCIAL
OFFERED & SUPPORTED BY
WWW.EVO-LITE.COM
WWW.EVO-LITE.COM
LT-904-DIP
Photoelectric
isolation
ARVADA, COLORADO
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ltech LT-904-DIP-EVO
Summary of Contents for Ltech LT-904-DIP-EVO
- Page 1 LT-904-DIP OFFERED & SUPPORTED BY LTECH LT-904 DMX 512 4CH Decoder 2 kinds of DMX interfaces Part #: LT-904-DIP-EVO WWW.EVO-LITE.COM Photoelectric Short circuit / Over current / isolation Overheat protection CHANNELS www.ltech-led.com LEARN MORE ABOUT US ABOUT US 888.887.2980 WWW.EVO-LITE.COM...
- Page 2 LT-904-DIP 2 kinds of DMX interfaces Photoelectric Short circuit / Over current / isolation Overheat protection CHANNELS www.ltech-led.com WWW.EVO-LITE.COM • INFO@EVO-LITE.COM • 1-888-887-2980 • ©2024 EVO-LITE, LLC • 6240 W 54TH AVE., ARVADA, CO 80002 • V1–0524...
-
Page 3: Product Introduction
Product introduction 1. Designed with 4 channels output, and Max. 6A current per channel, up to 576W output power. 2. 3-pin XLR, RJ45 DMX interface with photoelectric isolation, improve signal transmission efficiency and anti-interference ability. 3. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing &... -
Page 4: Technical Specs

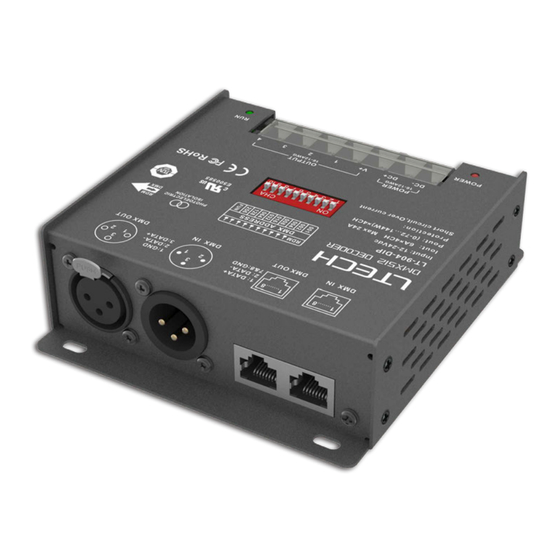

Technical specs Model LT-904-DIP DMX512/RDM Input signal 3-pin XLR, RJ45 DMX interfaces: Input voltage 12 24Vdc × 4CH Max. 24A Current load Output power: (0~72W...144W) × 4CH Max. 576W Photoelectric isolation: Yes Protection: Short circuit / Overheat / Over current protection, recover automatically. - Page 5 Main component description Dip switch Power Signal indicator indicator 12-24Vdc LED lamp input voltage connection 3-pin XLR RJ45 DMX/RDM DMX/RDM input & output input & output WWW.EVO-LITE.COM • INFO@EVO-LITE.COM • 1-888-887-2980 • ©2024 EVO-LITE, LLC • 6240 W 54TH AVE., ARVADA, CO 80002 • V1–0524...
-
Page 6: Dip Switch
DIP switch RDM mode: The DIP switch 1-10 are OFF. DMX mode: FUN=OFF (the 10th DIP switch = OFF) Setting DMX addresses with DIP switch 1-9 Self-testing mode: FUN=ON (the 10th DIP switch=ON) How to set DMX address via DIP switch:... - Page 7 Self-testing mode FUN=ON (the 10th dip switch=ON) Self-testing Mode 1-9=off 1=on 2=on 3=on 4=on 5=on 6=on 7=on 8=on 9=on Dip Switch Self-test Static Static Static Static Static Static Static Static 7 Color 7 Color Black Green Blue Yellow Purple...
-
Page 8: Wiring Diagram
Wiring diagram 1 Connecting LED lights: signal signal LT-904-DIP 12-24Vdc driver RGBW LED RGBW LED WWW.EVO-LITE.COM • INFO@EVO-LITE.COM • 1-888-887-2980 • ©2024 EVO-LITE, LLC • 6240 W 54TH AVE., ARVADA, CO 80002 • V1–0524... - Page 9 2. DMX console onnection LT-904-DIP is equipped with 2 kinds of DMX terminals for users’ selection. The following diagram takes 3-pin XLR as an example, same connecting method for RJ45. console Resistor terminal DMX signal DMX signal DATA+ DATA-...
- Page 10 3. The connection diagram of 2 kinds of DMX/RDM terminals: Resistor terminal LT-904-DIP LT-904-DIP LT-904-DIP 3-pin XLR connected in parallel Resistor terminal Vent LT-904-DIP LT-904-DIP LT-904-DIP Installation distance > 20mm Rj45 connected in parallel These 2 terminals can be connected in a mixed way.
-
Page 11: Warranty Agreement
1. Repair or replacement provided is the only remedy for customers. LTECH is not liable for any incidental or consequential damage unless it is within the law. 2. LTECH has the right to amend or adjust the terms of this warranty, and release in written form shall prevail.
