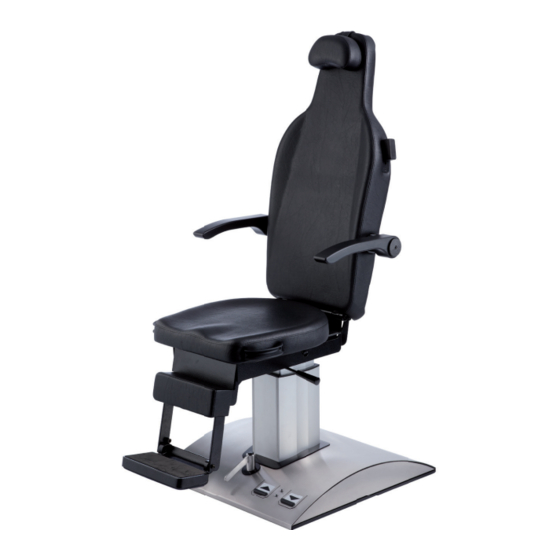

- Page 1 MedizinTechnik English ATMOS Patient Chair E 2 Patient Chair E 2 535.0000.B 535.0000.B with option: electrical backrest 2015-01 Index: 04...
-
Page 2: Table Of Contents
Disposal ..............18 Further information, accessories, consumables and 11.0 Notes on EMC ............19-21 spare parts are available from: General tems and conditions ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Straße 16 79853 Lenzkirch Deutschland / Germany Tel. +49 76 53 689-0... -
Page 3: Introduction
These operating instructions must always be kept available near the device. Care and safety inspections in conjunction with professional execution provide for operational safety and readiness for use of your ATMOS Patient chair E2 and are therefore a must besides regular cleaning. -
Page 4: Explanation Of Pictures And Symbols
Symbols within these operating instructions Warning, Important notes especial diligent notice! Symbols of the ATMOS patient chair E 2 Application part type B Order number The CE sign shows that this product meets the appropriate requirements of the EC guidelines. -
Page 5: Scope Of Supply
Scope of supply ● Prior to dispatch, the ATMOS patient chair E2 was subjected to an extensive functional test and has been carefully packed. Nevertheless, please compare the contents of the shipment on completeness immediately upon receipt (see delivery note). -
Page 6: For Your Safety
For your safety • The ATMOS patient chair E2 is not intended for operation in areas of medical rooms subject to danger of explosion. Areas subject to explosion hazards may be created by the use of infl ammable anaesthetics, skin cleansers and disin- fectants. -
Page 7: Setting Up And Starting Up
Setting up and starting up Setting up Make sure, product is set up on level, solid fl oor. Line power and fuses Line power : 230V / 50Hz (120V / 60Hz) Fuses: Thermal fuse: 3 A (230V) Thermal fuse: 6 A (120V) Starting up ●... -
Page 8: Power Connection
Installation and start-up Power connection Connect the ATMOS E 2 chair to line power using the included IEC power cord. Insert the power cord to the IEC socket at the back side of the chair base and the wall mounted power outlet. -
Page 9: Operating
= Left foot switch = up Right foot switch = down Furthermore, the ATMOS patient chair features an “Auto – Down (homing)” function, driving the seat down to its lowest level after a short tap on the foot switch. Pressing the right foot switch ... -
Page 10: Rotating The Upper Part Of The Chair
Operating Rotating the upper part of the chair The upper part of the chair with the patient can be completely rotated after having loosened the brake with the locking lever , Fig. 3). The upper part with the patient can then be rotated in the desired direction. -
Page 11: Adjusting The Backrest
The arm rests, foot rest and back rest are mechanically inter- locked and move synchronized. As an option, electric actuators are available to move the back rest of the ATMOS E 2 patient chair. The electric back rest movement is controlled by one foot switch ... -
Page 12: Adjusting The Head Rest
Operating Adjusting the head rest The headrest can be adjusted to a lower position by simply pulling out the retaining band; a higher position is reached by pushing the band in. For removing the headrest, pull the retaining band completely out of the backrest. Fig. -
Page 13: Cleaning
● The surfaces of the ATMOS Patient chair E 2 are resistant against all the recommended surface disinfectants stated in chapter 5.3 and 5.4. Nevertheless after any length of time discolourations could possibly develop. Polar solvents (e.g. acetone or chlorinated hydrocarbons (CCs)) may not be used for cleaning and disinfecting. -
Page 14: Recommended Surface Disinfectants
Cleaning 5.3 Recommended surface disinfectant ● The surfaces of the ATMOS patient chair E2 can be cleaned/wiped with disinfectants containing the following active ingredients: • QAV (quarternary ammonium compounds) 5.4 Recommended disinfectants for the upholstery Disinfectant Ingredients (in 100 g) Manufacturer ATMOS Green &... -
Page 15: Maintenance And Service
– Check connection at the socket – No mains voltage – Check house fuse – Check mains plug on perfect fi t at the device – Defective fuse – Exchange the fuse In the case of any malfunction, please immediately inform your authorised ATMOS service. -
Page 16: Accessories And Spare Parts
Accessories and Spare Parts 8.1 Accessories Child seat on request 8.2 Spare parts... -
Page 17: Technical Specifi Cations
Technical Data Voltage 230 V~ ± 10 %; 50 Hz Special voltage:120 V~ ± 10 %; 60 Hz Current input 2,5 A (ca. 3,1 A with the additional electrical back-rest adjustment) Power consumption 520 VA (ca. 700 VA with the additional electrical back-rest adjustment) Fuses 3,15 A T Operating time... -
Page 18: Disposal
10.0 Disposal ● The ATMOS patient chair E2 does not contain any hazardous materials. ● The housing is recyclable. ● Device and accessories must be decontaminated prior to disposal. ● Please take care on a careful separation of the different materials. -
Page 19: Notes On Emc
11.1 Guidelines and Manufacturer´s Declaration - Emissions The ATMOS Patient chair E2 is intended for use in the electromagnetic environment specifi ed below. The customer or user of the ATMOS Patient chair E2 should ensure that it is used in such an environment. - Page 20 11.3 Guidelines and Manufacturer´s Declaration - Immunity The ATMOS Patient chair E2 is intended for use in the electromagnetic environment specified below. The customer or user of the ATMOS Patient chair E2 should ensure that it is used in such an environment.
- Page 21 If the measured field strength at the location where the ATMOS Patient chair E1 is used exceeds the above compliance level, the ATMOS Patient chair E1 is to be observed to verify the intended use. If abnormal performance characteristics are noted, additional measures might be necessary, e. g. a changed arrangement or another location for the device.
- Page 22 For your notes...
- Page 23 For your notes...
- Page 24 ATMOS MedizinTechnik GmbH & Co. KG in accepting such goods or payment arrears. Acts of God or stoppages upon in writing by us.
