- Page 1 English ATMOS ® E 201 Thorax 312.1100.B 2015-05 Index: 32...
-
Page 2: Table Of Contents
Technical specifi cations secretion canister ....21 Operation ............... 11-17 Technical specifi cations hose system ......22 Adjust vacuum ...............11 Technical specifi cations ATMOS E 201 Thorax ..23 ® Suction procedure ............11 Hose rinsing ..............11 10.0 Checking / Reprocessing / Disposal ......24 Battery recharging ............11... -
Page 3: Introduction

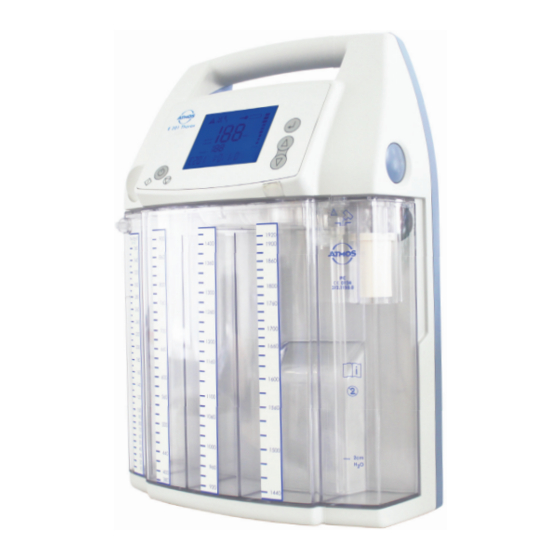

Specifi cation of the main function: The ATMOS E 201 Thorax drainage suction unit is a digital device for mobile thoracic drainage. The device is meant for the short- ® term (< 30 days) application on humans. It is portable, grid independent and has an electronic monitoring system with optical and visual status displays. -
Page 4: Warnings
The patient should be regularly monitored according to internal hospital guidelines. ● ATMOS E 201 Thorax is a medical device that requires special safety precautions and must be installed and placed in ope- ® ration in accordance with the attached EMC information. Portable and mobile RF communication devices (mobile telephones) can affect the drainage system. -
Page 5: Precautions
1.5 Function (see chapter 3.0 – Setting up and starting up; section 3.3 Functional test) The ATMOS E 201 Thorax is a particularly useful small suc- ® ● When a thoracic catheter is connected leaky connections tion unit. The device is operated by an electromotive, mainte- may result in an incorrect evaluation of air leaks from the nance-free piston pump. -
Page 6: Explanation Of Pictures And Symbols
Pictures contained in this manual Warning, Important information special diligent notice! Operating keys / symbols of the ATMOS E 201 Thorax ® Application part type CF, defi brillator-proof, ON = short keypress recovery time 10 sec... -
Page 7: Scope Of Supply
Scope of supply ● Prior to dispatch, this ATMOS device was subjected to an extensive functional test and has been carefully packed. Nevertheless, please compare the contents of the shipment on completeness immediately upon receipt (see delivery note). Hose set, sterile... -
Page 8: For Your Safety
Please only use ATMOS canisters with integrated bacteria For hygienic reasons we recommend to exchange the fi lter and ATMOS hoses with integrated bacteria fi lter in the hose always together with the canister. measuring channel. Uncoupling of the device may only be performed if the The canister may not be used without device. -
Page 9: Setting Up And Starting Up
Mains voltage and fuse: ● The device can only be operated with the special Mains voltage: 100-240 V; 50/60 Hz ATMOS canister, therefore please take care to have at Fuse: 1 x T 1A, L least one spare canister available. ●... -
Page 10: Functional Test
4.0 Operation Functional test Mounting of the ATMOS E 201 Thorax as described ® under Fig. 2. Before use the system must always be tested regarding impermeability. Slip on the test hose set to the device and connect the patient side of the hose to the sealing cap (blue plastic part) at the secretion canister. -
Page 11: Adjust Vacuum
Hose rinsing An automatic hose rinsing function will operate periodically. This rinsing function is designed to draw any secretion or ● Only use the original ATMOS fl uid build-up in the measurement hose into the suction single-use secretion canister! hose and subsequently the secretion canister. -
Page 12: Canister
Then move the canister towards the housing until it clicks into place (Fig 10). The ATMOS E 201 Thorax is again ready for use. ® Reopen the clamp at the suction hose. -
Page 13: Connect Hose Set
up to the required position (in 90° steps) until the pin engages automatically. Fix the adjusting lever . Please take care that the screw is screwed in prior to put the ATMOS E 201 Thorax onto the support! ® ... -
Page 14: Information On The Display
Actual flow Fig. 12 Display functions 4.9.1. Switch on Switch on the ATMOS E 201 Thorax with ® I/O key. The start screen is shown for 2 seconds. Visualized flow display.: Each additional bar represents an additional flow. From 1 to 3:... -
Page 15: Keylock
Then move the canister towards the housing until it clicks into place. The ATMOS E 201 Thorax is again ready for use. Start up the pump by pressing the I/O key. Reopen the clamp at ®... -
Page 16: Settings Menu
You may then switch to the next menu item with the ▲▼ keys. If all settings are made, exit the settings menu in depressing the menu item „exit“ and confirm with the enter key on the display. Your settings are also saved after switch off of the ATMOS E 201 Thorax. -
Page 17: Alarm
Simultaneously the acoustic alarm is activated. The LED is illuminated in orange or red. Before the device can be used, the correct function of the optical and acoustic display must be checked by the user. Perform the following steps: Attach a canister on the ATMOS E 201 Thorax. ®... -
Page 18: Cleaning
The unit itself can be wiped off with a moist (not wet) cloth. ● The surfaces of the ATMOS E 201 Thorax can be cleaned / disinfected with products of the following active ingredients: ® ● QAV (quartanary ammonium compounds) ... -
Page 19: Maintenance And Service
(Germany: safety check according to §6 Medical Device Operator Ordinance). ● Deep discharge may destroy the battery. Therefore, ● For repair, this device can be returned to ATMOS. please fully recharge the batteries of the ATMOS E 201 ® ● Before returning the device for repair, it must be tho- Thorax every 3 months, even if the device is not used. -
Page 20: Trouble Shooting
2) Device must be checked by the authorised service Service is required. Contact ATMOS Service hardware / software fault Service is required. If necessary Contact ATMOS Service. During a restart the restart without mains connection. error message appears every 30 seconds. -
Page 21: Accessories And Consumables
8.0 Accessories, consumables and spare part Accessories Universal bracket 312.1160.0 Bracket for fastening the ATMOS E 201 Thorax on the patient bed, standard rail, ® wheelchair, tripod, etc. Consumables 312.1031.0 OT set In the surgical kit included: Canister for ATMOS E 201 Thorax ®... -
Page 22: Technical Specifi Cations Hose System
9.2 Technical specifi cations hose system ATMOS E 201 Thorax ® Suction hose ATMOS disposable suction hose for thorax, double-lumen, with an integrated bacterial fi lter in the measuring channel, 180 cm long, material: medical grade PVC (ModenPlast RB4 NDG) Component parts a) Hose double-lumen b) Adapter hose –... -
Page 23: Technical Specifi Cations Atmos ® E 201 Thorax
9.0 Technical specifi cations 9.3 Technical specifi cations ATMOS E 201 Thorax ® Voltage 100 – 240 V~, 50/60 Hz Power consumption Max 0.7 A Power input Max. 70 VA Fuse 1 x T 1 A, Cut-off characteristic L Built-in rechargeable battery 21.6 V, 2250 mAh, lithium-ionic cells... -
Page 24: Checking / Reprocessing / Disposal
In order to guarantee a proper disposal of your old device, please either pass on your old device to your specialised dealer or send it directly to ATMOS MedizinTechnik GmbH & Co. KG for a professional disposal. -
Page 25: Notes On Emc
E 201 Thorax ® The ATMOS E 201 Thorax is intended for use in the electromagnetic environment specifi ed below. The customer or ® user of the ATMOS E 201 Thorax should ensure that it is used in such an environment. - Page 26 11.3 Guidelines and Manufacturer´s Declaration - Immunity The ATMOS E 201 Thorax is intended for use in the electromagnetic environment specified below. The customer or ® user of the ATMOS E 201 Thorax should ensure that it is used in such an environment.
- Page 27 ATMOS E 201 Thorax ® The ATMOS E 201 Thorax is intended for use in electromagnetic environment in which radiated disturbances are ® controlled. The customer or user of the ATMOS E 201 Thorax can help prevent electromagnetic interference by ®...
- Page 28 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Str. 16 79853 Lenzkirch / Germany Phone: +49 7653 689-0 atmos@atmosmed.de www.atmosmed.com...
