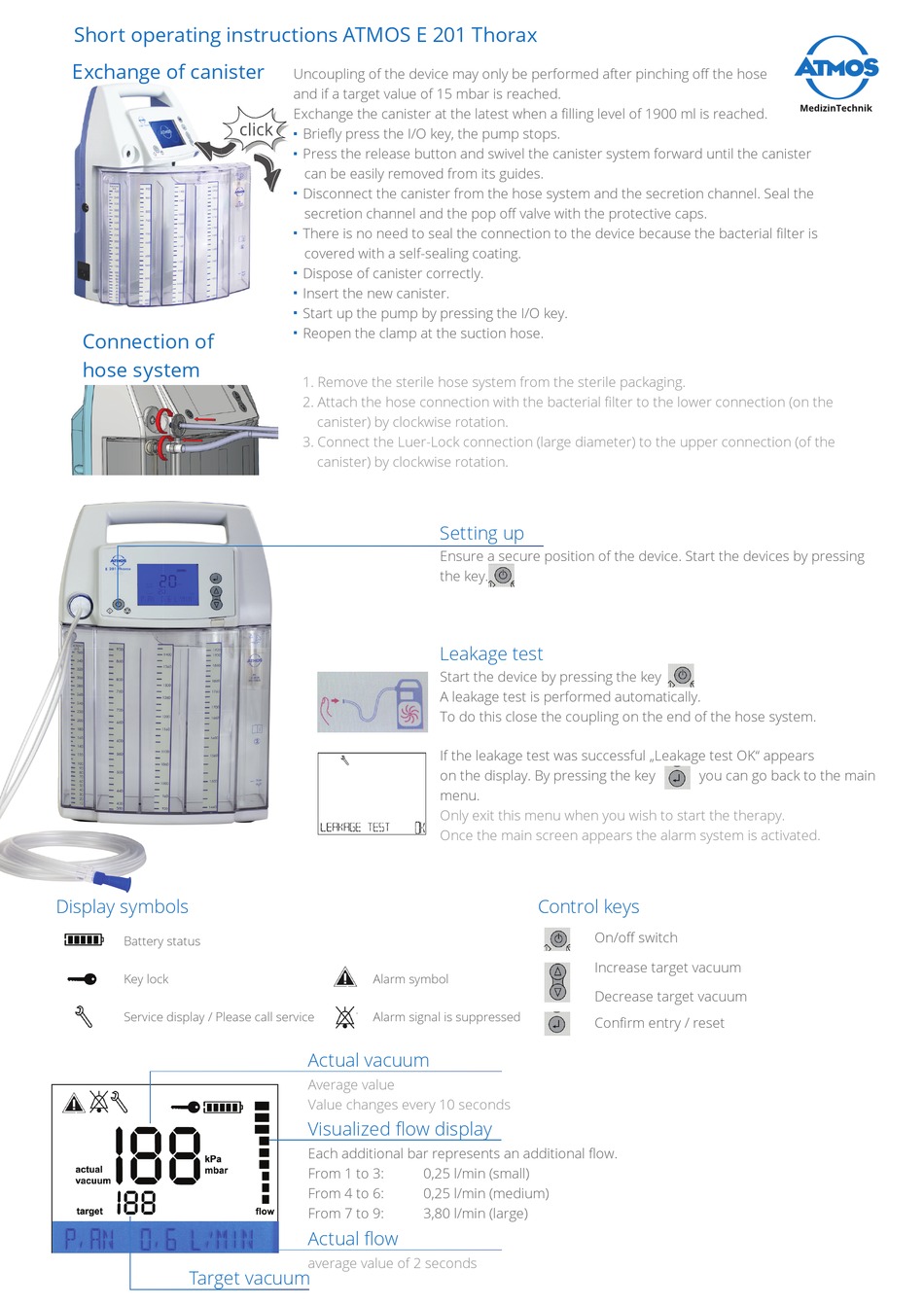

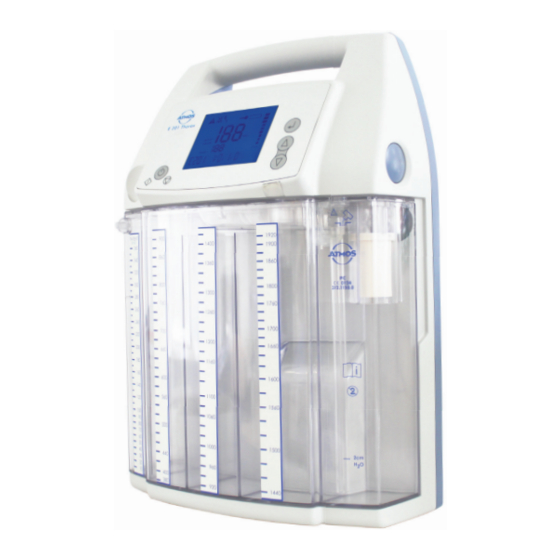

Atmos E 201 Thorax Short Operating Instructions

Short operating instructions ATMOS E 201 Thorax

Exchange of canister

Connection of
hose system

Display symbols

Battery status
Key lock
Service display / Please call service
Target vacuum
Uncoupling of the device may only be performed after pinching off the hose
and if a target value of 15 mbar is reached.
Exchange the canister at the latest when a fi lling level of 1900 ml is reached.
click click
Briefl y press the I/O key, the pump stops.

Press the release button and swivel the canister system forward until the canister

can be easily removed from its guides.
Disconnect the canister from the hose system and the secretion channel. Seal the

secretion channel and the pop off valve with the protective caps.
There is no need to seal the connection to the device because the bacterial fi lter is

covered with a self-sealing coating.
Dispose of canister correctly.

Insert the new canister.

Start up the pump by pressing the I/O key.

Reopen the clamp at the suction hose.

1. Remove the sterile hose system from the sterile packaging.
2. Attach the hose connection with the bacterial fi lter to the lower connection (on the
canister) by clockwise rotation.
3. Connect the Luer-Lock connection (large diameter) to the upper connection (of the
canister) by clockwise rotation.
Alarm symbol
Alarm signal is suppressed
Actual vacuum
Average value
Value changes every 10 seconds
Visualized fl ow display
Each additional bar represents an additional flow.
From 1 to 3:
From 4 to 6:
From 7 to 9:
Actual fl ow
average value of 2 seconds

Setting up

Ensure a secure position of the device. Start the devices by pressing Ensure a secure position of the device. Start the devices by pressing
the key.

Leakage test

Start the device by pressing the key
A leakage test is performed automatically.
To do this close the coupling on the end of the hose system.
If the leakage test was successful „Leakage test OK" appears
on the display. By pressing the key on the display. By pressing the key
menu.
Only exit this menu when you wish to start the therapy.
Once the main screen appears the alarm system is activated.

Control keys

On/off switch
Increase target vacuum
Decrease target vacuum
Confi rm entry / reset
0,25 l/min (small)
0,25 l/min (medium)
3,80 l/min (large)
you can go back to the main you can go back to the main
