Atmos C 451 Operating Instructions Manual

Hide thumbs Also See for C 451:
Table of Contents

Advertisement

Quick Links

Download this manual

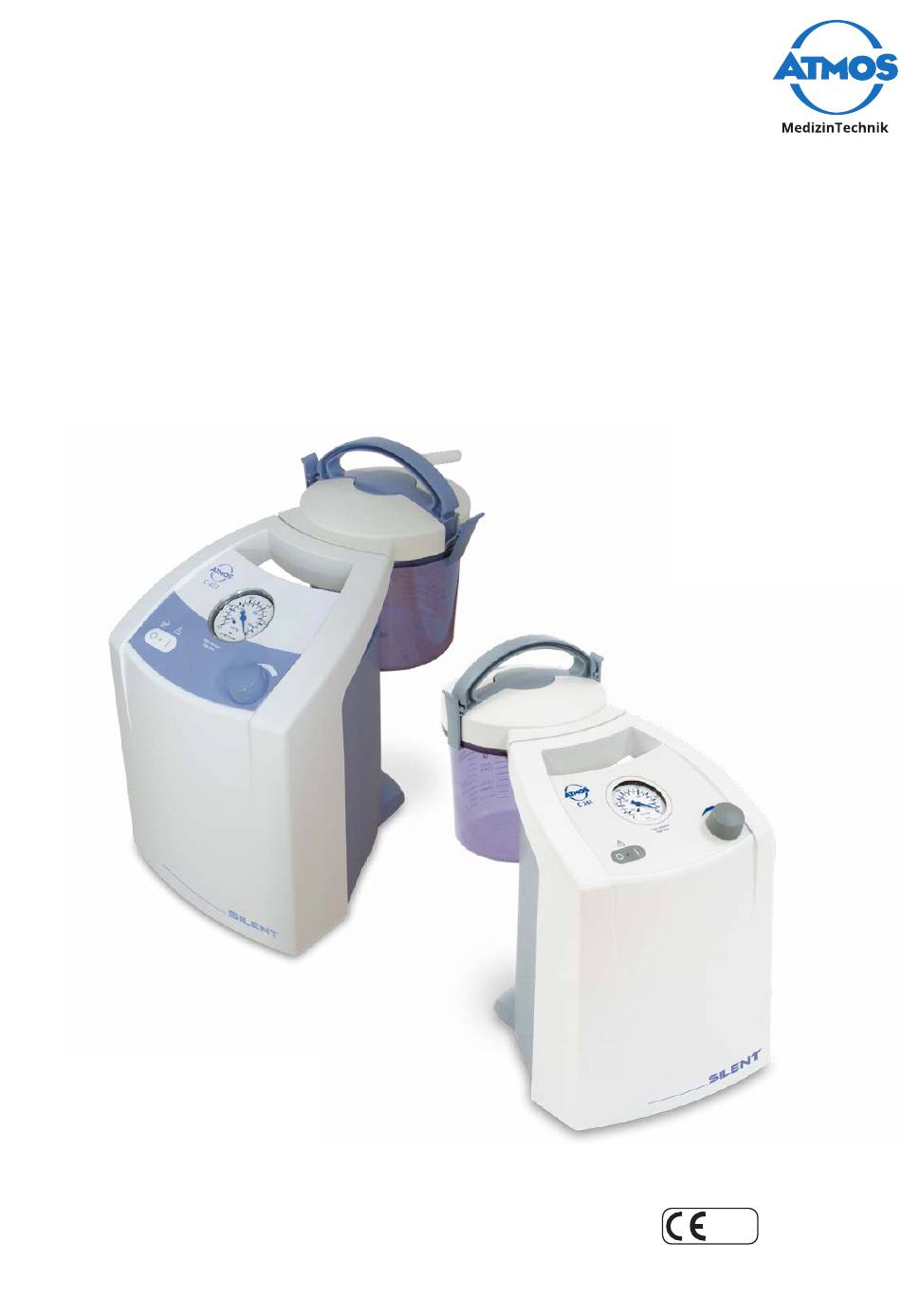

Operating Instructions
ATMOS C 451 / C 361
English
GA1GB.210100.0
2025-04 Index 01
0124

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C 451 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atmos C 451

Summary of Contents for Atmos C 451

  • Page 1 Operating Instructions ATMOS C 451 / C 361 English GA1GB.210100.0 2025-04 Index 01 0124...

  • Page 2: Table Of Contents

    Options ........................23 Securing the device ..................... 24 Walking with the system trolley ................ 24 DDS switchover station ..................24 5.3.1 ATMOS C 451 ....................25 5.3.2 ATMOS C 361 ....................25 Tray for the system trolley base ................ 25 Potential equalisation ..................26 Use of disposable suction systems (ATMOS, Serres®, Medi-Vac®, Receptal®) ............
  • Page 3 Reprocessing by the manufacturer ..............32 Changing the fuse ....................33 Troubleshooting ....................34 Accessories ......................35 10 Consumables ......................37 11 Disposal ........................38 11.1 Expected service life ................... 38 12 Technical data .......................39 12.1 ATMOS C 451 ....................... 39 12.2 ATMOS C 361 ....................... 40 13 Notes on EMC ......................43...

  • Page 4: Introduction

    Read chapter ‘Notes for your safety’ on page 15 before using the product for the first time. This will help you to avoid potentially dangerous situations. The products ATMOS C 451 and ATMOS C 361 bear CE marking CE 0124 according to the EU Council Directive 93/42/EEC concerning medical devices and meet the basic requirements of Annex I to this directive.

  • Page 5: Explanation Of Pictures And Symbols

    • ATMOS C 451 portable with standard rail 340.0357.0 • ATMOS C 451 mobile with standard rail – for self-assembly 340.0358.0 • ATMOS C 451 mobile with standard rail – fully assembled 340.0375.0 • ATMOS C 451 VE 340.0355.0 • ATMOS C 361 340.0001.0 • ATMOS C 361 portable with 1 x 1.5 l canister 340.0351.0 • ATMOS C 361 portable with 1 x 3 l canister 340.0350.0 • ATMOS C 361 portable with standard rail 340.0363.0 • ATMOS C 361 mobile with 1 x 1.5 l canister 340.0360.0 • ATMOS C 361 mobile with 1 x 3 l canister 340.0361.0 • ATMOS C 361 mobile with standard rail 340.0362.0 1.2 Explanation of pictures and symbols In the operating instructions DANGER Warning of a danger that will result in immediate fatal or serious injury.
  • Page 6 This device complies with the relevant requirements of EU directives. 0124 This device complies with the relevant requirements of EU directives. Eurasian conformity Foot switch Manufacturer Date of manufacture Country of manufacture Reference number Unique Device Identifier of a medical device Medical device Serial number IPX1 Protection against the ingress of harmful moisture (dripping water) Type BF applied part Professional disposal...

  • Page 7: Intended Purpose

    (13) Packing date (17) Expiry date (21) Serial number (30) Quantity in pieces 1.3 Intended purpose 1.3.1 ATMOS C 451 Product name: ATMOS C 451 Main functions: Suction of secretions, blood, serous fluids, rinsing fluids, and for the temporary collection of these fluids. Medical indications / For all applications where suction is needed, such as application: in general surgical procedures (e.g., suction of wound...

  • Page 8: Atmos C 361

    Sterility: Non-sterile product Disposable product / The device and part of the accessories are reusable. For Reprocessing: information on reprocessing, cleaning, and disinfection, please see the operating instructions. 1.3.2 ATMOS C 361 Product name: ATMOS C 361 Main functions: Suction of secretions, blood, serous fluids, rinsing fluids, and for the temporary collection of these fluids. Medical indications / For all applications where suction is needed, such as application: in general surgical procedures (e.g., suction of wound...

  • Page 9: Function

    1.4 Function • The ATMOS C 451 / C 361 is a mains-operated surgical suction device, the core of which is a high-performance, maintenance-free diaphragm pump. It generates vacuum in the suction hose and secretion canister system, which assists in suctioning and collecting secretions. Via a vacuum regulator with vacuum gauge, the final vacuum and thus the desired suction capacity can be precisely adjusted.

  • Page 10: Scope Of Delivery

    ATMOS C 451 Basic device Power supply cable 5 m 008.0818.0 Operating Instructions Name REF 340.0376.0/REF 340.0335.0 ATMOS C 451 mobile with 2 x 1.5 l canisters 1x ATMOS C 451 340.0300.0 2x DDS secretion canister, plastic, 1.5 l, autoclavable 340.0050.0 2x DDS-canister lid with gaskets, autoclavable 340.0053.0 2x DDS-canister handle, blue, autoclavable 340.0326.0...
  • Page 11 Name REF 340.0378.0/REF 340.0333.0 ATMOS C 451 mobile with 2 x 5 l canisters 1x ATMOS C 451 340.0300.0 2x DDS-secretion canister, plastic, 5 l, autoclavable 340.0052.0 2x DDS-canister lid with gaskets, autoclavable 340.0053.0 2x DDS-canister handle, blue, autoclavable 340.0326.0 2x DDS-splash protection, silicone, autoclavable 340.0056.0 1x DDS-hose adapter set (Ø 6 mm + Ø 10 mm), autoclavable 340.0057.0 1x hose bracket, stainless steel 320.0611.0...
  • Page 12 000.0361.0 Name REF 340.0001.0 ATMOS C 361 1x basic device 1x power supply cable 5 m 008.0818.0 1x operating instructions Name REF 340.0351.0 ATMOS C 361 portable (1 x 1.5 l canister) 1x ATMOS C 361 340.0001.0 1x DDS-secretion canister, plastic, 1.5 l 340.0050.0 1x DDS-canister lid with gaskets 340.0053.0 1x DDS-canister handle, grey 340.0055.0 1x DDS-splash protection, silicone 340.0056.0...
  • Page 13 1x DDS-splash protection, silicone 340.0056.0 1x DDS-hose adapter set (Ø 6 mm + Ø 10 mm) 340.0057.0 1x suction hose, silicone, Ø 6 mm, L = 2 m, 1 pc. 000.0361.0 1x hydrophobic DDS bacterial and viral filter, 10 pcs. 340.0054.0 1x DDS-hose holder 340.0066.0 Name REF 340.0363.0 ATMOS C 361 portable with standard rail 1x ATMOS C 361 340.0001.0 1x DDS-standard rail adapter with vacuum connection 340.0059.0 1x suction hose, silicone, Ø 6 mm, L = 2 m, 1 pc. 000.0361.0 1x hydrophobic bacterial and viral filter, Ø 8 mm 444.0628.0 Name REF 340.0360.0 ATMOS C 361 mobile (1 x 1.5 l canister)

  • Page 14: Transport And Storage

    If you notice transport damage: 1. Document and report the transport damage. 2. Send the device to ATMOS; see chapter ‘7.3 Sending in the device’ on page 32. Environmental conditions for transport and storage: see chapter ‘12 Technical data’ on page 39 Storage: ...

  • Page 15: Notes For Your Safety

    • Never operate the product in potentially explosive areas or areas that are oxygenated. • Use only original accessories and original spare parts from ATMOS. This applies to the power supply cable in particular. WARNING Avoid misuse. Your patient can be severely injured.
  • Page 16 • Always carry out a function check each time before using the device. • ATMOS recommends always having another suction device ready at hand. That way you can also perform suctioning if a device should fail. WARNING Risk of infection due to pathogens on the product! Deadly diseases can be transmitted.

  • Page 17: Avoiding Damage To The Device

    Use only proper mains connections and extension cords. • Never touch the device’s interfaces and the patient at the same time! • Use only original accessories and original spare parts from ATMOS. This applies to the power supply cable in particular. • Observe the specifications regarding periodic tests in chapter ‘7.1 Periodic tests’ on page 32.

  • Page 18: Setting Up And Starting Up

    • Insert the hose of the foot switch onto the connecting nipple. • Tighten the knurled nut Vacuum connection on bottom for system trolley / foot controller (only ATMOS C 451) • To connect, press the coupler firmly into the jack until it locks into place (serves to establish a vacuum connection for the foot controller or the secretion canisters attached to the system trolley).

  • Page 19: Operation

    4 Operation 4.1 Initial start-up  Observe the safety instructions prior to initial start-up!  After transporting the device at low temperatures, it should be kept at room temperature for at least six hours before initial start-up; otherwise, the device must not be operated.

  • Page 20: Inserting And Removing The Dds Bacterial And Viral Filter / Oversuction Stop

    4.6 Inserting and removing the DDS bacterial and viral filter / oversuction stop The DDS bacterial and viral filter / oversuction stop is intended for single use only.  Before each use, check that the DDS bacterial and viral filter / oversuction stop is dry and clean. Replace the DDS bacterial and viral filter with a new DDS bacterial and viral filter if it is discoloured or contaminated or if oversuction has occurred. • Push the DDS bacterial and viral filter onto the DDS secretion canister handle.

  • Page 21: Inserting The Dds Hose Adapter

    4.10 Inserting the DDS hose adapter 1. Insert the DDS hose adapter (Ø 6 or 10 mm) into the ‘Patient’ opening on the DDS canister lid. 2. Turn it slightly and press it down.  The adapter can be removed again by turning it slightly.

  • Page 22: Checking The Dds Bacterial And Viral Filter / Oversuction Stop

    3. Replace the DDS bacterial and viral filter with a new DDS bacterial and viral filter if it is discoloured or contaminated or if oversuction has occurred. 4. Switch on the device. 5. Close the suction hose and set the desired vacuum. 6. Connect the suction catheter, suction attachment, or suction instrument.  Observe the liquid level in the secretion canister while suctioning. The DDS bacterial and viral filter prevents liquid from being sucked into the pump. Nevertheless, the canister should be emptied or replaced when it is 2/3 full (including foam crown).

  • Page 23: Options

    2. To increase the vacuum, press the pedal down. • When you lift off your foot, the controller locks in that position. System trolley • For mobile use, a system trolley is available that can be used with two ATMOS secretion canister systems on the DDS switchover station or with disposable systems. • Always position the system trolley on a flat, stable surface during operation.

  • Page 24: Securing The Device

    5.1 Securing the device  Safe operation of the mobile suction device is ensured only when used with the corresponding special system trolley or trolley with standard rail. • The suction device is placed on the system trolley in such a way that its feet engage in the holes of the trolley.

  • Page 25: Atmos C 451

    5.3.1 ATMOS C 451 • The adapter with standard rail (REF 340.0331.0 / 340.0058.0) is required to use the bottom vacuum connection. This adapter seals the upper vacuum connection and allows you to hang accessories on the standard rail section now available. • Mount the adapter with standard rail to the mounting fixture of the suction device as described in the enclosed assembly instructions.

  • Page 26: Potential Equalisation

    (in the mounting groove). Assembly is carried out according to the enclosed assembly instructions. 5.6 Use of disposable suction systems (ATMOS, Serres®, Medi-Vac®, Receptal®)  Observe the operating instructions by the manufacturer of the corresponding canister system.

  • Page 27: Reprocessing

    6 Reprocessing 6.1 Safety instructions for reprocessing 6.1.1 General safety instructions We recommend that you always document all maintenance work and part replacements in writing. It is the responsibility of the user to ensure that the required results of cleaning and disinfection are achieved.

  • Page 28: Preparing Surfaces

    Unsuitable cleaning agents and disinfectants. The product can become damaged. • Do not use any process chemicals containing the following ingredients on plastic parts: • Chloramides or phenol derivatives • Do not use any process chemicals containing the following ingredients on stainless steel: •...

  • Page 29: Pre-Cleaning

    Agent (manufacturer) Active ingredients in 100 g Type Bacillol® 30 Foam 14 g ethanol, 10 g propan-2-ol, 6 g propan-1-ol, Foam (Bode Chemie) 0.5 g N-alkyl-aminopropylglycine Ready-to-use Incidin® Active peracetic acid Powder (Ecolab) mikrozid® sensitive 0.26 g alkyl(C12-16)dimethylbenzylammonium chloride, Wipes wipes 0.26 g didecyldimethylammonium chloride, (Schülke & Mayr) 0.26 g alkyl(C12-14)ethylbenzylammonium chloride 6.2.3 Pre-cleaning 1.

  • Page 30: Selecting Process Chemicals

    6.3.2 Selecting process chemicals Always observe the manufacturer’s specifications for the process chemicals. Agent (manufacturer) Active ingredients in 100 g Type Cleaning agents – Mechanical reprocessing neodisher® < 5 % nonionic and anionic surfactants, Liquid MediClean forte enzymes concentrate (Dr. Weigert) neodisher® AN < 5 % nonionic surfactants, Powder (Dr. Weigert) > 30 % phosphates, enzymes Neutraliser neodisher®...
  • Page 31 Mechanical cleaning and Secure the accessories on a suitable load carrier. disinfection • Clean and disinfect using a suitable programme: Pre-wash: 1 min – Pre-rinse with cold water Clean: 5 min, 50 °C / 122 °F – Cleaning with a cleaning agent Neutralise: 2 min –...

  • Page 32: Maintenance And Service

    7.1 Periodic tests • Perform a repeat test of the electrical safety according to IEC 62353 at least every 24 months. • In this context, ATMOS recommends arranging for an inspection in accordance with the manufacturer‘s specifications. 7.2 Function check • Prior to every use, perform a visual inspection of the device, hoses, secretion canisters, and connection cables.

  • Page 33: Changing The Fuse

    7.5 Changing the fuse 1. Remove the power supply cable. 2. Press the spring clips on both sides of the fuse holder with a screwdriver and pull out the fuse holder. 3. Replace the fuse and reinsert the holder until both spring clips engage again.

  • Page 34: Troubleshooting

    8 Troubleshooting The product has been subjected to a thorough quality control in the factory. If a fault should occur despite this care, you may be able to resolve it yourself. Error symptom Possible cause Remedy Device does not • Power plug fits poorly •...

  • Page 35: Accessories

    008.0596.0 System trolley ATMOS C 451 – for self-assembly 340.0070.0 System trolley ATMOS C 451, installed 340.0170.0 System trolley ATMOS C 451, DDS-switchover station – fully assembled 340.0171.0 System trolley ATMOS C 451, standard rail – fully assembled 340.0172.0 Trolley with standard rail ATMOS C 451 / C 361 320.0070.1 Standard rail set for system trolley 340.0081.0 Tray for system trolley 340.0084.0 Support for standard rail ATMOS C 451/ ATMOS C 361 340.0210.0 DDS-standard rail adapter with vacuum connection 340.0059.0...
  • Page 36 Accessories Serres®-external canister 1 l 312.0465.0 Serres®-external canister 2 l 310.0402.0 Serres®-external canister 3 l 310.0403.0 Standard rail clamp Serres® complete 444.0484.0 Receptal®-external canister 1.5 l 310.0221.0 Receptal®-external canister 2 l 443.0256.0 Receptal®-external canister 3 l 444.0157.0 Receptal®-holder for standard rail, 1 x 2 l 444.0160.0 Receptal®-holder for standard rail, 1 x 3 l 444.0170.0 Receptal®-holder for standard rail, single 444.0150.0 Receptal®-holder for standard rail, double 444.0156.0 Standard rail support Receptal®...

  • Page 37: Consumables

    10 Consumables Consumables Hydrophobic DDS bacterial and viral filter for ATMOS DDS secretion 340.0054.0 canister, pack of 10 pcs. Hydrophobic bacterial and viral filter, Ø 11 mm 443.0738.0 Hydrophobic bacterial and viral filter, Ø 8 mm 444.0628.0 Smoke evacuation filter HM57524928 Suction hose, PVC, disposable product, Ø 6 mm, L = 1.30 m, 10 pcs. 006.0057.0 Suction hose, PVC, disposable product, Ø 8 mm, L = 2.10 m, 50 pcs. 006.0059.0 Suction hose, silicone, Ø 6 mm, L = 1.30 m, 1 pc.

  • Page 38: Disposal

    The product does not contain any hazardous materials. 1. Clean and disinfect the product. 2. In Germany: Send the product back to ATMOS or your specialist dealer. They will dispose of the product properly. 3. In other countries: Dispose of the product properly and in accordance with country- specific laws and regulations.

  • Page 39: Technical Data

    12 Technical data 12.1 ATMOS C 451 Input voltage 230 V~ ± 10 %, 50/60 Hz Current consumption 0.6 / 0.75 A (230 V~) Power consumption 138 / 173 VA Fuses T 800 mA/H (for 230 V~, 50/60 Hz) Aggregate suction capacity 45 l/min +3/−5 l/min Max. vacuum at sea level −91 kPa (−910 mbar or 682.5 mmHg)*@ sea level Vacuum display −1…0 bar ± 16 mbar (class 1.6) Ø 63 mm Secondary air regulation Mechanical control valve Secretion canister Table-top device: •...
  • Page 40 Recommended: Inspection according to the manufacturer’s specifications. Protection class against electric shock (acc. to EN 60601-1) Classification of applied parts Type BF applied parts Degree of protection IPX1 CE marking Reference number (REF) 340.0300.0 ATMOS C 451 340.0333.0 ATMOS C 451 mobile (2 x 5 l canister) 340.0334.0 ATMOS C 451 mobile (2 x 3 l canister) 340.0335.0 ATMOS C 451 mobile (2 x 1.5 l canister) 340.0338.0 ATMOS C 451 portable (1 x 3 l canister) 340.0339.0 ATMOS C 451 portable (1 x 1.5 l canister) 340.0355.0...
  • Page 41 Secondary air regulation Mechanical control valve Secretion canister Table-top device: • reusable 1.5 l / 3 l • disposable 1 l / 2 l Device on trolley with standard rail: • reusable 1.5 l / 3 l / 4 l • disposable 1 l / 2 l / 3 l Device on system trolley: • reusable 1.5 l / 3 l / 4 l / 5 l • disposable 1 l / 2 l / 3 l Hose connections Ø 6 mm or Ø 10 mm Mode of operation Continuous operation Operating time > 8 h continuous operation without interruption, within 24 h...

  • Page 42: Atmos C 361

    Reference number (REF) 340.0001.0 ATMOS C 361 340.0350.0 ATMOS C 361 portable (1 x 3 l canister) 340.0351.0 ATMOS C 361 portable (1 x 1.5 l canister) 340.0360.0 ATMOS C 361 mobile (1 x 1.5 l canister) 340.0361.0 ATMOS C 361 mobile (1 x 3 l canister) 340.0362.0 ATMOS C 361 mobile with standard rail 340.0363.0 ATMOS C 361 portable with standard rail *Important: Note on MPBetreibV only for devices that are listed there accordingly! Hydrophobic DDS bacterial and viral filter Protection against bacteria (BFE) Filtration efficiency: 99.89667 %* Protection against viruses (VFE) Filtration efficiency: 99.0 %* Filter class H13 (High-Efficiency Particulate Air/Arrestance)* *External test report (test laboratory) 42 Technical data...

  • Page 43: Notes On Emc

    HF-shielded room of a magnetic resonance imaging system. The customer or user of the ATMOS C 451 / C 361 must ensure that the device is used in a prescribed environment. Guidance and manufacturer’s declaration – key features ...
  • Page 44 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Str. 16 79853 Lenzkirch / Germany Phone: +49 7653 689-0 info@atmosmed.com www.atmosmed.com...
