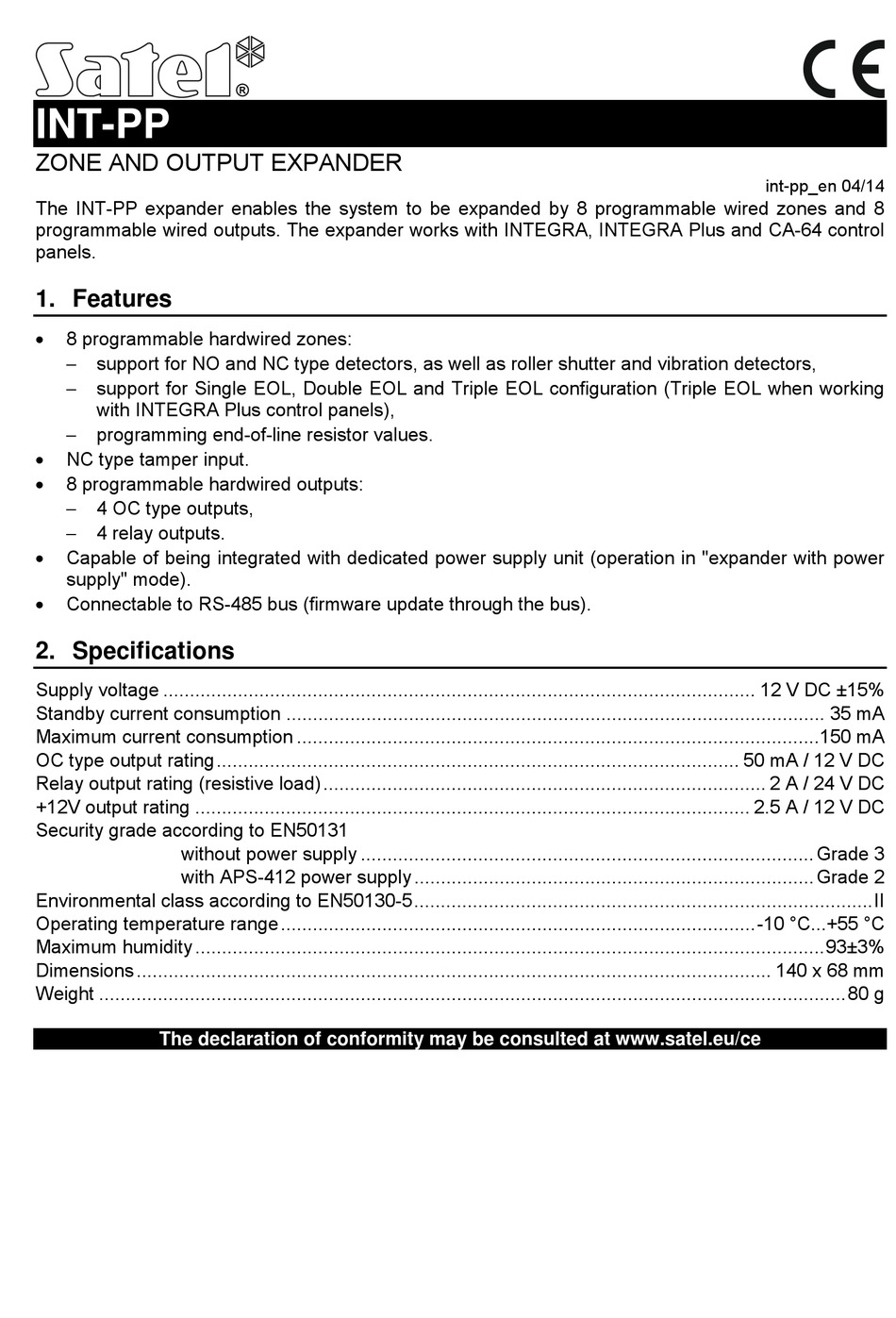

INT-PP
ZONE AND OUTPUT EXPANDER

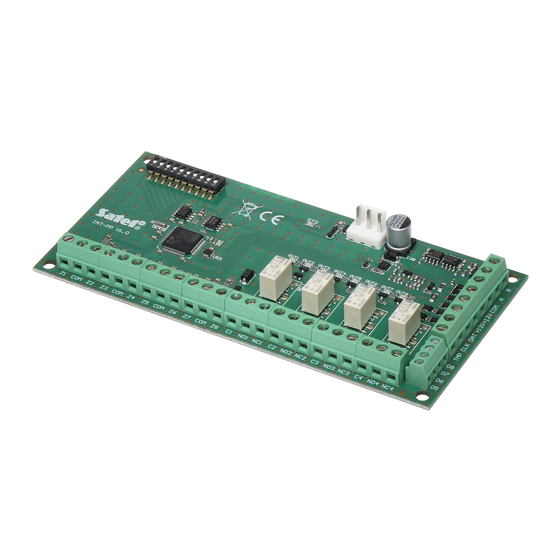

The INT-PP expander enables the system to be expanded by 8 programmable wired zones and 8
programmable wired outputs. The expander works with INTEGRA, INTEGRA Plus and CA-64 control
panels.

1. Features


8 programmable hardwired zones:

support for NO and NC type detectors, as well as roller shutter and vibration detectors,

support for Single EOL, Double EOL and Triple EOL configuration (Triple EOL when working
with INTEGRA Plus control panels),

programming end-of-line resistor values.

NC type tamper input.

8 programmable hardwired outputs:

4 OC type outputs,

4 relay outputs.

Capable of being integrated with dedicated power supply unit (operation in "expander with power
supply" mode).

Connectable to RS-485 bus (firmware update through the bus).

2. Specifications

Supply voltage ............................................................................................................... 12 V DC ±15%
Standby current consumption ..................................................................................................... 35 mA
Maximum current consumption ..................................................................................................150 mA
OC type output rating.................................................................................................. 50 mA / 12 V DC
Relay output rating (resistive load) ................................................................................... 2 A / 24 V DC
+12V output rating ........................................................................................................ 2.5 A / 12 V DC
Security grade according to EN50131
without power supply ..................................................................................... Grade 3
with APS-412 power supply ........................................................................... Grade 2
Environmental class according to EN50130-5......................................................................................II
Operating temperature range.........................................................................................-10 °C...+55 °C
Maximum humidity ......................................................................................................................93±3%
Dimensions ....................................................................................................................... 140 x 68 mm
Weight ............................................................................................................................................80 g
The declaration of conformity may be consulted at www.satel.eu/ce
int-pp_en 04/14
