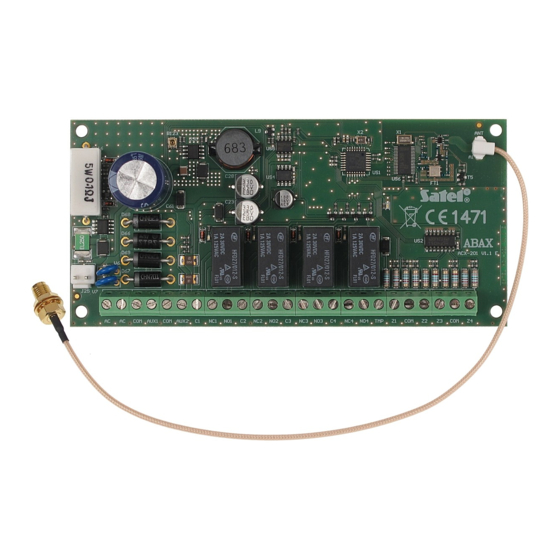

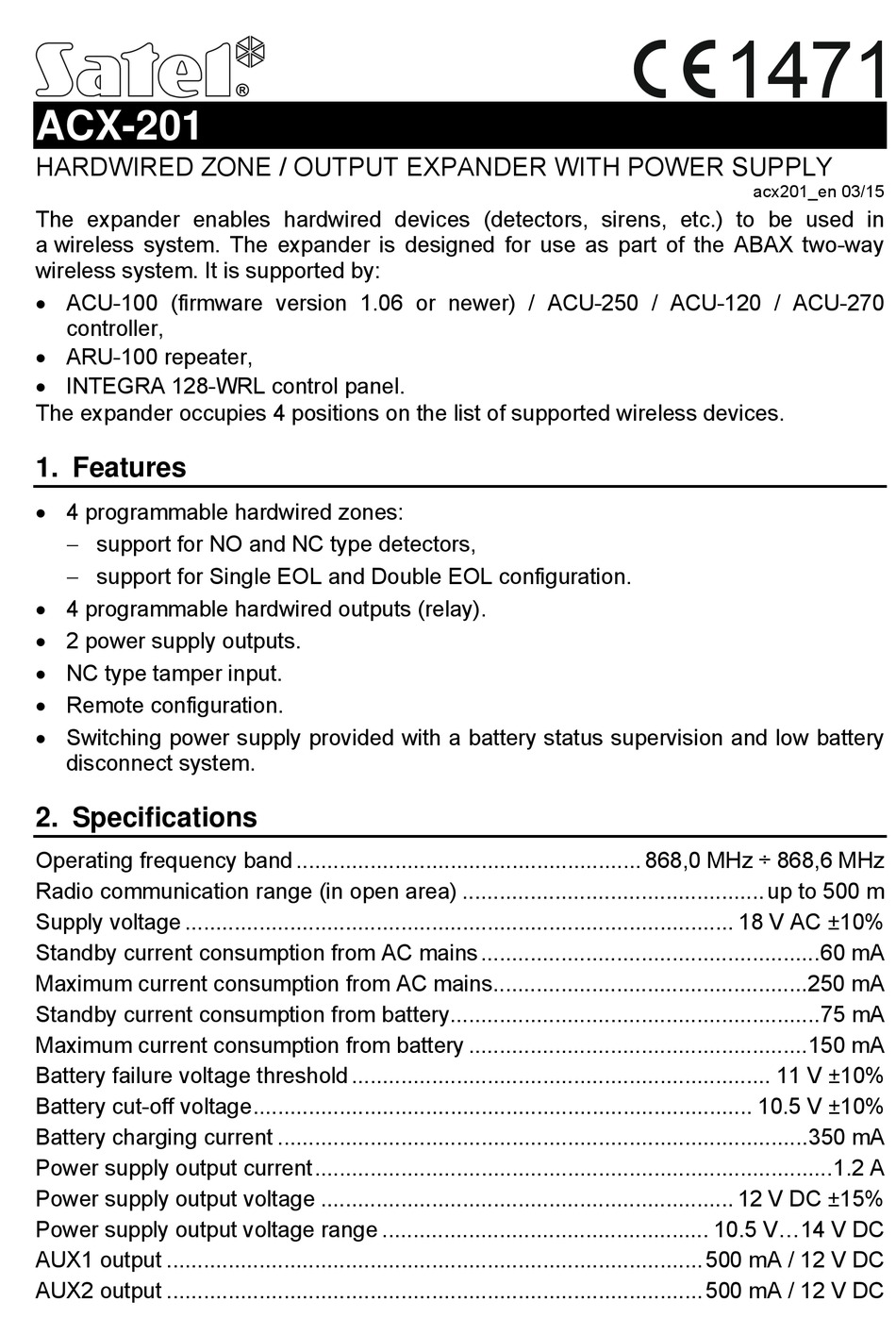

ACX-201
HARDWIRED ZONE / OUTPUT EXPANDER WITH POWER SUPPLY
The expander enables hardwired devices (detectors, sirens, etc.) to be used in
a wireless system. The expander is designed for use as part of the ABAX two-way
wireless system. It is supported by:
ACU-100 (firmware version 1.06 or newer) / ACU-250 / ACU-120 / ACU-270
controller,
ARU-100 repeater,
INTEGRA 128-WRL control panel.
The expander occupies 4 positions on the list of supported wireless devices.
1. Features
4 programmable hardwired zones:
support for NO and NC type detectors,
support for Single EOL and Double EOL configuration.
4 programmable hardwired outputs (relay).
2 power supply outputs.
NC type tamper input.
Remote configuration.
Switching power supply provided with a battery status supervision and low battery
disconnect system.
2. Specifications
Operating frequency band ........................................................ 868,0 MHz ÷ 868,6 MHz
Radio communication range (in open area) ................................................. up to 500 m
Supply voltage ......................................................................................... 18 V AC ±10%
Standby current consumption from AC mains .......................................................60 mA
Maximum current consumption from AC mains...................................................250 mA
Standby current consumption from battery............................................................75 mA
Maximum current consumption from battery .......................................................150 mA
Battery failure voltage threshold .................................................................... 11 V ±10%
Battery cut-off voltage................................................................................. 10.5 V ±10%
Battery charging current ......................................................................................350 mA
Power supply output current....................................................................................1.2 A
Power supply output voltage ................................................................... 12 V DC ±15%
Power supply output voltage range ..................................................... 10.5 V...14 V DC
AUX1 output ....................................................................................... 500 mA / 12 V DC
AUX2 output ....................................................................................... 500 mA / 12 V DC
1471
acx201_en 03/15
Advertisement
Table of Contents
Related Manuals for Satel ACX-201
Summary of Contents for Satel ACX-201
-
Page 1: Specifications
1471 ACX-201 HARDWIRED ZONE / OUTPUT EXPANDER WITH POWER SUPPLY acx201_en 03/15 The expander enables hardwired devices (detectors, sirens, etc.) to be used in a wireless system. The expander is designed for use as part of the ABAX two-way wireless system. It is supported by: ... - Page 2 ACX-201 SATEL Relay contacts rating (resistive load)..........1000 mA / 24 VDC Environmental class according to EN50130-5 .............. II Operating temperature range ..............-10 °C...+55 °C Maximum humidity....................93±3% Electronics board dimensions..............147 x 70 mm Weight ........................130 g 3. Electronics board Fig.
- Page 3 1. Use the ARF-100 tester to make sure that the radio signal level is adequate at the location where the ACX-201 expander is to be installed. If the signal level is lower than 40%, select another place for installation. Sometimes, it is sufficient to shift the device ten or twenty centimeters to obtain a considerable improvement in the signal quality.
- Page 4 ACU-270 controller manual or INTEGRA / VERSA / VERSA Plus control panel programming manual). Hereby, SATEL sp. z o.o., declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at www.satel.eu/ce SATEL sp.
