2.- PRODUCT DESCRIPTION

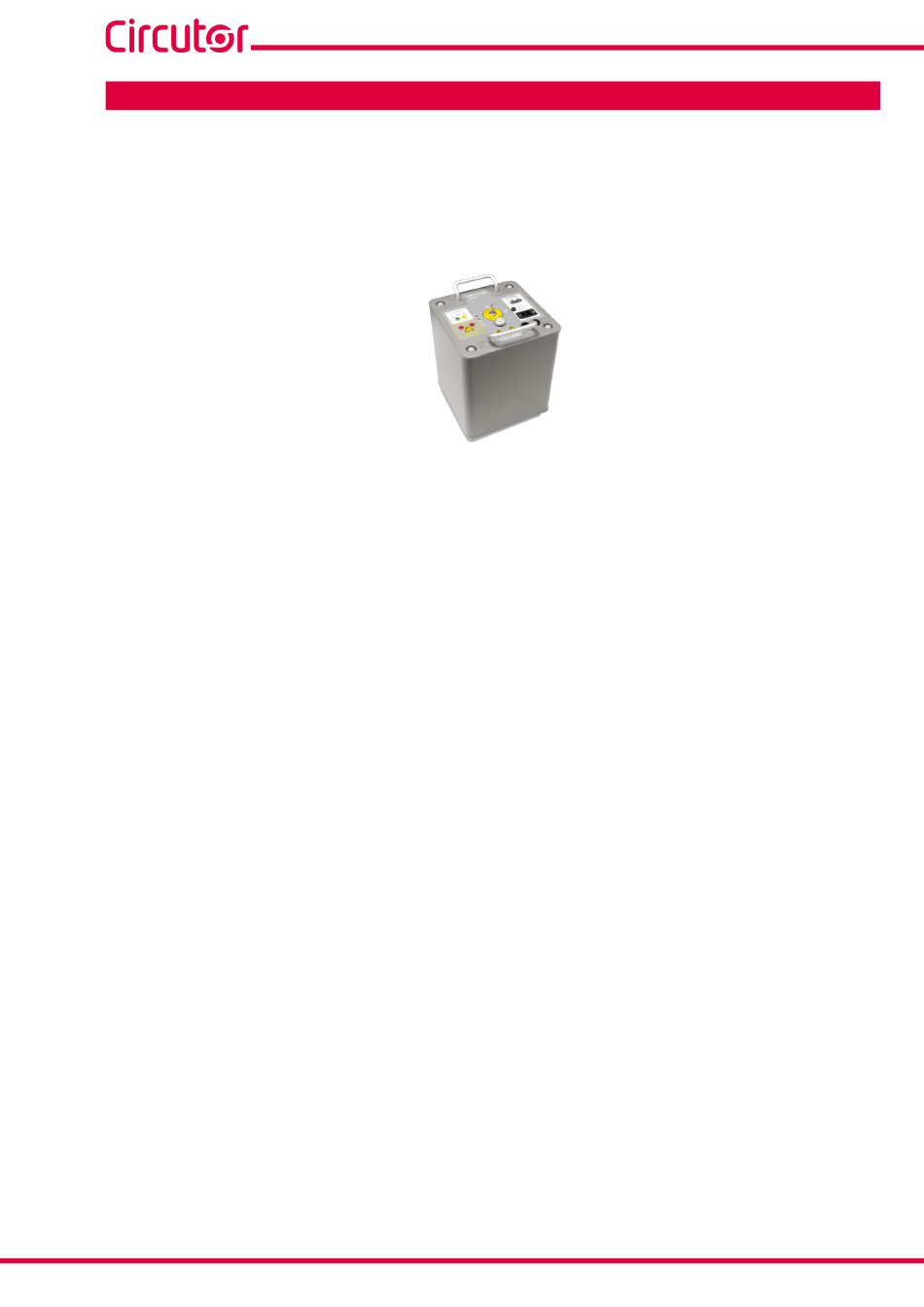

GETEST is an device that measures the step and contact voltages that can appear in transformation
centres, substations and high voltage lines.
To carry out the measurements, the device injects current during a mains cycle (20 ms), providing up
to 50 A for a maximum earth resistance of 10 Ω.
The device roughly calculates the resistance of the ground to be tested.
The device features:
- 1 smartphone to configure and perform all the measurements through the Getest application
- Detection of non-resistive ground and auto-adjustment to measure correctly.
- 1 resistance switch
- 2 indication LEDs
- 1 safety key
(1)
It is also possible to download the application from PlayStore to use it from any other compatible Android device.
8
GETEST
(1)
Instructions Manual
