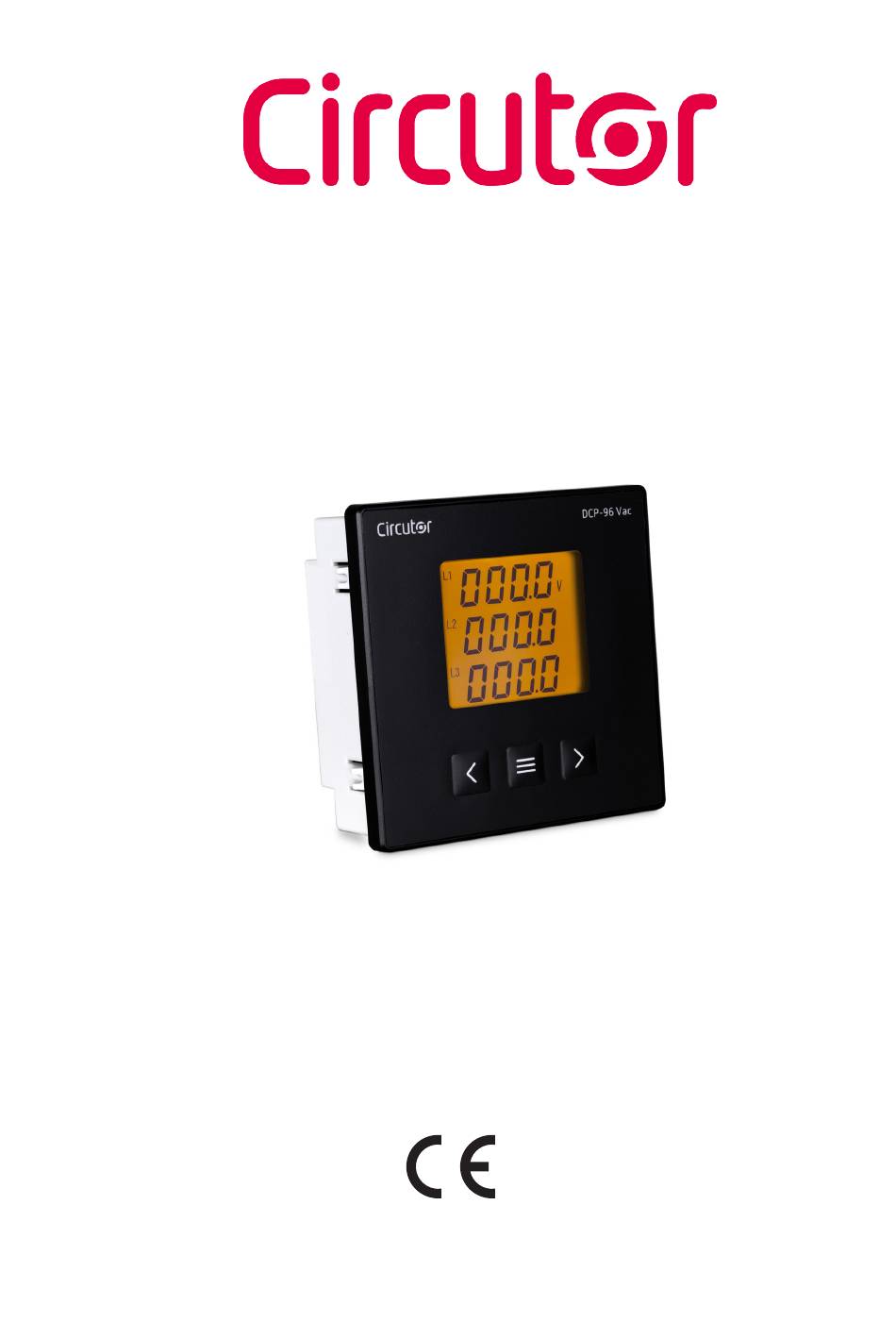

  • Page 1 AC Voltmeter DCP-96 Vac INSTRUCTION MANUAL (M263B01-03-22A)
  • Page 2 DCP-96 Vac Instruction Manual...
  • Page 3: Safety Precautions

    CIRCUTOR, SA reserves the right to make modifications to the device or the unit specifications set out in this instruction manual without prior notice. CIRCUTOR, SA on its web site, supplies its customers with the latest versions of the device specifica- tions and the most updated manuals.
  • Page 4: Table Of Contents

    DCP-96 Vac CONTENTS SAFETY PRECAUTIONS ���������������������������������������������������������������������������������������������������������������������������������������������������������3 DISCLAIMER ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������3 CONTENTS �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������4 REVISION LOG �����������������������������������������������������������������������������������������������������������������������������������������������������������������������5 SYMBOLS �������������������������������������������������������������������������������������������������������������������������������������������������������������������������������5 1�- VERIFICATION UPON RECEPTION ������������������������������������������������������������������������������������������������������������������������������������6 2�- PRODUCT DESCRIPTION �������������������������������������������������������������������������������������������������������������������������������������������������6 3�- DEVICE INSTALLATION ���������������������������������������������������������������������������������������������������������������������������������������������������� 7 3�1�- PRIOR RECOMMENDATIONS ������������������������������������������������������������������������������������������������������������������������������������ 7 3�2�- INSTALLATION ���������������������������������������������������������������������������������������������������������������������������������������������������������8 3�3�- DEVICE TERMINALS �������������������������������������������������������������������������������������������������������������������������������������������������9 3�4�-CONNECTION DIAGRAM �����������������������������������������������������������������������������������������������������������������������������������������...
  • Page 5: Revision Log

    DCP-96 Vac REVISION LOG Table 1: Revision log Date Revision Description 11/19 M263B01-03-19A First Version Changes in the following sections: 02/20 M263B01-03-20A 3.4. - 7. Changes in the following sections: 04/21 M263B01-03-21A Changes in the following sections: 05/21 M263B01-03-21B Changes in the following sections:...
  • Page 6: 1�- Verification Upon Reception

    If any problem is noticed upon reception, immediately contact the transport com- pany and/or CIRCUTOR’s after-sales service 2.- PRODUCT DESCRIPTION The DCP-96 Vac is a device designed to measure and display the voltage and the frequency AC three- phase. The device features:...
  • Page 7: 3�- Device Installation

    The DCP-96 Vac device must be installed by authorised and qualified staff. The power supply plug must be disconnected and measurement systems switched off before handling, altering the connections or replacing the device.
  • Page 8: 3�2�- Installation

    DCP-96 Vac 3�2�- INSTALLATION Terminals, opening covers or removing elements can expose parts that are hazard- ous to the touch while the device is powered. Do not use the device until it is fully installed. The device should be installed inside an electric panel or enclosure, and panel-mounted.
  • Page 9: 3�3�- Device Terminals

    An incorrect type of con- nection or an error in phase sequence may cause measurement errors. 3�3�- DEVICE TERMINALS Table 4: List of DCP-96 Vac terminals� Device terminals 1: L/+, Power supply...
  • Page 10: 3�4�-Connection Diagram

    DCP-96 Vac 3�4�-CONNECTION DIAGRAM 3�4�1�- MEASURING THREE-PHASE NETWORKS WITH A 4-WIRE CONNECTION Alimentación Auxiliar Power Supply CARGA / LOAD Figure 5: Measuring three-phase networks with a 4-wire connection� Instruction Manual...
  • Page 11: 3�4�2�- Measuring Three-Phase Networks With A 3-Wire Connection

    DCP-96 Vac 3�4�2�- MEASURING THREE-PHASE NETWORKS WITH A 3-WIRE CONNECTION Alimentación Auxiliar Power Supply CARGA / LOAD Figure 6: Measuring three-phase networks with a 3-wire connection Instruction Manual...
  • Page 12: 4�- Operation

    Icon Description Configuration screen 4-wire connection error. 4�2�- KEYBOARD FUNCTIONS The DCP-96 Vac has 3 keys that allow you to browse through and program the device, Table 6 Table 7  Display screens: Table 6: Keyboard function: Display screens� Keystroke Previous screen.
  • Page 13 DCP-96 Vac  Configuration screens: Table 7: Keyboard function: Configuration screens� Keystroke Browses through the different menu screens. Browses through the different options. Browses through the different menu screens. Browses through the different options. Skips to the next configuration menu.
  • Page 14: 5�- Display

    DCP-96 Vac 5.- DISPLAY The DCP-96 Vac has up to 3 display screens, depending on the measurement system, see “6.1.1.- MEASUREMENT SYSTEM” 5�1�- SINGLE-PHASE NETWORK MEASURING The DCP-96 Vac has 2 display screens in the single-phase network measurement system, see...
  • Page 15: 5�2�- Three-Phase Network Measure With 4 Wire

    DCP-96 Vac 5�2�- THREE-PHASE NETWORK MEASURE WITH 4 WIRE The DCP-96 Vac has 3 display screens in the three-phase network measurement system with a 4 wire connection, see , Table 9 Use the keys to browse through the different screens.
  • Page 16: 5�3�- Three-Phase Network Measure With 3 Wire

    DCP-96 Vac 5�3�- THREE-PHASE NETWORK MEASURE WITH 3 WIRE The DCP-96 Vac has 2 display screens in the three-phase network measurement system with a 3 wire connection, see , Table 10 Use the keys to browse through the different screens.
  • Page 17: 6�- Configuration

    1002 Software version 1906 Figure 8: DCP-96 Vac configuration menu� From any screen of the configuration menus, if no key is pressed for 1 minute, the device leaves the configuration menu and returns to the display screen. Note: In you can see the complete configuration menu.
  • Page 18: 6�1�- Configuration Of The Input

    DCP-96 Vac Note: The password can be modified, see � “6.2.4.- ACCESS PASSWORD” With a long keystroke (>3s), press to validate the data. If the password entered is incorrect, the message will appear for a few seconds and the device...
  • Page 19: 6�1�2�- Primary Voltage

    DCP-96 Vac 6�1�2�- PRIMARY VOLTAGE This screen is used to configure the value of the primary voltage. inpt inpt >3s pt 1 pt 1 0380 0380 With a long keystroke (>3s), press to access the value’s configuration. Use the key to modify the value of the flashing digit.
  • Page 20: 6�1�4�- Save Configuration

    DCP-96 Vac 6�1�4�- SAVE CONFIGURATION This screen is used to save the device’s configuration. SAuE SAuE >3s With a long keystroke (>3s), press to access the value’s configuration. Use the keys to browse through the different options: , to not save the configuration.
  • Page 21: 6�2�- System Configuration

    DCP-96 Vac 6�2�- SYSTEM CONFIGURATION , shows the system configuration menu. Figure 11 >3s Cyclic display >3s liGH LiGH Display backlight 0000 0000 >3s diSP diSp Initial display screen >3s CodE CodE Access password 0001 0001 >3s Light alarm SAuE SAuE >3s...
  • Page 22: 6�2�2�- Display Backlight

    DCP-96 Vac 6�2�2�- DISPLAY BACKLIGHT The time that the display backlight will stay lit in seconds if no key is pressed is programmed on this screen. >3s liGH LiGH 0000 0000 With a long keystroke (>3s), press to access the value’s configuration.
  • Page 23: 6�2�4�- Access Password

    DCP-96 Vac 6�2�4�- ACCESS PASSWORD This screen is used to configure the value of the password used to access the configuration menu. >3s CodE CodE 0001 0001 With a long keystroke (>3s), press to access the value’s configuration. When the desired value is shown on the screen, press the keys to skip the digit.
  • Page 24: 6�2�6�- Save Configuration

    DCP-96 Vac 6�2�6�- SAVE CONFIGURATION This screen is used to save the device’s configuration. SAuE SAuE >3s With a long keystroke (>3s), press to access the value’s configuration. Use the keys to browse through the different options: , to not save the configuration.
  • Page 25: 7�- Technical Features

    DCP-96 Vac 7.- TECHNICAL FEATURES AC Power supply Rated voltage 80 ... 270 V ~ Frequency 50 / 60 Hz Consumption 1 ... 4 VA Installation category CAT III 300V DC Power supply Rated voltage 80 ... 270 V 18 ... 36 V Consumption 0.5 ...0.7 W...
  • Page 26 Electromagnetic compatibility (EMC) Part 4-11: Testing and measurement techniques� IEC 61000-4-11 Voltage dips, short interruptions and voltage variations immunity tests Safety requirements for electrical equipment for measurement, control and laboratory IEC 61010-1 use� Part 1: General requirements� 4(max) 41.5 Figure 12: Dimensions of the DCP-96 Vac� Instruction Manual...
  • Page 27: 8�- Maintenance And Technical Service

    DCP-96 Vac 8.- MAINTENANCE AND TECHNICAL SERVICE In the case of any query in relation to device operation or malfunction, please contact the CIRCUTOR, SA Technical Support Service. Technical Assistance Service Vial Sant Jordi, s/n, 08232 - Viladecavalls (Barcelona) Tel: 902 449 459 ( España) / +34 937 452 919 (outside of Spain) email: sat@circutor.com...
  • Page 28: 10�- Ce Certificate

    DCP-96 Vac 10.- CE CERTIFICATE Instruction Manual...
  • Page 29 DCP-96 Vac Instruction Manual...
  • Page 30 DCP-96 Vac Instruction Manual...
  • Page 31: Annex A.- Configuration Menu

    DCP-96 Vac ANNEX A.- CONFIGURATION MENU ProG CodE 2206 CodE >3s >3s 2207 0000 0001 2208 >3s inpt inpt inpt inpt >3s Measurement system >3s inpt inpt >3s Primary voltage pt 1 pt 1 0380 0380 inpt inpt >3s Secondary voltage...
  • Page 32 CIRCUTOR, SA Vial Sant Jordi, s/n 08232 - Viladecavalls (Barcelona) Tel: (+34) 93 745 29 00 - Fax: (+34) 93 745 29 14 www.circutor.es central@circutor.com...
