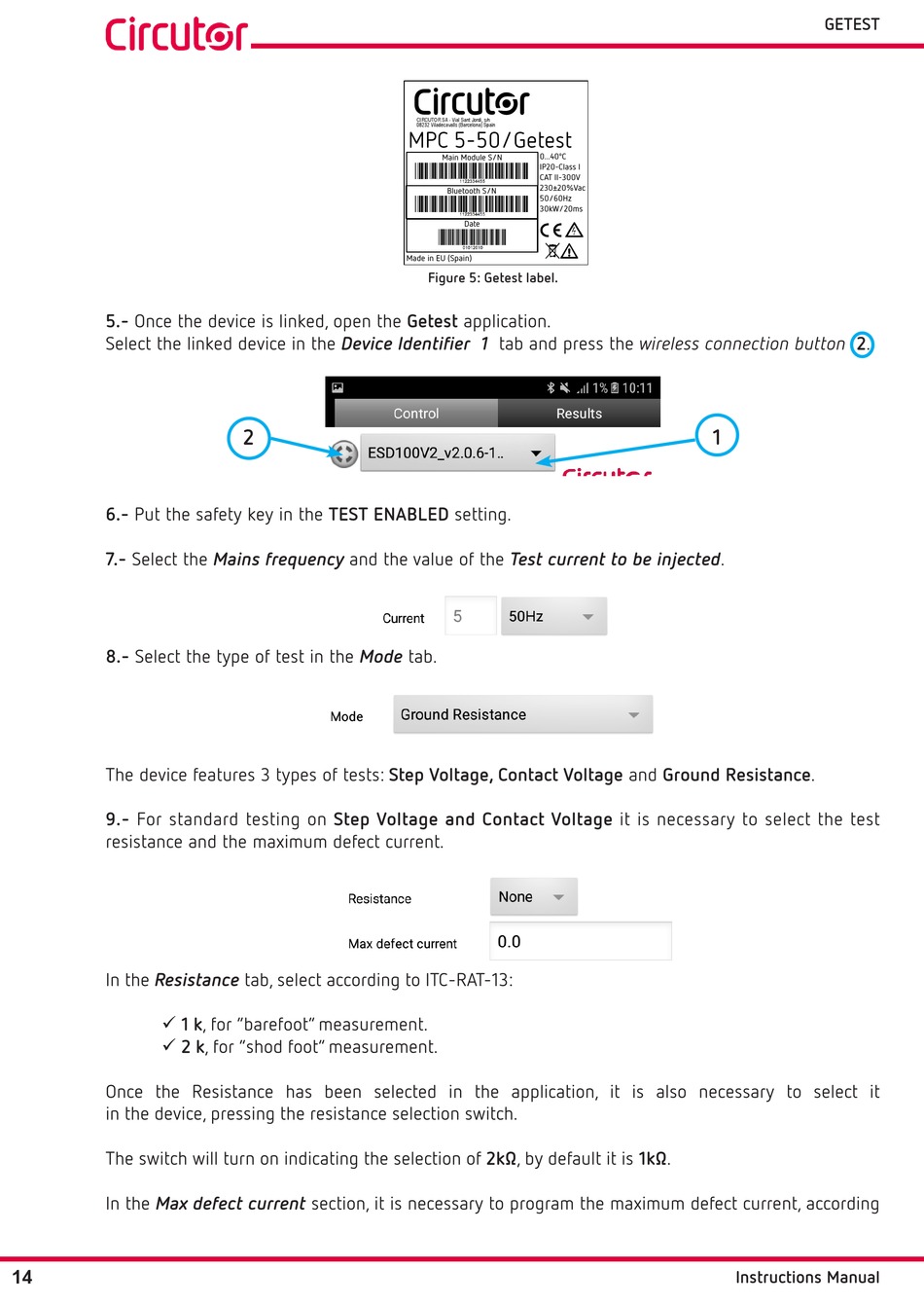

Circutor GETEST MPC-5 Instruction Manual page 14

5�- Once the device is linked, open the Getest application.
Select the linked device in the Device Identifier 1 tab and press the wireless connection button 2.
6�- Put the safety key in the TEST ENABLED setting.
7�- Select the Mains frequency and the value of the Test current to be injected.
8�- Select the type of test in the Mode tab.
The device features 3 types of tests: Step Voltage, Contact Voltage and Ground Resistance.
9�- For standard testing on Step Voltage and Contact Voltage it is necessary to select the test
resistance and the maximum defect current.
In the Resistance tab, select according to ITC-RAT-13:
 1 k, for "barefoot" measurement.
 2 k, for "shod foot" measurement.
Once the Resistance has been selected in the application, it is also necessary to select it
in the device, pressing the resistance selection switch.
The switch will turn on indicating the selection of 2kΩ, by default it is 1kΩ.
In the Max defect current section, it is necessary to program the maximum defect current, according
