Chapter 5
))))))))))))))))))))))))))))))))))))))))))))
5.3.6

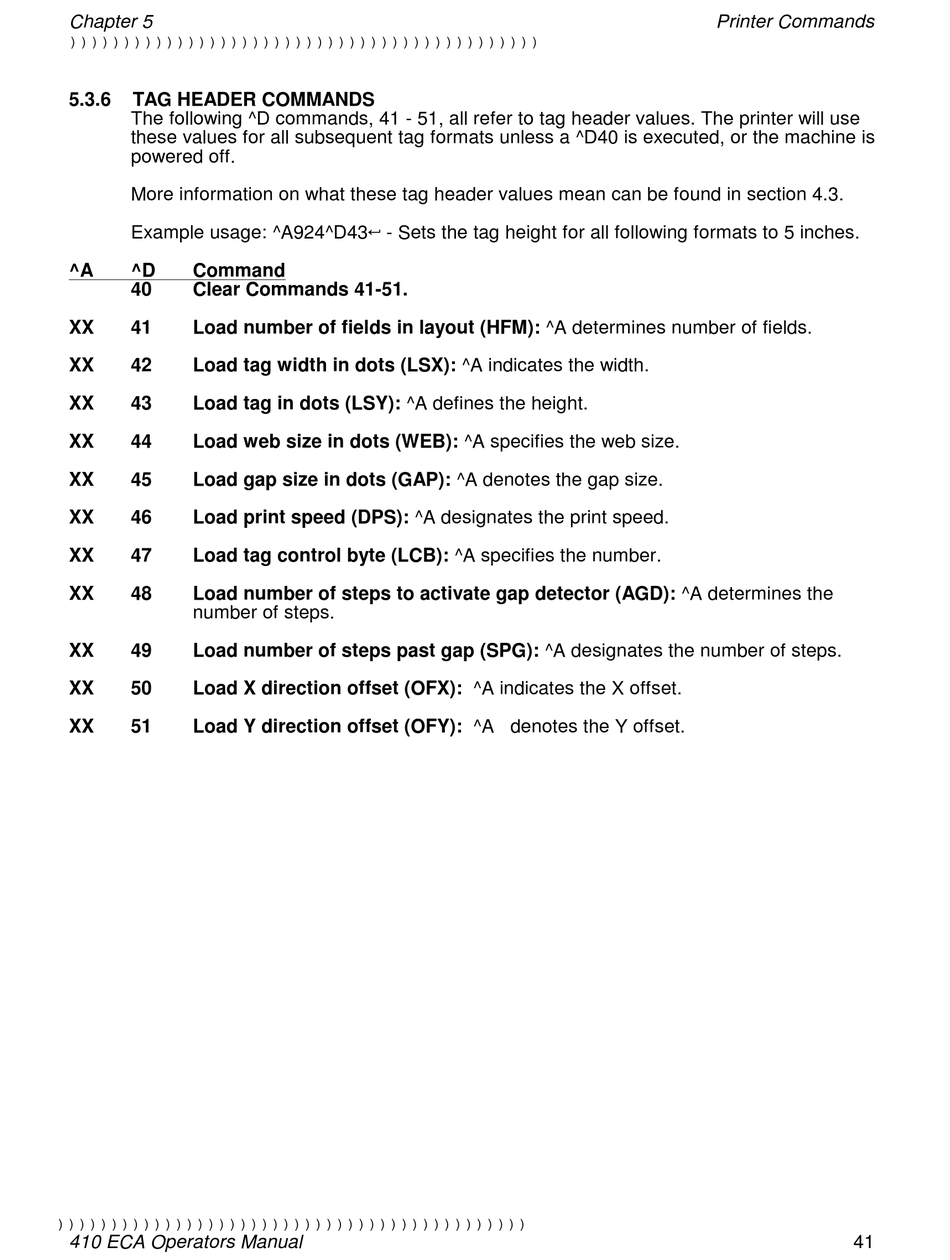

TAG HEADER COMMANDS

The following ^D commands, 41 - 51, all refer to tag header values. The printer will use
these values for all subsequent tag formats unless a ^D40 is executed, or the machine is
powered off.
More information on what these tag header values mean can be found in section 4.3.
Example usage: ^A924^D43 - Sets the tag height for all following formats to 5 inches.
^A ^D Command
40 Clear Commands 41-51.
XX 41 Load number of fields in layout (HFM): ^A determines number of fields.
XX 42 Load tag width in dots (LSX): ^A indicates the width.
XX 43 Load tag in dots (LSY): ^A defines the height.
XX 44 Load web size in dots (WEB): ^A specifies the web size.
XX 45 Load gap size in dots (GAP): ^A denotes the gap size.
XX 46 Load print speed (DPS): ^A designates the print speed.
XX 47 Load tag control byte (LCB): ^A specifies the number.
XX 48 Load number of steps to activate gap detector (AGD): ^A determines the
number of steps.
XX 49 Load number of steps past gap (SPG): ^A designates the number of steps.
XX 50 Load X direction offset (OFX): ^A indicates the X offset.
XX 51 Load Y direction offset (OFY): ^A denotes the Y offset.
))))))))))))))))))))))))))))))))))))))))))))
