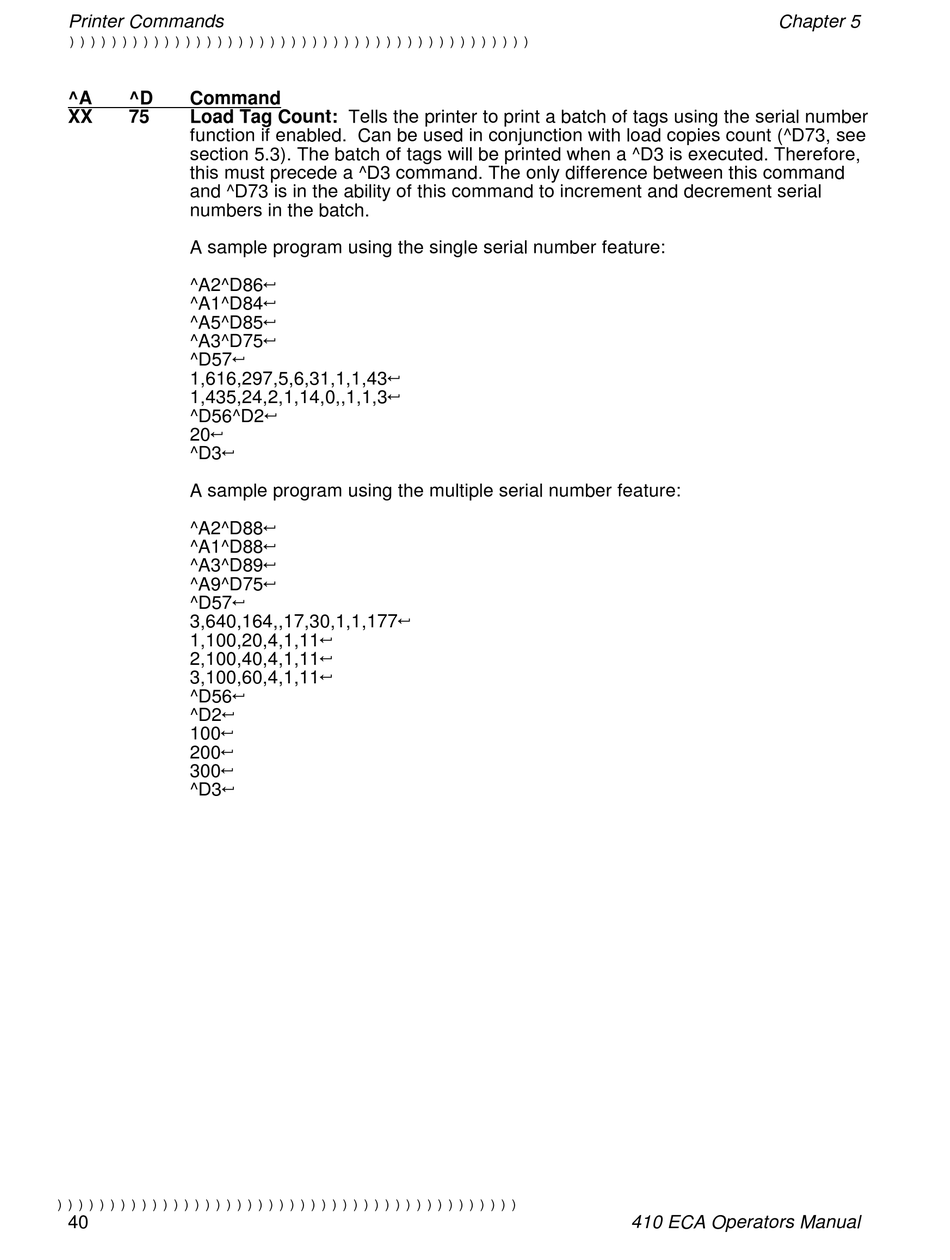

Microcom 410 ECA Operator's Manual page 46

Printer Commands
))))))))))))))))))))))))))))))))))))))))))))
^A ^D Command
XX 75 Load Tag Count: Tells the printer to print a batch of tags using the serial number
function if enabled. Can be used in conjunction with load copies count (^D73, see
section 5.3). The batch of tags will be printed when a ^D3 is executed. Therefore,
this must precede a ^D3 command. The only difference between this command
and ^D73 is in the ability of this command to increment and decrement serial
numbers in the batch.
A sample program using the single serial number feature:
^A2^D86
^A1^D84
^A5^D85
^A3^D75
^D57
1,616,297,5,6,31,1,1,43
1,435,24,2,1,14,0,,1,1,3
^D56^D2
20
^D3
A sample program using the multiple serial number feature:
^A2^D88
^A1^D88
^A3^D89
^A9^D75
^D57
3,640,164,,17,30,1,1,177
1,100,20,4,1,11
2,100,40,4,1,11
3,100,60,4,1,11
^D56
^D2
100
200
300
^D3
))))))))))))))))))))))))))))))))))))))))))))
40
Chapter 5
410 ECA Operators Manual
