Printer Commands
))))))))))))))))))))))))))))))))))))))))))))
5.3.3

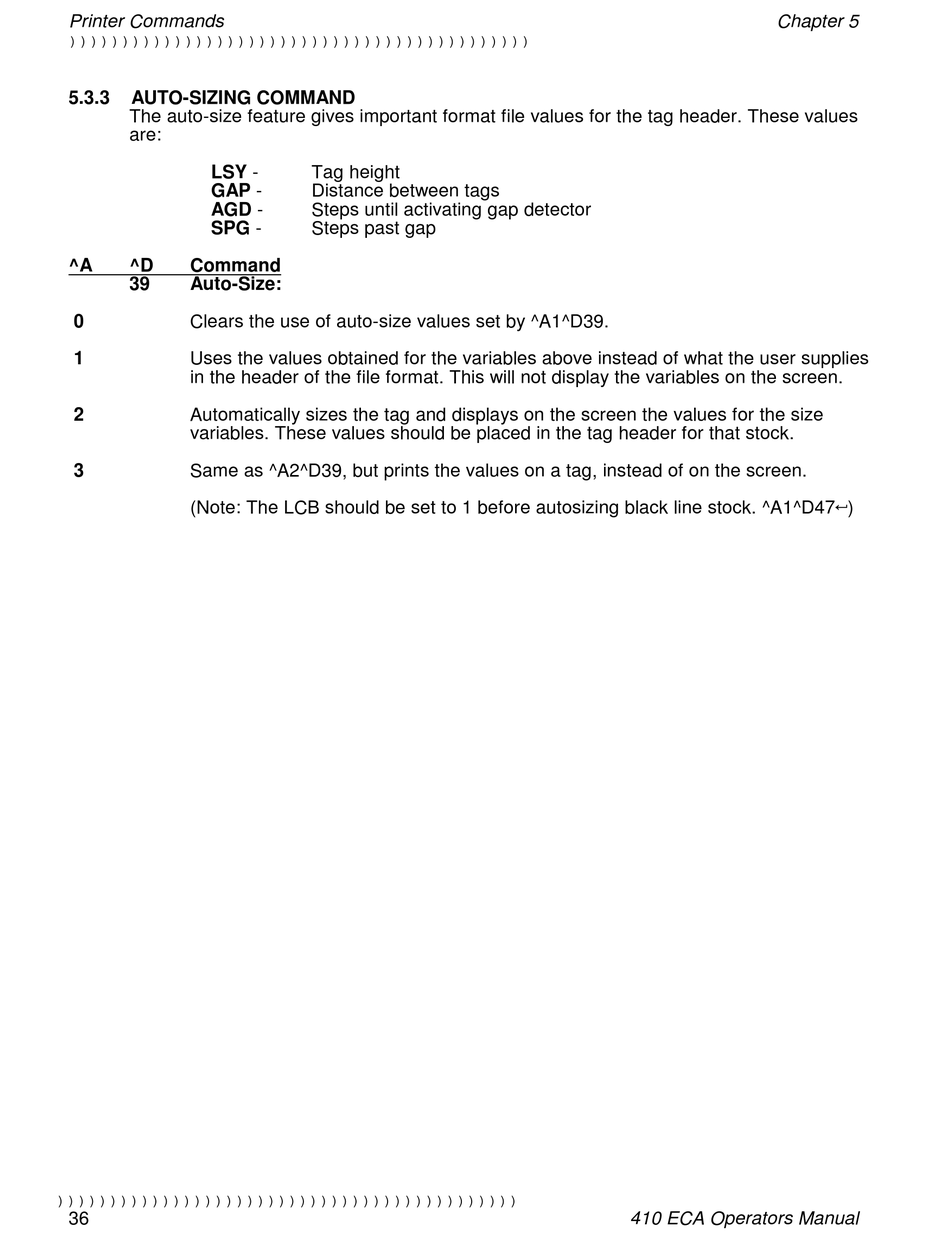

AUTO-SIZING COMMAND

The auto-size feature gives important format file values for the tag header. These values
are:
LSY -
GAP -
AGD -
SPG -
^A ^D Command
39 Auto-Size:
0 Clears the use of auto-size values set by ^A1^D39.
1 Uses the values obtained for the variables above instead of what the user supplies
in the header of the file format. This will not display the variables on the screen.
2 Automatically sizes the tag and displays on the screen the values for the size
variables. These values should be placed in the tag header for that stock.
3 Same as ^A2^D39, but prints the values on a tag, instead of on the screen.
(Note: The LCB should be set to 1 before autosizing black line stock. ^A1^D47 )
))))))))))))))))))))))))))))))))))))))))))))
36
Tag height
Distance between tags
Steps until activating gap detector
Steps past gap
