Chapter 5
))))))))))))))))))))))))))))))))))))))))))))
5.3.2

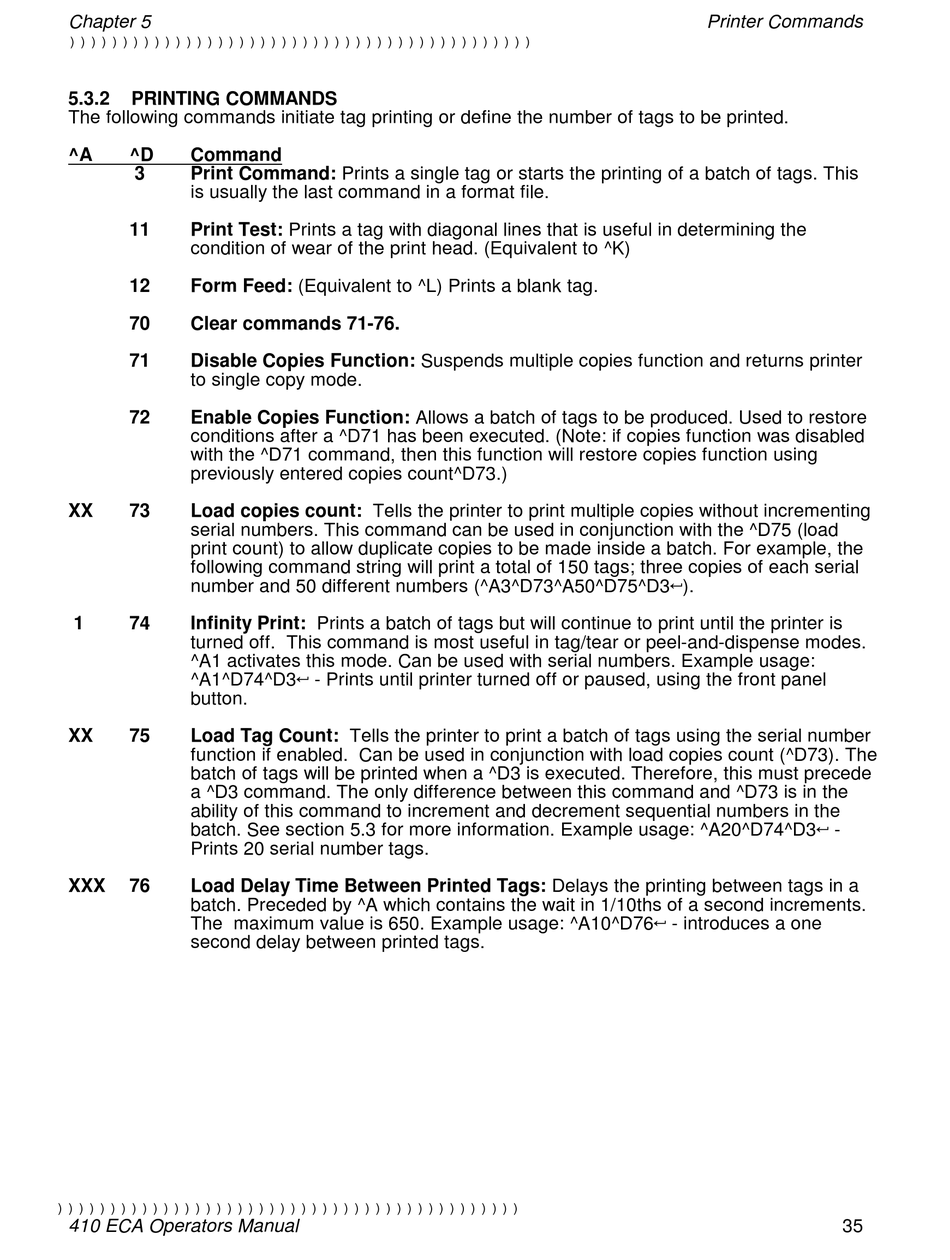

PRINTING COMMANDS

The following commands initiate tag printing or define the number of tags to be printed.
^A ^D Command
3 Print Command: Prints a single tag or starts the printing of a batch of tags. This
is usually the last command in a format file.
11 Print Test: Prints a tag with diagonal lines that is useful in determining the
condition of wear of the print head. (Equivalent to ^K)
12 Form Feed: (Equivalent to ^L) Prints a blank tag.
70 Clear commands 71-76.
71 Disable Copies Function: Suspends multiple copies function and returns printer
to single copy mode.
72 Enable Copies Function: Allows a batch of tags to be produced. Used to restore
conditions after a ^D71 has been executed. (Note: if copies function was disabled
with the ^D71 command, then this function will restore copies function using
previously entered copies count^D73.)
XX 73 Load copies count: Tells the printer to print multiple copies without incrementing
serial numbers. This command can be used in conjunction with the ^D75 (load
print count) to allow duplicate copies to be made inside a batch. For example, the
following command string will print a total of 150 tags; three copies of each serial
number and 50 different numbers (^A3^D73^A50^D75^D3 ).
1 74 Infinity Print: Prints a batch of tags but will continue to print until the printer is
turned off. This command is most useful in tag/tear or peel-and-dispense modes.
^A1 activates this mode. Can be used with serial numbers. Example usage:
^A1^D74^D3 - Prints until printer turned off or paused, using the front panel
button.
XX 75 Load Tag Count: Tells the printer to print a batch of tags using the serial number
function if enabled. Can be used in conjunction with load copies count (^D73). The
batch of tags will be printed when a ^D3 is executed. Therefore, this must precede
a ^D3 command. The only difference between this command and ^D73 is in the
ability of this command to increment and decrement sequential numbers in the
batch. See section 5.3 for more information. Example usage: ^A20^D74^D3 -
Prints 20 serial number tags.
XXX 76 Load Delay Time Between Printed Tags: Delays the printing between tags in a
batch. Preceded by ^A which contains the wait in 1/10ths of a second increments.
The maximum value is 650. Example usage: ^A10^D76 - introduces a one
second delay between printed tags.
))))))))))))))))))))))))))))))))))))))))))))
