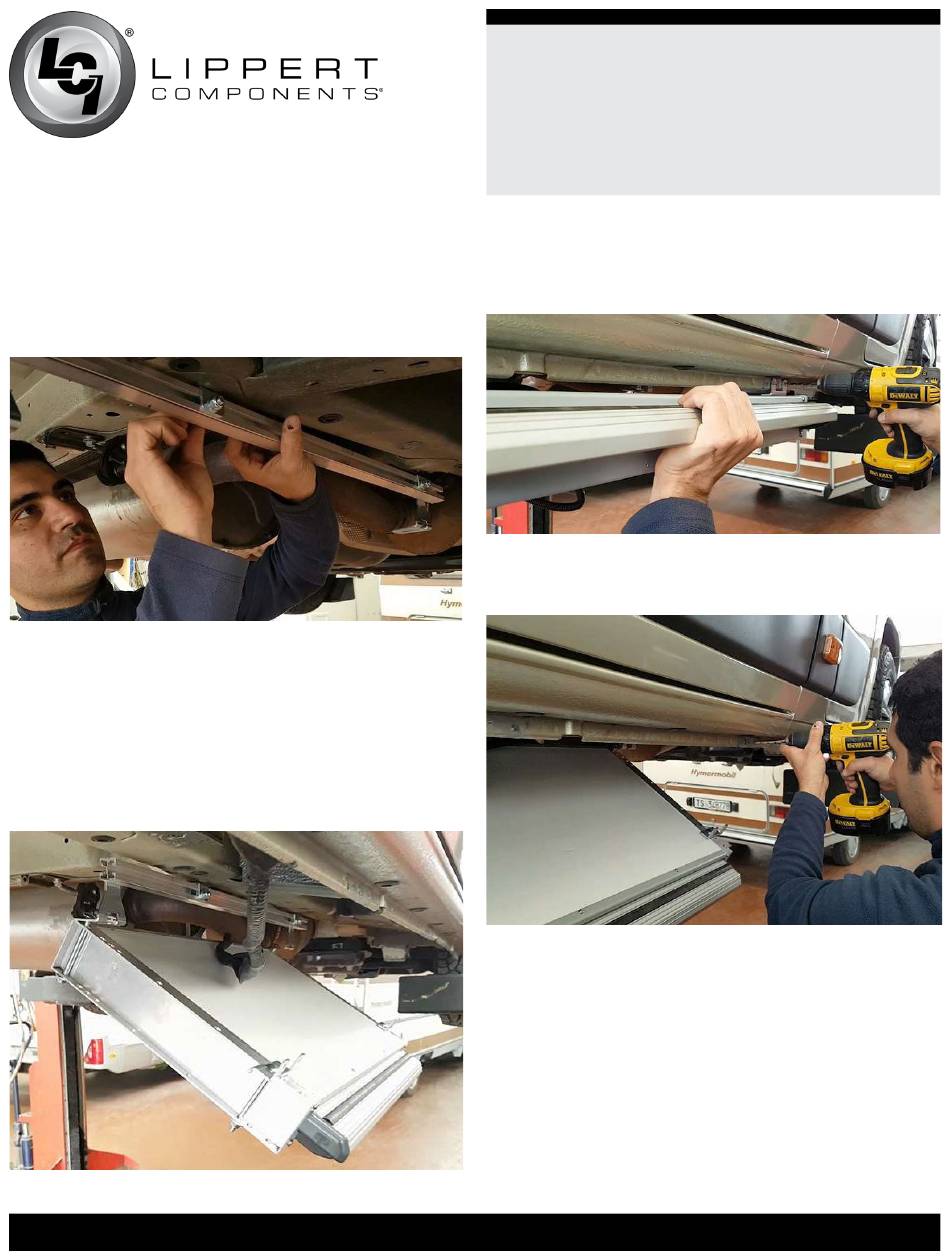

7. Repeat for other insert.
8. Install the pre-assembled aluminum rear channel onto
the chassis with the hex head flange screws tightened into
the inserts (Fig.4).
Fig.4
9. Slide the rear bolts into the rear brackets on the pre-
assembled channel secured to the chassis. The front of the
step will hang down prior to being attached (Fig.5).
10. Route the step wiring inside the trailer and secure
the step switch in a suitable position to avoid accidentally
turning it on. Make sure the buzzer is filtered. See Wiring
Diagram.
Fig.5
lci1.com
574-537-8900
Innolight Sliding
Electric Step
Installation and Owner's Manual
(For Aftermarket Applications)
11. Use the front brackets to determine the locations for
7/32
") pilot holes for the front bracket (Fig.6).
drilling 5 mm (
Fig.6
12. Enlarge the pilot holes with a 6.5 mm (
Fig.7
5
CCD-0002550
1/4
") bit (Fig.7).
Rev: 11.18.19
