Air Ride
Installation and Owner's Manual
(For Aftermarket Applications)
Air Ride
Installation and
Owner's Manual
(For Aftermarket Applications)
Air Ride Pin Box Kits
Air Ride Pin Box Kits
2
Part #
Part #
Description
Description
2
155925

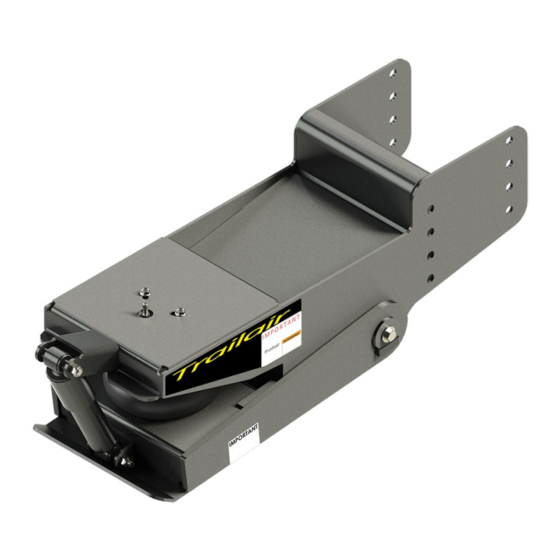

21K L03 Air Ride Pin Box
2
158778
21K L05 Air Ride Pin Box
2
158777
21K L07 Air Ride Pin Box
3
179879
18K M15 Air Ride Pin Box
4
155943
21K M19 Air Ride Pin Box
4
5
6
6
1
CCD-0001741
Pin Box
™
Pin Box
TM
Rev: 10.08.19
