Summary of Contents for Aseptico AEU-350

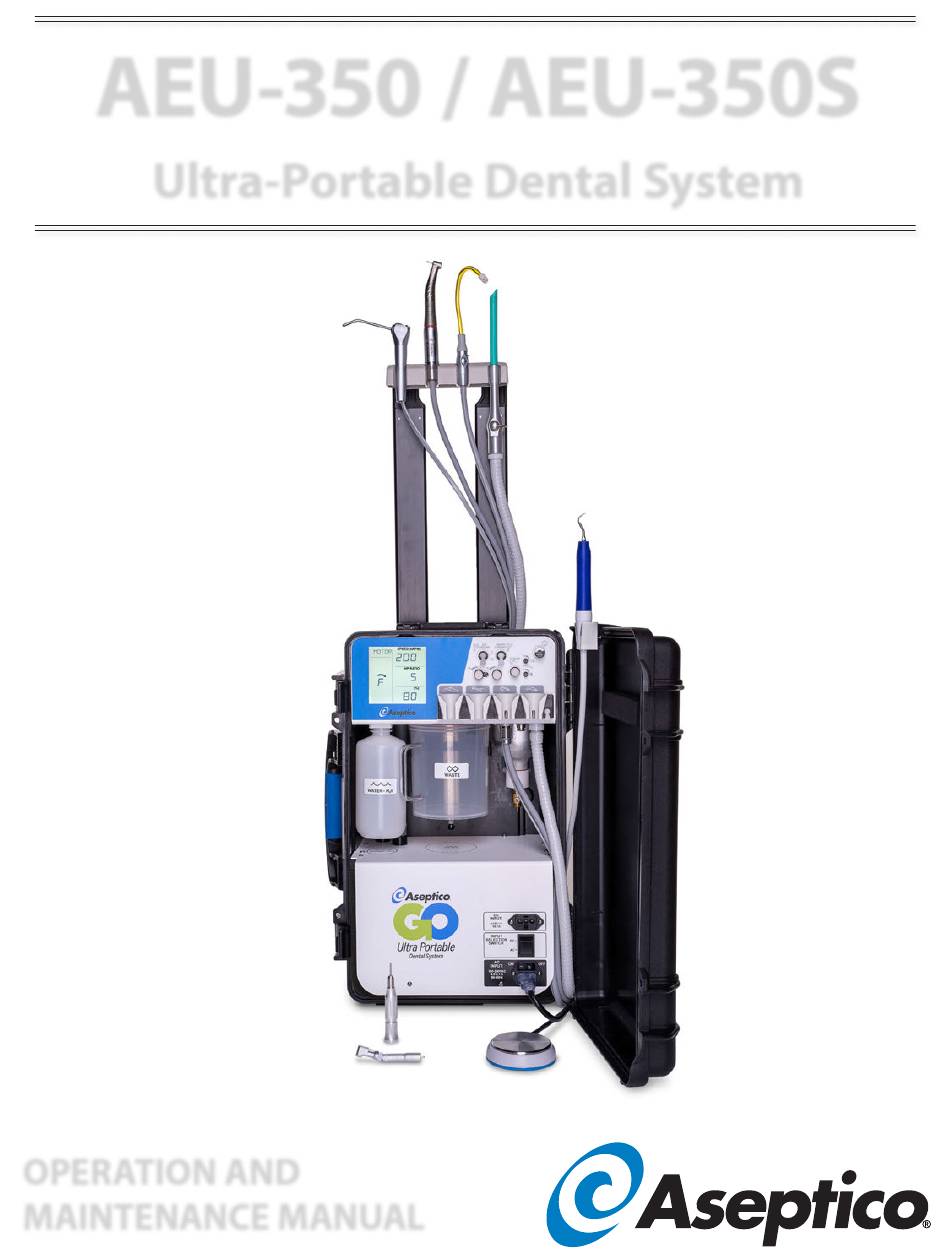

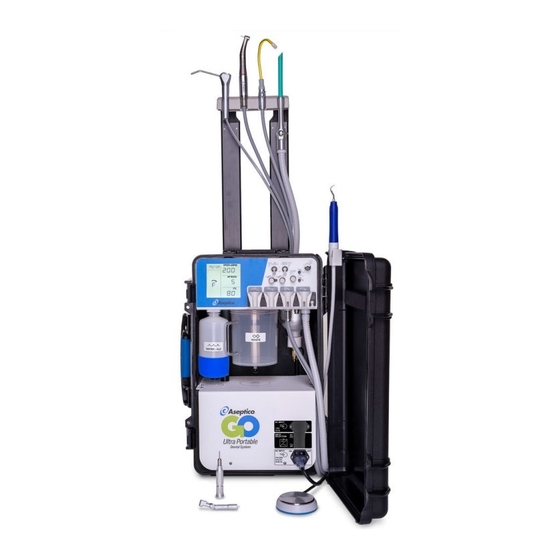

  • Page 1 AEU-350 / AEU-350S Ultra-Portable Dental System (AHP-72MK-FO)* (Scaler included with AEU-350S)* (AHP-101)* (AHP-53)* *Shown with optional equipment OPERATION AND MAINTENANCE MANUAL...
  • Page 2: Electromagnetic Compatibility

    AEU-350 / AEU-350S ! SAFETY PRECAUTIONS Aseptico accepts no liability for direct or consequential injury or dam- s WARNING: Do not use an ultrasonic scaler dry. If used dry, the age resulting from improper use, arising in particular through the Instrument tip will heat immediately.
  • Page 3: Table Of Contents

    AEU-350 / AEU-350S Congratulations! TABLE OF CONTENTS ELECTROMAGNETIC COMPATIBILITY Your new Aseptico® GO AEU-350 / AEU-350S system is the finest ultra-portable electric dental system available to the dental profes- INTENDED USE sion. The AEU-350S includes an ultrasonic scaler with irrigation, and the AEU-350 includes an auxiliary water port.
  • Page 4: Package Contents

    AEU-350 / AEU-350S PACKAGE CONTENTS q AEU-350 Unit (P/N 120426) q Micro-motor (P/N AE-242SC-40) q Syringe (P/N TA-90D) (permanently attached to unit) q Footswitch (P/N AE-7PM) q Syringe Tip (P/N TA-1) q Operation and Maintenance Manual (P/N 421222) q HVE (High-Volume Ejector) Valve and...
  • Page 5: Sold Separately

    AEU-350 / AEU-350S PACKAGE CONTENTS SOLD SEPARATELY q Waste Collection Tank (P/N 330811) q 4-Instrument Holder (P/N AA-350-HLD4) q 24 VDC Battery Power Cord (P/N AA-350-BATCAB) (Optional equipment) q 4-Instrument Holder Pouch (P/N 410222) q Water Supply Bottle (P/N 730786) q Scaler Holder (P/N AA-350-HLD1)
  • Page 6 AEU-350 / AEU-350S  The EXPANDED SETUP has the advantage of making the instruments easy to reach, even from a standing position. It has the disadvantage of not having automatic vacuum actuators in the HVE and saliva ejector secondary instrument holders, requiring you to toggle the Automatic Holder Lockout switch when suction is needed.
  • Page 7 AEU-350 / AEU-350S  The COMPACT SETUP has the advantages of a quicker setup and automatically actuated HVE and saliva ejector instrument holders. Electric Motor (High Volume Ejector) (Handpiece not included) Saliva Ejector (Low Volume Ejector) Air/Water Syringe Scaler Electric Motor / Scaler Settings...
  • Page 8: System Setup

    Position the unit so that you can see the bottom side of the bulkhead. Note that the syringe lines  are permanently con- nected to the bulkhead. The AEU-350 features an auxiliary water port  , and the AEU-350S features a scaler which is per- manently attached at this location  ...
  • Page 9 AEU-350 / AEU-350S Plug the electric motor cord  into its socket in the bulkhead. Lift up the unit to the vertical position with the door open. Place the footswitch  where it is convenient to operate.  The plug can only be inserted into the socket in one orientation.
  • Page 10 AEU-350 / AEU-350S AEU-350S only: Place the front lip  of the scaler holder on 11 Fill the water bottle  with water (never saline). Insert the the edge of the door then rotate until the back lip  locks into uptake tube ...
  • Page 11 AEU-350 / AEU-350S 13 Insert the syringe tip  into the syringe, a 1:1 or 1:5 handpiece 15 Optional 24VDC Operation: Unplug the AC power cord  onto the micromotor, and disposable tips onto the saliva and set the input selection switch ...
  • Page 12: Control Panel

    HANDPIECE RATIO — Press this segment of the screen to alternate between 1:5 and 1:1 handpiece ratios: MOTOR / SCALER MODE — The AEU-350 has only one mode, motor mode; the AEU-350S has both motor and scaler modes RATIO SETTING NUMBER DISPLAYED available.
  • Page 13: Operation

    AEU-350 / AEU-350S AIR PRESSURE GAUGE — This gauge indicates the system air OPERATION pressure level and should read 70–80 PSI. SYRINGE AIR / WATER — The upper valve controls air flow Footswitch and the lower valve controls water flow to the syringe. Use a small flathead screwdriver to adjust.
  • Page 14: Maintenance And Sterilization

    Motor & Cord Assembly  Call Aseptico at 1-800-426-5913 with any questions on sterilization procedures. CAUTION: The motor is sensitive to shock. Do not drop or impact the motor against a hard surface.
  • Page 15 AEU-350 / AEU-350S STERILIZATION METHODS: Loosely coil the motor cord when autoclaving. Avoid sharply bending the cord. Wrapped Sterilization — Place in an appropriately sized steriliza- tion pouch and seal. Standard autoclaving (Gravity displacement method) Time: 15 min Temperature: 132° C (270° F)
  • Page 16: Repacking

    AEU-350 / AEU-350S Air Filter Replacement REPACKING Remove all water/waste and clean/sterilize the unit as instructed in Maintenance and Sterilization, page 14. Unplug the power cord and coil. If used, unclip the detachable 4-position and scaler instru- ment holders from the case, then retract the handle.
  • Page 17: Troubleshooting

    AEU-350 / AEU-350S TROUBLESHOOTING SYMBOL DESCRIPTIONS Unit does not power up: Consult Instructions For Use • Check power cord connection. Caution – Consult Accompanying Documents • Check that AC-DC input selection switch is in correct position. Type B Equipment Handpiece does not operate: ...
  • Page 18: Warranty

    Aseptico’s Customer Service Department promptly. NOISE LEVEL: 72 dBA @ 3’4” (1 meter) Customer Service will provide instructions, usually directing that the product be returned for service. Shipment to Aseptico and the ENVIRONMENTAL CONDITIONS: cost thereof is always the responsibility of the purchaser.
  • Page 19: Expected Service Life

    AEU-350 / AEU-350S EXPECTED SERVICE LIFE NOTES Seven years ESSENTIAL PERFORMANCE This device does not have ESSENTIAL PERFORMANCE as defined in IEC 60601-1. MESSAGES System Messages When the system is powered on, the software part number and version will be displayed briefly on the touch screen.
  • Page 20 P.O. Box 1548, Woodinville, WA 98072 8333 216th Street S.E., Woodinville, WA 98072 Phone (425) 487-3157 • Toll Free (800) 426-5913 Web: www.aseptico.com Email: info@aseptico.com P/N 421222 • Rev. A • ECO 15212 • 03/2021 • Printed in the USA...
